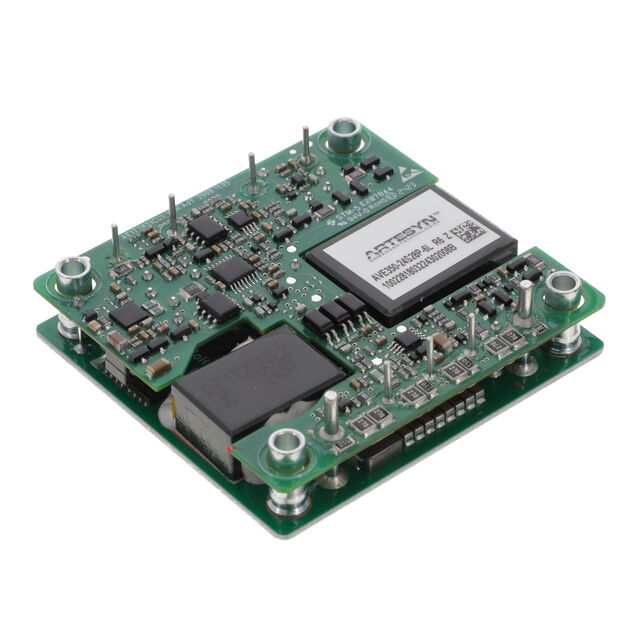

AVE350-24S28-6L
ActiveARTESYN / Advanced Energy
350W, 18 - 36VIN, SINGLE, 28V@12.5A, 93% EFF, HALF BRICK ALUMINUM BOARD, NEGATIVE LOGIC/PIN LENGTH:3.8MM
AVE350-24S28-6L
ActiveARTESYN / Advanced Energy
350W, 18 - 36VIN, SINGLE, 28V@12.5A, 93% EFF, HALF BRICK ALUMINUM BOARD, NEGATIVE LOGIC/PIN LENGTH:3.8MM
Description
General part information
AVE350 Series
Isolated Module DC DC Converter 1 Output 28V 12.5A 18V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AVE350-24S28-6L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 12.5 A |
| Efficiency | 92.7 % |
| Features | UVLO, OCP, Remote On/Off, OVP, OTP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1/2 Brick, 9-DIP Module |
| Power (Watts) | 350 W |
| Size / Dimension Height | 0.5 in |
| Size / Dimension Length | 2.4 in |
| Size / Dimension Width | 2.28 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 18 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 28 V |
