4SVP560M

Active

Panasonic Industrial Automation Sales

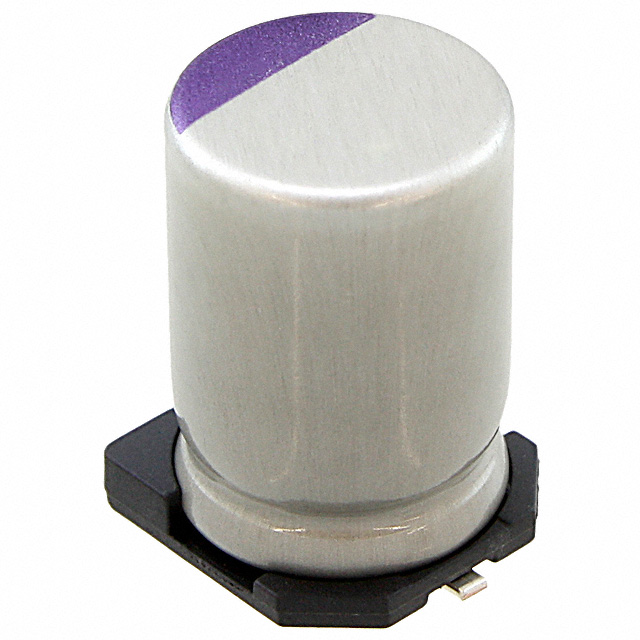

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 560 ΜF, 4 V, RADIAL CAN - SMD, 0.013 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Technical Data Sheet EN +2

4SVP560M

Active

Panasonic Industrial Automation Sales

POLYMER ALUMINIUM ELECTROLYTIC CAPACITOR, 560 ΜF, 4 V, RADIAL CAN - SMD, 0.013 OHM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4SVP560M

Applications	General Purpose
Capacitance	560 µF
ESR (Equivalent Series Resistance)	13 mOhms
Height - Seated (Max) [Max] [z]	12 mm
Height - Seated (Max) [Max] [z]	0.472 "
Lifetime @ Temp.	2000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	4.52 A
Ripple Current @ Low Frequency	226 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Surface Mount Land Size [x]	0.327 "
Surface Mount Land Size [x]	8.3 mm
Surface Mount Land Size [y]	8.3 mm
Surface Mount Land Size [y]	0.327 in
Tolerance	20 %
Type	Polymer
Voltage - Rated	4 V

4SVP Series

Part	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Lifetime @ Temp.	Capacitance	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Tolerance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ripple Current @ Low Frequency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Ripple Current @ High Frequency	Mounting Type	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Panasonic Industrial Automation Sales 4SVP68M	5.3 mm	0.209 in	5.3 mm	0.209 in	2000 Hrs	68 µF	Polymer	5 mm	0.197 "	Radial Can - SMD	20 %	60 mOhms	0.236 in	6 mm	70 mA	General Purpose	105 ░C	-55 °C	1.4 A	Surface Mount	4 V
Panasonic Industrial Automation Sales 4SVP33M	4.3 mm	0.169 in	4.3 mm	0.169 "	2000 Hrs	33 ÁF	Polymer	4 mm	0.157 in	Radial Can - SMD	20 %	200 mOhm	0.217 in	5.5 mm	37 mA	General Purpose	105 ░C	-55 °C	740 mA	Surface Mount	4 V
Panasonic Industrial Automation Sales 4SVP1200M	10.3 mm	0.406 in	10.3 mm	0.406 "	2000 Hrs	1.2 mF	Polymer	10 mm	0.394 in	Radial Can - SMD	20 %	12 mOhms			272 mA	General Purpose	105 ░C	-55 °C	5.44 A	Surface Mount	4 V	12.7 mm	0.5 in
Panasonic Industrial Automation Sales 4SVP150MX	6.6 mm	0.26 in	6.6 mm	0.26 in	2000 Hrs	150 µF	Polymer	6.3 mm	0.248 in	Radial Can - SMD	20 %	40 mOhm	0.236 in	6 mm	90.5 mA	General Purpose	105 ░C	-55 °C	1.81 A	Surface Mount	4 V
Panasonic Industrial Automation Sales 4SVP560M	8.3 mm	0.327 "	8.3 mm	0.327 in	2000 Hrs	560 µF	Polymer	8 mm	0.315 "	Radial Can - SMD	20 %	13 mOhms			226 mA	General Purpose	105 ░C	-55 °C	4.52 A	Surface Mount	4 V	12 mm	0.472 "
Panasonic Industrial Automation Sales 4SVP39M	5.3 mm	0.209 in	5.3 mm	0.209 in	2000 Hrs	39 µF	Polymer	5 mm	0.197 "	Radial Can - SMD	20 %	70 mOhms	0.236 in	6 mm		General Purpose	105 ░C	-55 °C	1.1 A	Surface Mount	4 V
