776230-1

Active

TE Connectivity AMP Connectors

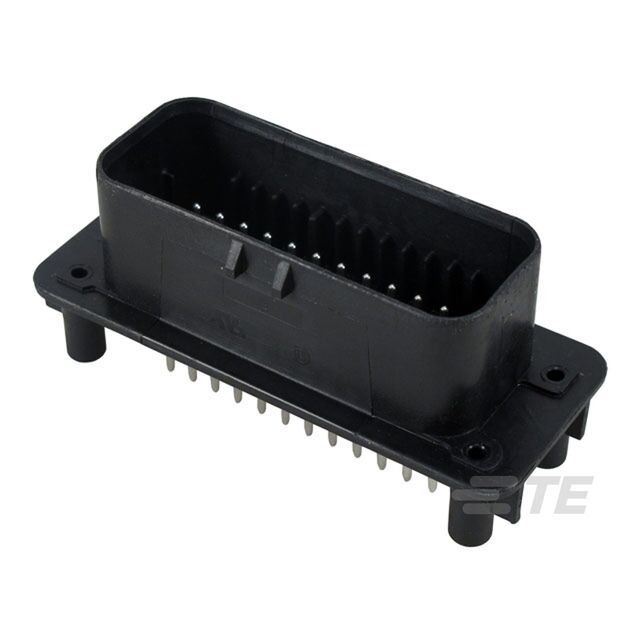

CONN HEADER VERT 35POS 4MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

776230-1

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 35POS 4MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.24
		10	$ 15.90
		32	$ 15.48
		64	$ 14.72
		256	$ 13.19

Description

General part information

776230 Series

Connector Header Panel Mount, Through Hole 35 position 0.157" (4.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	776230-1	776230 Series

Applications	Industrial, Automotive	Industrial, Automotive
Connector Type	Header	Header
Contact Finish - Mating	-	Gold-Palladium
Contact Material	Brass	Brass
Contact Shape	Circular	Circular
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Features	Sealable, Mounting Flange	Sealable, Mounting Flange
Insulation Color	Black	Gray, Natural, Black
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	35	35
Number of Positions Loaded	All	All
Number of Rows	3	3
Operating Temperature [Max]	105 ░C	105 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.157 "	0.157 "
Pitch - Mating	4 mm	4 mm
Row Spacing - Mating	0.157 in	0.157 in
Row Spacing - Mating	4 mm	4 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VAC	250 VAC

776230 Series

CONN HEADER VERT 35POS 4MM

Part	Applications	Contact Shape	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Number of Positions	Termination	Features	Contact Material	Insulation Material	Shrouding	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Connector Type	Fastening Type	Contact Type	Style	Current Rating (Amps)	Insulation Color	Voltage Rating
TE Connectivity AMP Connectors 1-776230-4	Automotive, Industrial	Circular	Panel Mount, Through Hole	0.157 "	4 mm	All	35	Solder	Mounting Flange, Sealable	Brass	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 4 Wall	3	0.157 in	4 mm	125 °C	-40 °C	Gold-Palladium	Header	Locking Ramp	Male Pin	Board to Cable/Wire	Varies by Wire Gauge	Gray	250 VAC
TE Connectivity AMP Connectors 776230-2	Automotive, Industrial	Circular	Panel Mount, Through Hole	0.157 "	4 mm	All	35	Solder	Mounting Flange, Sealable	Brass	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 4 Wall	3	0.157 in	4 mm	105 ░C	-40 °C		Header	Locking Ramp	Male Pin	Board to Cable/Wire	Varies by Wire Gauge	Natural	250 VAC
TE Connectivity AMP Connectors 776230-1	Automotive, Industrial	Circular	Panel Mount, Through Hole	0.157 "	4 mm	All	35	Solder	Mounting Flange, Sealable	Brass	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 4 Wall	3	0.157 in	4 mm	105 ░C	-40 °C		Header	Locking Ramp	Male Pin	Board to Cable/Wire	Varies by Wire Gauge	Black	250 VAC
TE Connectivity AMP Connectors 1-776230-1	Automotive, Industrial	Circular	Panel Mount, Through Hole	0.157 "	4 mm	All	35	Solder	Mounting Flange, Sealable	Brass	Polybutylene Terephthalate (PBT), Glass Filled	Shrouded - 4 Wall	3	0.157 in	4 mm	125 °C	-40 °C	Gold-Palladium	Header	Locking Ramp	Male Pin	Board to Cable/Wire	Varies by Wire Gauge	Black	250 VAC
