304-13-101-41-770000

Active

Mill-Max Manufacturing Corp.

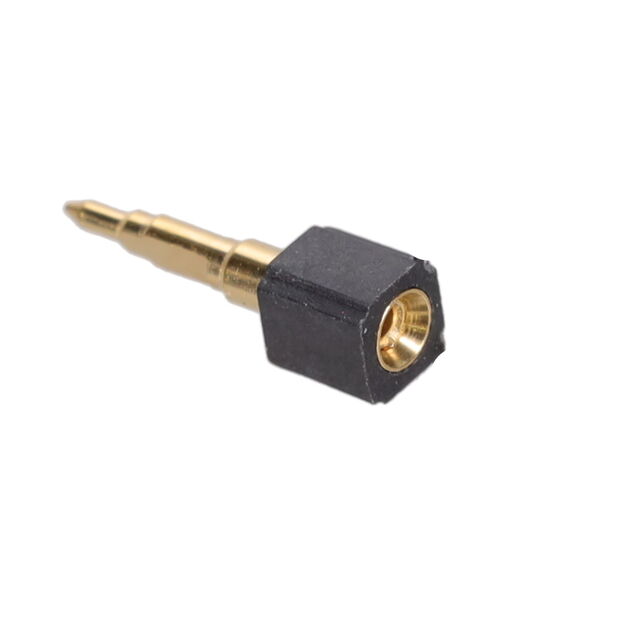

CONN RCPT 1POS GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

304-13-101-41-770000

Active

Mill-Max Manufacturing Corp.

CONN RCPT 1POS GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	304-13-101-41-770000

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Post	4.45 mm
Contact Length - Post	0.175 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Termination	Press-Fit
Voltage Rating	100 V, 150 VDC

304-13 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Positions	Number of Positions Loaded	Insulation Color	Mounting Type	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Material Flammability Rating	Contact Finish - Post	Connector Type	Fastening Type	Voltage Rating	Contact Finish - Mating	Contact Material	Insulation Material	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating
Mill-Max Manufacturing Corp. 304-13-101-41-770000	-55 °C	125 °C	Circular	Press-Fit	30 Áin	0.76 Ám	3 A	1	All	Black	Through Hole	1	10 çin	0.25 çm	Female Socket	UL94 V-0	Gold	Receptacle	Push-Pull	100 V 150 VDC	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in
Mill-Max Manufacturing Corp. 304-13-106-41-780000	-55 °C	125 °C	Circular	Press-Fit	30 Áin	0.76 Ám	3 A	6	All	Black	Through Hole	1	10 çin	0.25 çm	Female Socket	UL94 V-0	Gold	Receptacle	Push-Pull	100 V 150 VDC	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	6.35 mm	0.25 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 304-13-109-41-780000	-55 °C	125 °C	Circular	Press-Fit	30 Áin	0.76 Ám	3 A	9	All	Black	Through Hole	1	10 çin	0.25 çm	Female Socket	UL94 V-0	Gold	Receptacle	Push-Pull	100 V 150 VDC	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	6.35 mm	0.25 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 304-13-112-41-770000	-55 °C	125 °C	Circular	Press-Fit	30 Áin	0.76 Ám	3 A	12	All	Black	Through Hole	1	10 çin	0.25 çm	Female Socket	UL94 V-0	Gold	Receptacle	Push-Pull	100 V 150 VDC	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 304-13-119-41-770000	-55 °C	125 °C	Circular	Press-Fit	30 Áin	0.76 Ám	3 A	19	All	Black	Through Hole	1	10 çin	0.25 çm	Female Socket	UL94 V-0	Gold	Receptacle	Push-Pull	100 V 150 VDC	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 304-13-144-41-770000	-55 °C	125 °C	Circular	Press-Fit	30 Áin	0.76 Ám	3 A	44	All	Black	Through Hole	1	10 çin	0.25 çm	Female Socket	UL94 V-0	Gold	Receptacle	Push-Pull	100 V 150 VDC	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 304-13-150-41-780000	-55 °C	125 °C	Circular	Press-Fit	30 Áin	0.76 Ám	3 A	50	All	Black	Through Hole	1	10 çin	0.25 çm	Female Socket	UL94 V-0	Gold	Receptacle	Push-Pull	100 V 150 VDC	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	6.35 mm	0.25 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 304-13-130-41-780000	-55 °C	125 °C	Circular	Press-Fit	30 Áin	0.76 Ám	3 A	30	All	Black	Through Hole	1	10 çin	0.25 çm	Female Socket	UL94 V-0	Gold	Receptacle	Push-Pull	100 V 150 VDC	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	6.35 mm	0.25 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 304-13-141-41-770000	-55 °C	125 °C	Circular	Press-Fit	30 Áin	0.76 Ám	3 A	41	All	Black	Through Hole	1	10 çin	0.25 çm	Female Socket	UL94 V-0	Gold	Receptacle	Push-Pull	100 V 150 VDC	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 304-13-132-41-770000	-55 °C	125 °C	Circular	Press-Fit	30 Áin	0.76 Ám	3 A		All	Black	Through Hole	1	10 çin	0.25 çm	Female Socket	UL94 V-0	Gold	Receptacle	Push-Pull	100 V 150 VDC	Gold	Beryllium Copper	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	4.45 mm	0.175 in	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.05
		10	$ 12.45
		100	$ 10.86
		500	$ 9.26
		1000	$ 8.49

Description

General part information

304-13 Series

1 Position Receptacle Connector Through Hole Gold
