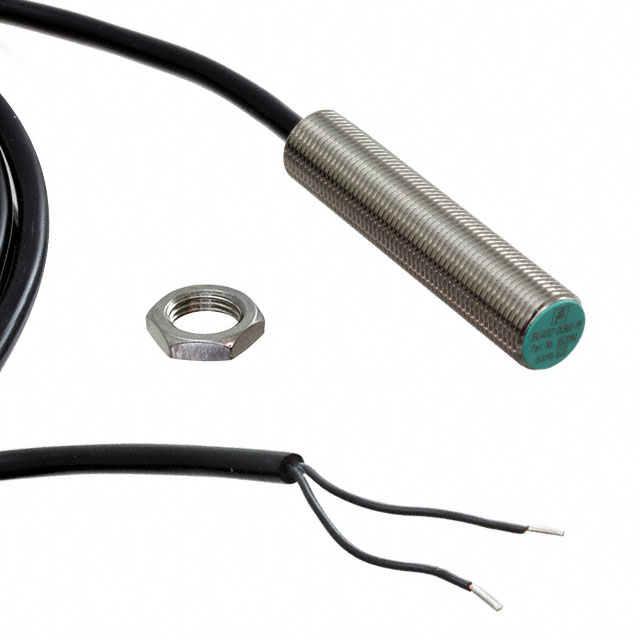

3RG4012-0KB00-PF

Active

PEPPERL+FUCHS

INDUCTIVE SEN 2MM NO

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 2MM NO

Technical Specifications

Parameters and characteristics commom to parts in this series

INDUCTIVE SEN 2MM NO

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Response Frequency	Indicator [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Sensor Type	Package / Case	Material - Body	Shielding	Ingress Protection	Output Type	Termination Style	Sensing Distance	Sensing Distance
PEPPERL+FUCHS 3RG4012-0KB00-PF	265 VAC, 320 VDC	20 VAC, 20 VDC	1.2 kHz	LED	-25 °C	85 °C	Inductive	Cylinder, Threaded - M12	Brass	Unshielded	IP67	SCR-NO, 2-Wire	Cable	0.079 in	2 mm
PEPPERL+FUCHS 3RG4012-0KB60-PF	265 VAC, 320 VDC	20 VAC, 20 VDC	1.2 kHz	LED	-25 °C	85 °C	Inductive	Cylinder, Threaded - M12	Stainless Steel	Unshielded	IP67	SCR-NO, 2-Wire	Cable	0.079 in	2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 2MM NO
