628-7W2-624-3N3
ActiveEDAC Inc.

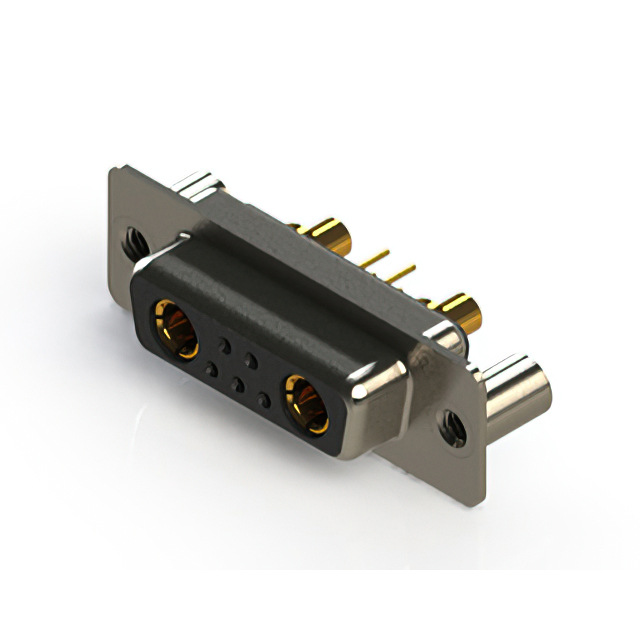

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DA-7W2, RECEPTACLE, 7 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
628-7W2-624-3N3
ActiveEDAC Inc.
COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DA-7W2, RECEPTACLE, 7 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 628-7W2-624-3N3 |
|---|---|
| Color | Black |
| Connector Style | D-Sub, Combo |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Signal and Power |
| Current Rating (Amps) | 30 A, 5 A |
| Dielectric Material | Polyester Thermoplastic |
| Features | Shielded |
| Flange Feature | Board Side, 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 7 |
| Number of Positions [custom] | 2 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 2 (DA, A) - 7W2 |
| Termination | Solder |
| Voltage Rating | 125 VDC |
628-7W2 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Connector Style | Shell Size, Connector Layout | Contact Material | Material Flammability Rating | Number of Positions [custom] | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Features | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Finish | Contact Type | Flange Feature | Dielectric Material | Voltage Rating | Termination | Shell Material, Finish | Contact Finish Thickness | Current Rating (Amps) | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -55 °C | 125 °C | Black | Combo D-Sub | 2 (DA A) - 7W2 | Copper Alloy | UL94 V-0 | 7 | 2 | 5 | Receptacle Female Sockets | Shielded | 2 | 0.76 Ám | 30 Áin | Free Hanging (In-Line) | Gold | Coax Signal | Housing/Shell (Unthreaded) | Polyester Thermoplastic | 125 VDC | |||||
EDAC Inc. | -55 °C | 125 °C | Black | Combo D-Sub | 2 (DA A) - 7W2 | Copper Alloy | UL94 V-0 | 7 | 2 | 5 | Receptacle Female Sockets | Board Lock Shielded | 2 | Through Hole | Gold | Coax Signal | 4-40 | Polyester Thermoplastic | 125 VDC | Solder | Nickel Plated Steel | Flash | ||||
EDAC Inc. | -55 °C | 125 °C | Black | Combo D-Sub | 2 (DA A) - 7W2 | Copper Alloy | UL94 V-0 | 7 | Receptacle Female Sockets | Shielded | 2 | Through Hole | Gold | Signal and Power | 4-40 Board Side | Polyester Thermoplastic | 125 VDC | Solder | Flash | 5 A 40 A | 2 | |||||
EDAC Inc. | -55 °C | 125 °C | Black | Combo D-Sub | 2 (DA A) - 7W2 | Copper Alloy | UL94 V-0 | 7 | Receptacle Female Sockets | Board Lock Shielded | 2 | Through Hole | Gold | Signal and Power | M3 | Polyester Thermoplastic | 125 VDC | Solder | Flash | 5 A 30 A | 2 | |||||
EDAC Inc. | -55 °C | 125 °C | Black | Combo D-Sub | 2 (DA A) - 7W2 | Copper Alloy | UL94 V-0 | 7 | Receptacle Female Sockets | Shielded | 2 | 0.76 Ám | 30 Áin | Through Hole | Gold | Signal and Power | Board Side (M3) | Polyester Thermoplastic | 125 VDC | Solder | 5 A 30 A | 2 | ||||
EDAC Inc. | -55 °C | 125 °C | Black | Combo D-Sub | 2 (DA A) - 7W2 | Copper Alloy | UL94 V-0 | 7 | 2 | 5 | Receptacle Female Sockets | Board Lock Shielded | 2 | Through Hole | Gold | Coax Signal | Board Side (M3) | Polyester Thermoplastic | 125 VDC | Solder | Nickel Plated Steel | Flash | ||||
EDAC Inc. | -55 °C | 125 °C | Black | Combo D-Sub | 2 (DA A) - 7W2 | Copper Alloy | UL94 V-0 | 7 | Receptacle Female Sockets | Shielded | 2 | Through Hole | Gold | Signal and Power | Board Side (M3) | Polyester Thermoplastic | 125 VDC | Solder | Flash | 5 A 30 A | 2 | |||||
EDAC Inc. | -55 °C | 125 °C | Black | Combo D-Sub | 2 (DA A) - 7W2 | Copper Alloy | UL94 V-0 | 7 | Receptacle Female Sockets | Shielded | 2 | 0.76 Ám | 30 Áin | Through Hole | Gold | Signal and Power | 4-40 Board Side | Polyester Thermoplastic | 125 VDC | Solder | Nickel Plated Steel | 5 A 30 A | 2 | |||
EDAC Inc. | -55 °C | 125 °C | Black | Combo D-Sub | 2 (DA A) - 7W2 | Copper Alloy | UL94 V-0 | 7 | Receptacle Female Sockets | Shielded | 2 | Through Hole | Gold | Signal and Power | Board Side (M3) | Polyester Thermoplastic | 125 VDC | Solder | Nickel Plated Steel | Flash | 5 A 40 A | 2 | ||||
EDAC Inc. | -55 °C | 125 °C | Black | Combo D-Sub | 2 (DA A) - 7W2 | Copper Alloy | UL94 V-0 | 7 | 2 | 5 | Receptacle Female Sockets | Shielded | 2 | Through Hole | Gold | Coax Signal | 4-40 | Polyester Thermoplastic | 125 VDC | Solder | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
628-7W2 Series
7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
