628-7W2-224-4T2

Active

EDAC Inc.

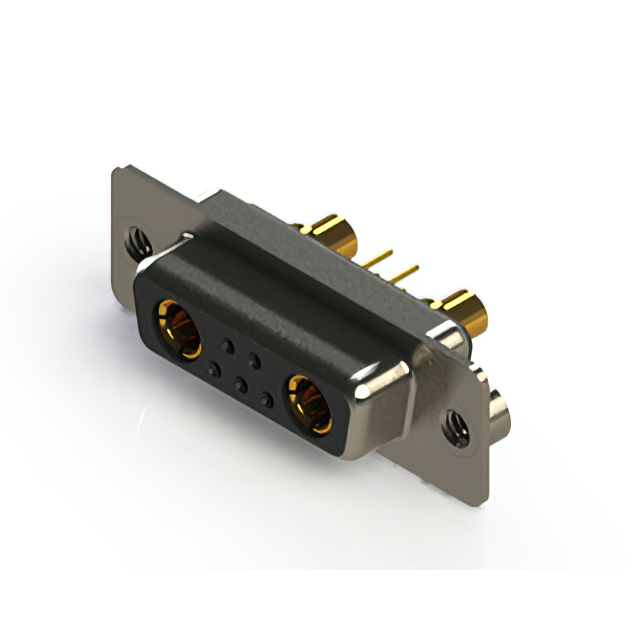

CONN D-SUB RCPT 7POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-7W2-224-4T2

Active

EDAC Inc.

CONN D-SUB RCPT 7POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-7W2-224-4T2

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	40 A, 5 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions [custom]	7
Number of Positions [custom]	2
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2 (DA, A) - 7W2
Termination	Solder
Voltage Rating	125 VDC

628-7W2 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Style	Shell Size, Connector Layout	Contact Material	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Connector Type	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Contact Type	Flange Feature	Dielectric Material	Voltage Rating	Termination	Shell Material, Finish	Contact Finish Thickness	Current Rating (Amps)	Number of Positions [custom]
EDAC Inc. 628-7W2-622-5T1	-55 °C	125 °C	Black	Combo D-Sub	2 (DA A) - 7W2	Copper Alloy	UL94 V-0	7	2	5	Receptacle Female Sockets	Shielded	2	0.76 Ám	30 Áin	Free Hanging (In-Line)	Gold	Coax Signal	Housing/Shell (Unthreaded)	Polyester Thermoplastic	125 VDC
EDAC Inc. 628-7W2-224-5N6	-55 °C	125 °C	Black	Combo D-Sub	2 (DA A) - 7W2	Copper Alloy	UL94 V-0	7	2	5	Receptacle Female Sockets	Board Lock Shielded	2			Through Hole	Gold	Coax Signal	4-40	Polyester Thermoplastic	125 VDC	Solder	Nickel Plated Steel	Flash
EDAC Inc. 628-7W2-224-4T2	-55 °C	125 °C	Black	Combo D-Sub	2 (DA A) - 7W2	Copper Alloy	UL94 V-0	7			Receptacle Female Sockets	Shielded	2			Through Hole	Gold	Signal and Power	4-40 Board Side	Polyester Thermoplastic	125 VDC	Solder		Flash	5 A 40 A	2
EDAC Inc. 628-7W2-224-3TE	-55 °C	125 °C	Black	Combo D-Sub	2 (DA A) - 7W2	Copper Alloy	UL94 V-0	7			Receptacle Female Sockets	Board Lock Shielded	2			Through Hole	Gold	Signal and Power	M3	Polyester Thermoplastic	125 VDC	Solder		Flash	5 A 30 A	2
EDAC Inc. 628-7W2-624-3TB	-55 °C	125 °C	Black	Combo D-Sub	2 (DA A) - 7W2	Copper Alloy	UL94 V-0	7			Receptacle Female Sockets	Shielded	2	0.76 Ám	30 Áin	Through Hole	Gold	Signal and Power	Board Side (M3)	Polyester Thermoplastic	125 VDC	Solder			5 A 30 A	2
EDAC Inc. 628-7W2-224-5ND	-55 °C	125 °C	Black	Combo D-Sub	2 (DA A) - 7W2	Copper Alloy	UL94 V-0	7	2	5	Receptacle Female Sockets	Board Lock Shielded	2			Through Hole	Gold	Coax Signal	Board Side (M3)	Polyester Thermoplastic	125 VDC	Solder	Nickel Plated Steel	Flash
EDAC Inc. 628-7W2-224-3TA	-55 °C	125 °C	Black	Combo D-Sub	2 (DA A) - 7W2	Copper Alloy	UL94 V-0	7			Receptacle Female Sockets	Shielded	2			Through Hole	Gold	Signal and Power	Board Side (M3)	Polyester Thermoplastic	125 VDC	Solder		Flash	5 A 30 A	2
EDAC Inc. 628-7W2-624-3N3	-55 °C	125 °C	Black	Combo D-Sub	2 (DA A) - 7W2	Copper Alloy	UL94 V-0	7			Receptacle Female Sockets	Shielded	2	0.76 Ám	30 Áin	Through Hole	Gold	Signal and Power	4-40 Board Side	Polyester Thermoplastic	125 VDC	Solder	Nickel Plated Steel		5 A 30 A	2
EDAC Inc. 628-7W2-224-4NB	-55 °C	125 °C	Black	Combo D-Sub	2 (DA A) - 7W2	Copper Alloy	UL94 V-0	7			Receptacle Female Sockets	Shielded	2			Through Hole	Gold	Signal and Power	Board Side (M3)	Polyester Thermoplastic	125 VDC	Solder	Nickel Plated Steel	Flash	5 A 40 A	2
EDAC Inc. 628-7W2-224-7T4	-55 °C	125 °C	Black	Combo D-Sub	2 (DA A) - 7W2	Copper Alloy	UL94 V-0	7	2	5	Receptacle Female Sockets	Shielded	2			Through Hole	Gold	Coax Signal	4-40	Polyester Thermoplastic	125 VDC	Solder		Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 6.24

Description

General part information

628-7W2 Series

7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
