2200970270

2200970270

Active
Molex

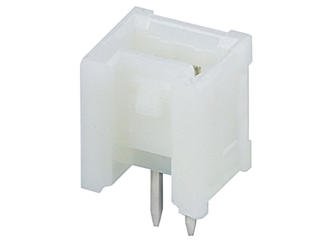

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, SINGLE ROW, VERTICAL, THROUGH HOLE, TIN-BISMUTH PLATING, POSITIVE LOCK, 2 CIRCUITS, LOW-HALOGEN, NATURAL (WHITE)

Find alt
2200970270

2200970270

Active
Molex

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, SINGLE ROW, VERTICAL, THROUGH HOLE, TIN-BISMUTH PLATING, POSITIVE LOCK, 2 CIRCUITS, LOW-HALOGEN, NATURAL (WHITE)

Find alt

Description

General part information

220097 Series

1.25MM PITCH, MICRO-LOCK PLUS PCB HEADER, SINGLE ROW, VERTICAL, THROUGH HOLE, TIN-BISMUTH PLATING, POSITIVE LOCK, 2 CIRCUITS, LOW-HALOGEN, NATURAL (WHITE)

Technical Specifications

Parameters and characteristics for this part

Specification2200970270
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Length - Post0.091 in
Contact MaterialBrass
Contact ShapeRectangular
Contact TypeMale Pin
Current Rating0 A
Current RatingVaries by Wire Gauge
Fastening TypeLocking Ramp
FeaturesBoard Guide
Insulation ColorNatural
Insulation Height0.193 in
Insulation MaterialNylon, Glass Filled, Polyamide (PA)
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)105 °C
Operating Temperature (Min)-40 °C
Pitch - Mating0.049 in
ShroudingShrouded - 4 Wall
StyleCable/Wire, Board
TerminationSolder
Voltage Rating50 V
Voltage Rating (Type)DC
