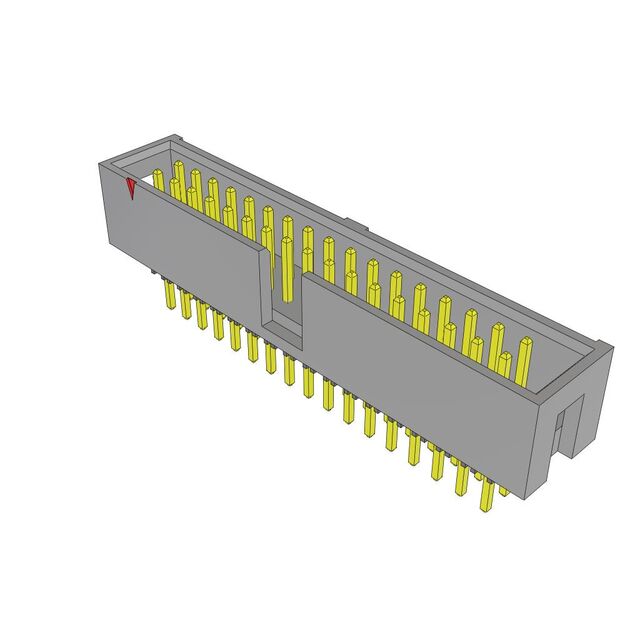

ZST-117-01-L-D-450
ActiveSamtec Inc.
CONN HDR .100" 34POS
Deep-Dive with AI
Search across all available documentation for this part.
ZST-117-01-L-D-450
ActiveSamtec Inc.
CONN HDR .100" 34POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ZST-117-01-L-D-450 |
|---|---|
| Connector Type | Elevated, Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Mating | 6.35 mm |
| Contact Length - Mating | 0.25 in |
| Contact Length - Post | 0.18 in |
| Contact Length - Post | 4.57 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | Black |
| Insulation Height | 11.43 mm |
| Insulation Height | 0.45 in |
| Insulation Material | Polyester, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 34 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overall Contact Length [x] | 0.63 " |
| Overall Contact Length [x] | 16 mm |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
ZST-117 Series
| Part | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height [custom] | Insulation Height [custom] | Contact Length - Mating | Contact Length - Mating | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Contact Shape | Number of Positions Loaded | Insulation Material | Mounting Type | Pitch - Mating | Pitch - Mating | Fastening Type | Termination | Number of Positions | Shrouding | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Features | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Insulation Color | Contact Material | Style | Number of Rows | Connector Type | Insulation Height | Insulation Height | Overall Contact Length [x] | Overall Contact Length [x] | Contact Length - Post | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | 14.99 mm | 0.59 in | 0.84 in | 21.34 mm | 6.35 mm | 0.25 in | Gold | 10 çin | 0.25 çm | Male Pin | Square | All | Polyester Glass Filled | Through Hole | 0.1 in | 2.54 mm | Push-Pull | Solder | 34 | Shrouded - 4 Wall | Gold | -55 °C | 125 °C | UL94 V-0 | Keying Slot | 2.54 mm | 0.1 in | 3 µin | 0.076 µm | Black | Phosphor Bronze | Board to Cable/Wire | 2 | Elevated Header | ||||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | 6.35 mm | 0.25 in | Gold | 10 çin | 0.25 çm | Male Pin | Square | All | Polyester Glass Filled | Through Hole | 0.1 in | 2.54 mm | Push-Pull | Solder | 34 | Shrouded - 4 Wall | Tin | -55 °C | 125 °C | UL94 V-0 | Keying Slot | 2.54 mm | 0.1 in | Black | Phosphor Bronze | Board to Cable/Wire | 2 | Elevated Header | 11.43 mm | 0.45 in | 0.63 " | 16 mm | 0.18 in | 4.57 mm | ||||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | 6.35 mm | 0.25 in | Gold | 10 çin | 0.25 çm | Male Pin | Square | All | Polyester Glass Filled | Through Hole | 0.1 in | 2.54 mm | Push-Pull | Solder | 34 | Shrouded - 4 Wall | Gold | -55 °C | 125 °C | UL94 V-0 | Keying Slot | 2.54 mm | 0.1 in | 3 µin | 0.076 µm | Black | Phosphor Bronze | Board to Cable/Wire | 2 | Elevated Header | 0.615 in | 15.62 mm | 0.515 " | 13.08 mm | 28.7 mm | 1.13 in | ||||||||
Samtec Inc. | ||||||||||||||||||||||||||||||||||||||||||||
Samtec Inc. | 6.35 mm | 0.25 in | Male Pin | Square | All | Polyester Glass Filled | Through Hole | 0.1 in | 2.54 mm | Push-Pull | Solder | 34 | Shrouded - 4 Wall | Tin | -55 °C | 105 ░C | UL94 V-0 | Keying Slot | 2.54 mm | 0.1 in | Black | Phosphor Bronze | Board to Cable/Wire | 2 | Elevated Header | 20.7 mm | 0.815 in | 0.415 in | 10.54 mm | 31.24 mm | 1.23 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.18 | |
Description
General part information
ZST-117 Series
Connector Header Through Hole 34 position 0.100" (2.54mm)
