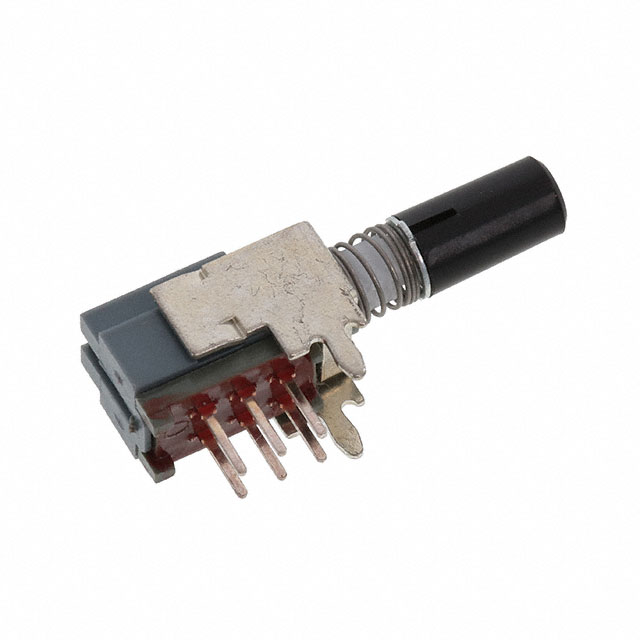

PBH2UEEKZXNAG1RBLK

Active

E-Switch

SWITCH PUSH DPDT 0.1A 30V

Deep-Dive with AI

Search across all available documentation for this part.

PBH2UEEKZXNAG1RBLK

Active

E-Switch

SWITCH PUSH DPDT 0.1A 30V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBH2UEEKZXNAG1RBLK

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	PC Pin
Type	Standard
Voltage Rating - DC	30 V

PBH2 Series

Part	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Circuit	Termination Style	Type	Electrical Life	Switch Function	Mechanical Life	Current Rating (Amps)	Voltage Rating - DC	Mounting Type	Color - Actuator/Cap
E-Switch PBH2UOANAG1RRED	No Marking	-20 C	70 °C	Button Round	DPDT	PC Pin	Standard	10000 Cycles	On-Mom	30000 Steps	100 mA	30 V	Through Hole Right Angle	Red
E-Switch PBH2UOANAGV	No Marking	-20 C	70 °C	Plunger for Cap	DPDT	PC Pin	Standard	10000 Cycles	On-Mom	30000 Steps	100 mA	30 V	Through Hole Right Angle	White
E-Switch PBH2UOASAGX	No Marking	-20 C	70 °C	Plunger for Cap	DPDT	PC Pin	Standard	10000 Cycles	On-Mom	30000 Steps	100 mA	30 V	Through Hole Right Angle	White
E-Switch PBH2UEEKZXNAGX	No Marking	-20 C	70 °C	Plunger for Cap	DPDT	PC Pin	Standard	10000 Cycles	On-On	30000 Steps	100 mA	30 V	Through Hole Right Angle	White
E-Switch PBH2UOANAGX	No Marking	-20 C	70 °C	Plunger for Cap	DPDT	PC Pin	Standard	10000 Cycles	On-Mom	30000 Steps	100 mA	30 V	Through Hole Right Angle	White
E-Switch PBH2UEESNPNAGV1RBLK	No Marking	-20 C	70 °C	Button Round	DPDT	PC Pin	Standard	10000 Cycles	On-On	30000 Steps	100 mA	30 V	Through Hole Right Angle	Black
E-Switch PBH2UEEKZXNAG1RBLK	No Marking	-20 C	70 °C	Button Round	DPDT	PC Pin	Standard	10000 Cycles	On-On	30000 Steps	100 mA	30 V	Through Hole Right Angle	Black
E-Switch PBH2UOAKZXNAGV	No Marking	-20 C	70 °C	Plunger for Cap	DPDT	PC Pin	Standard	10000 Cycles	On-Mom	30000 Steps	100 mA	30 V	Through Hole Right Angle	White
E-Switch PBH2UOANAGV1RBLK94VO	No Marking	-20 C	70 °C	Button Round	DPDT	PC Pin	Standard	10000 Cycles	On-Mom	30000 Steps	100 mA	30 V	Through Hole Right Angle	Black
E-Switch PBH2UEENAG1SBLK	No Marking	-20 C	70 °C	Button Square	DPDT	PC Pin	Standard	10000 Cycles	On-On	30000 Steps	100 mA	30 V	Through Hole Right Angle	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.05
		10	$ 0.93
		100	$ 0.80
		1000	$ 0.65

Description

General part information

PBH2 Series

Pushbutton Switch DPDT Standard Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
