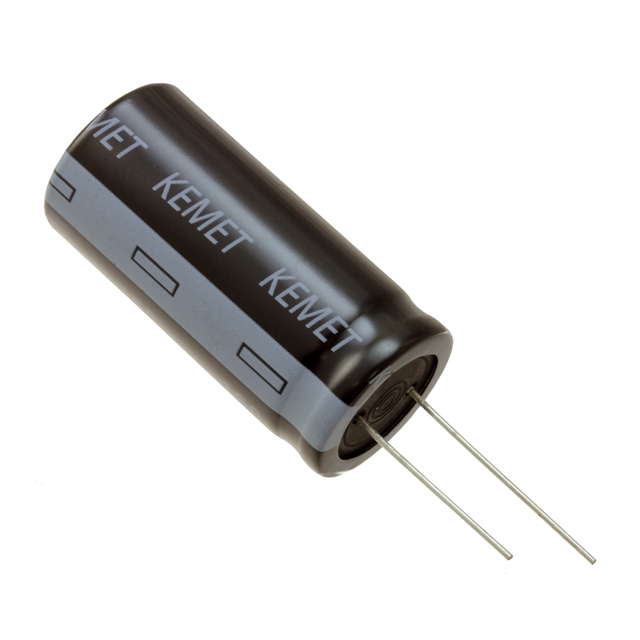

ESG157M500AQ5AA

Active

KEMET

SINGLE ENDED ALUMINUM ELECTROLYTIC CAPACITORS

Search across all available documentation for this part.

Active

KEMET

SINGLE ENDED ALUMINUM ELECTROLYTIC CAPACITORS

Technical Specifications

Parameters and characteristics for this part

Specification	ESG157M500AQ5AA

Applications	General Purpose
Capacitance	150 µF
Height - Seated (Max) [Max] [z]	1.85 in
Height - Seated (Max) [Max] [z]	47 mm
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.53 A
Ripple Current @ Low Frequency	1.02 A
Size / Dimension [diameter]	22 mm
Size / Dimension [diameter]	0.866 in
Tolerance	20 %
Voltage - Rated	500 V

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Polarization	Applications	Ripple Current @ Low Frequency	Tolerance	Lifetime @ Temp.	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Package / Case	Lead Spacing	Lead Spacing
KEMET ESG157M500AQ5AA	1.85 in	47 mm	500 V	22 mm	0.866 in	150 µF	Polar	General Purpose	1.02 A	20 %	5000 Hrs	Through Hole	-40 °C	105 ░C	1.53 A	Radial Can	0.394 in	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150 µF 500 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
