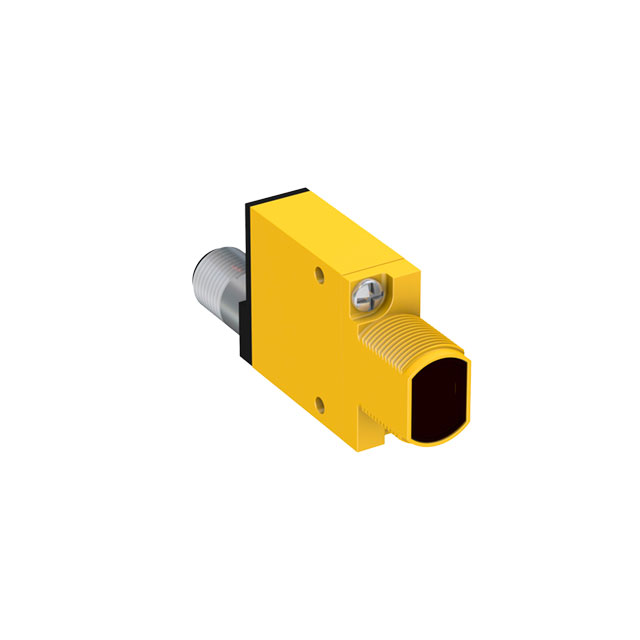

SM31EQD
ActivePHOTOELECTRIC SENSOR, MINI-BEAM, EMITTER, OPPOSED, 3M, NPN / PNP, 10-30VDC, QUICK DISCONNECT
SM31EQD
ActivePHOTOELECTRIC SENSOR, MINI-BEAM, EMITTER, OPPOSED, 3M, NPN / PNP, 10-30VDC, QUICK DISCONNECT
Description
General part information
SM31E Series
The SM31EQD is a MINI-BEAM SM31E Opposed Mode Sensor with reinforced thermoplastic polyester housing, totally encapsulated, o-ring sealing, acrylic lenses and stainless steel screws. Compact, self-contained opposed mode modulated infrared sensor pairs for 10 to 30VDC operation, switch-selectable for light operate or dark operate, both sourcing and sinking outputs. Physically and electrically interchangeable with 18mm barrel-type photoelectric.
Technical Specifications
Parameters and characteristics for this part
| Specification | SM31EQD |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Connection Method | Connector |
| Ingress Protection | 12, 3S, IEC IP67, 3, 6, 4, NEMA 1, 4X, 2, IEC, IP67 |
| Light Source | Infrared LED |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Response Time | 1 ms |
| Sensing Distance | 118.11 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
