TLD5098EPB2BEVALKITTOBO1

Active

Infineon Technologies

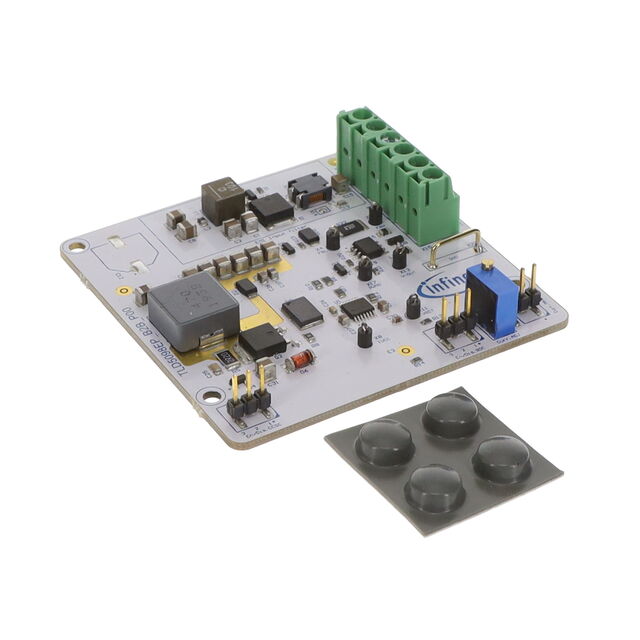

TLD5098EP_B2B IS AN EVALUATION BOARD IN BOOST TO BATTERY TOPOLOGY DESIGNED AS LED DRIVER. IT CAN DELIVER UP TO 21 W WITH EFFICIENCY ABOVE 84%.

Deep-Dive with AI

Search across all available documentation for this part.

TLD5098EPB2BEVALKITTOBO1

Active

Infineon Technologies

TLD5098EP_B2B IS AN EVALUATION BOARD IN BOOST TO BATTERY TOPOLOGY DESIGNED AS LED DRIVER. IT CAN DELIVER UP TO 21 W WITH EFFICIENCY ABOVE 84%.

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLD5098EPB2BEVALKITTOBO1

Contents	Board(s)
Current - Output / Channel [custom]	1 A
Features	Dimmable
Outputs and Type	Non-Isolated, 1 Non-Isolated Output
Outputs and Type	1
Supplied Contents	Board(s)
Utilized IC / Part	TLD5098EP
Voltage - Input [Max]	27 V
Voltage - Input [Min]	8 V
Voltage - Output [Max]	23 V
Voltage - Output [Min]	16 V

TLD5098 Series

Part	Frequency [Max]	Frequency [Min]	Number of Outputs	Voltage - Supply (Max) [Max]	Grade	Type	Voltage - Output [Max]	Voltage - Output [Min]	Mounting Type	Package / Case	Package / Case	Package / Case	Voltage - Supply (Min) [Min]	Supplier Device Package	Current - Output / Channel	Dimming	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Qualification	Voltage - Input [Min]	Voltage - Input [Max]	Features	Utilized IC / Part	Supplied Contents	Current - Output / Channel [custom]	Outputs and Type	Outputs and Type	Contents
Infineon Technologies TLD5098EPXUMA1	500 kHz	100 kHz	1	45 V	Automotive	DC DC Controller	5.5 V	4.5 V	Surface Mount	0.154 in	3.9 mm	14-TSSOP	4.5 V	PG-TSDSO-14	90 mA	Analog PWM	Flyback SEPIC Step-Down (Buck) Step-Up (Boost)	150 °C	-40 °C	AEC-Q100
Infineon Technologies TLD5098EPSEPICEVALTOBO1							23 V	6 V													8 V	27 V	Dimmable	TLD5098EP	Board(s)	1 A	Non-Isolated	1
Infineon Technologies TLD5098EPB2BEVALKITTOBO1							23 V	16 V													8 V	27 V	Dimmable	TLD5098EP	Board(s)	1 A	1 Non-Isolated Output Non-Isolated	1	Board(s)
Infineon Technologies TLD5098EPB2GEVALKITTOBO1							54 V	30 V							350 mA						8 V	27 V	Dimmable	TLD5098EP	Board(s)		1 Non-Isolated Output

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.91
Newark	Each	1	$ 68.24

Description

General part information

TLD5098 Series

TLD5098EP_B2B is an evaluation board in boost to battery topology designed as LED driver. It can deliver up to 21 W with efficiency above 85%. The board is also equipped with the following features, enabled by jumpers:

Documents

Technical documentation and resources

No documents available
