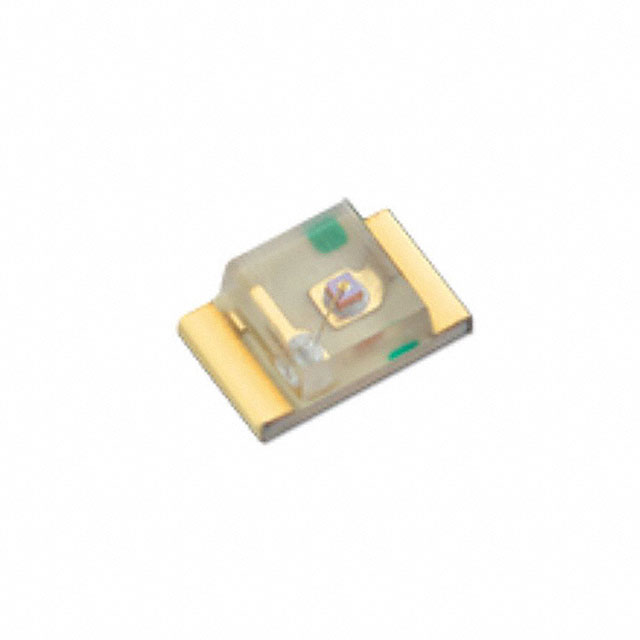

AP2012P3C-P22

Active

Kingbright

SENSOR PHOTO 940NM TOP VIEW 0805

Search across all available documentation for this part.

Active

Kingbright

SENSOR PHOTO 940NM TOP VIEW 0805

Technical Specifications

Parameters and characteristics for this part

Specification	AP2012P3C-P22

Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	0805
Power - Max [Max]	100 mW
Viewing Angle	160 °
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V
Wavelength	940 nm

Part	Orientation	Viewing Angle	Wavelength	Voltage - Collector Emitter Breakdown (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Dark (Id) (Max) [Max]	Package / Case	Power - Max [Max]	Color	Supplier Device Package	Lens Size [x]	Lens Size [y]	Millicandela Rating	Wavelength - Dominant	Configuration	Current - Test	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Lens Color	Type	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max) [Max]	Package / Case
Kingbright AP2012P3C-P22	Top View	160 °	940 nm	30 V	Surface Mount	85 °C	-40 °C	100 nA	0805	100 mW
Kingbright AP2012EC		120 °			Surface Mount				0805		Red	SMD	1.3 mm	1.25 mm	15 mcd	625 nm	Standard	20 mA	627 nm	2 V	1.1 mm	Rectangle with Flat Top	2 mm	1.25 mm	Clear	Colorless
Kingbright AP2012SF4C-P22	Top View	160 °	880 nm		Surface Mount	85 °C	-40 °C		0805											1.3 V							Infrared (IR)	0.8 mW/sr	50 mA
Kingbright AP2012SF4C	Top View	120 °	880 nm		Surface Mount	85 °C	-40 °C		2012											1.3 V							Infrared (IR)	0.8 mW/sr	50 mA	5030 Metric
