Q-0B03Y000H009i

Active

Amphenol Custom Cable

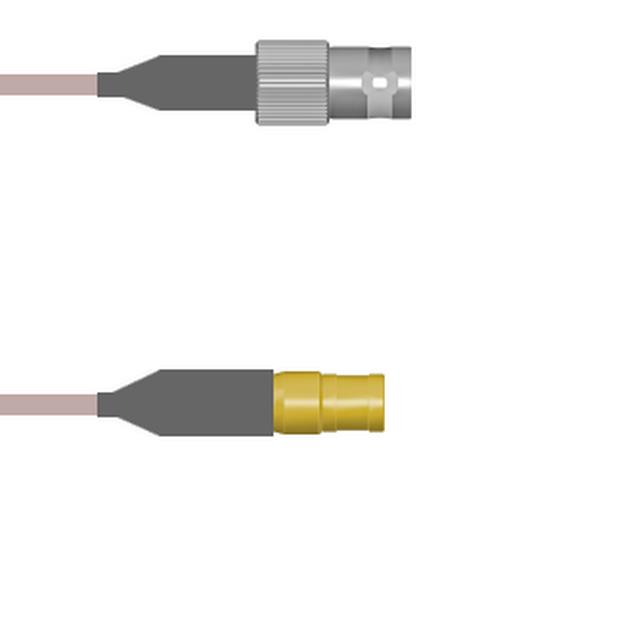

COAX CABLE BNC TO SMB 9"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CABLE BNC TO SMB 9"

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Max [Max]	2nd Connector Mounting Type	Style	1st Contact Gender	Features	Color	Cable Type	Overall Impedance	Length	Length	Length	2nd Connector	1st Connector	2nd Contact Gender	1st Connector Mounting Type
Amphenol Custom Cable Q-0B03Y000H1.5M	4 GHz	Free Hanging (In-Line)	BNC to SMB	Female	Shielded	Copper	RG-142	50 Ohms	59.1 in	4.9 ft	1.5 m	SMB Plug	BNC Jack	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-0B03Y000H009i	4 GHz	Free Hanging (In-Line)	BNC to SMB	Female	Shielded	Copper	RG-142	50 Ohms	9 "		228.6 mm	SMB Plug	BNC Jack	Male	Free Hanging (In-Line)
Amphenol Custom Cable Q-0B03Y000H072i	4 GHz	Free Hanging (In-Line)	BNC to SMB	Female	Shielded	Copper	RG-142	50 Ohms	72 in	6 ft	1.8 m	SMB Plug	BNC Jack	Male	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMB RG-142 9.000" (228.60mm)

Technical documentation and resources

No documents available
