1241.6963.1122000

Active

SCHURTER Inc.

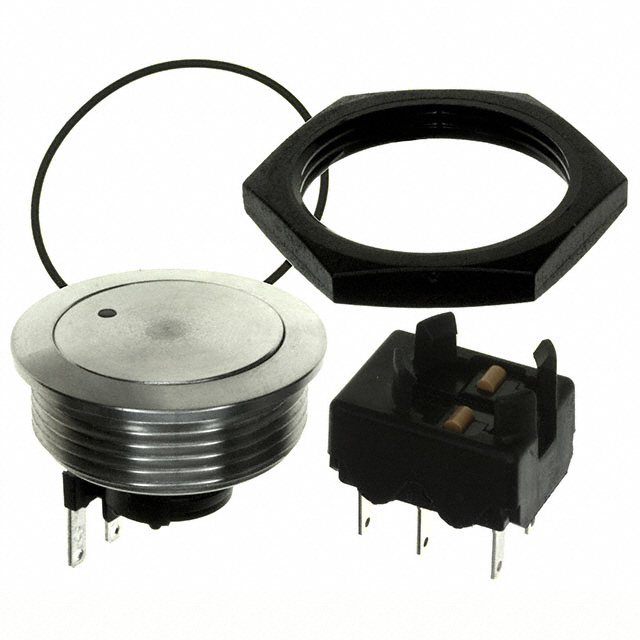

SWITCH PUSHBUTTON DPDT 5A 125V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON DPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	1241.6963.1122000

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	5 A
Electrical Life	200000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	2.1 VDC
Ingress Protection	IP40
Mechanical Life	1500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	30.1 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

SWITCH PUSHBUTTON DPDT 5A 125V

Part	Illumination Voltage (Nominal)	Actuator Type	Electrical Life	Ingress Protection	Termination Style	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Illumination Type, Color	Circuit	Switch Function	Mounting Type	Actuator Marking	Type	Voltage Rating - AC	Mechanical Life	Operating Temperature [Min]	Operating Temperature [Max]
SCHURTER Inc. 1241.6963.1122000	2.1 VDC	Button, Flush, Round	200000 Cycles	IP40	Quick Connect - 0.110" (2.8mm)	Silver	30.1 mm	5 A	Green, LED	DPDT	On-Mom	Panel Mount, Front	No Marking	Anti-Vandal, Illuminated	125 V	1500000 Cycles	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.35

General part information

Pushbutton Switch DPDT Anti-Vandal, Illuminated Panel Mount, Front
