9250-183-RC

Obsolete

Bourns Inc.

FIXED IND 18UH 300MA 890 MOHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9250-183-RC

Obsolete

Bourns Inc.

FIXED IND 18UH 300MA 890 MOHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9250-183-RC

Current - Saturation (Isat)	235 mA
Current Rating (Amps)	300 mA
DC Resistance (DCR) [Max]	890 mOhm
Frequency - Self Resonant	45 MHz
Inductance	18 µH
Inductance Frequency - Test	2.5 MHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Q @ Freq	2.5 MHz, 45
Shielding	Shielded
Size / Dimension [diameter]	0.162 in
Size / Dimension [diameter]	4.11 mm
Size / Dimension [x]	10.41 mm
Size / Dimension [x]	0.41 "
Tolerance	10 %
Type	Wirewound, Drum Core

9250 Series

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	DC Resistance (DCR) [Max]	Shielding	Current - Saturation (Isat)	Type	Package / Case	Material - Core	Current Rating (Amps)	Q @ Freq	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Inductance Frequency - Test	Frequency - Self Resonant	Inductance	Mounting Type	DC Resistance (DCR)
Bourns Inc. 9250-565	10.41 mm	0.41 "	0.162 in	4.11 mm	98.9 Ohm	Shielded	17 mA	Drum Core Wirewound	Axial	Ferrite	0.028 A	44 250 kHz	105 ░C	-55 °C	10 %	250 kHz	730 kHz	5.6 mH	Through Hole
Bourns Inc. 9250-121	10.41 mm	0.41 "	0.162 in	4.11 mm	34 mOhm	Shielded	1.53 A	Drum Core Wirewound	Axial	Ferrite	1.53 A	25 MHz 51	105 ░C	-55 °C	10 %	25 MHz	250 MHz	120 nH	Through Hole
Bourns Inc. 9250-822-RC	10.41 mm	0.41 "	0.162 in	4.11 mm	1.32 Ohm	Shielded	250 mA	Drum Core Wirewound	Axial	Ferrite	0.25 A	7.9 MHz 50	105 ░C	-55 °C	10 %	7.9 MHz	50 MHz	8.2 µH	Through Hole
Bourns Inc. 9250-275	10.41 mm	0.41 "	0.162 in	4.11 mm	47.3 Ohm	Shielded	25 mA	Drum Core Wirewound	Axial	Ferrite	40 mA	45 250 kHz	105 ░C	-55 °C	10 %	250 kHz	920 kHz	2.7 mH	Through Hole
Bourns Inc. 9250-104	10.41 mm	0.41 "	0.162 in	4.11 mm		Shielded	120 mA	Drum Core Wirewound	Axial	Ferrite	160 mA	2.5 MHz 50	105 ░C	-55 °C	10 %	2.5 MHz	10 MHz	100 µH	Through Hole
Bourns Inc. 9250-181	10.41 mm	0.41 "	0.162 in	4.11 mm	47 mOhm	Shielded	1.3 A	Drum Core Wirewound	Axial	Ferrite	1.3 A	25 MHz 50	105 ░C	-55 °C	10 %	25 MHz	250 MHz	180 nH	Through Hole
Bourns Inc. 9250-102	10.41 mm	0.41 "	0.162 in	4.11 mm	70 mOhm	Shielded	1.07 A	Drum Core Wirewound	Axial	Ferrite	1.07 A	25 MHz 44	105 ░C	-55 °C	10 %	25 MHz	140 MHz	1 µH	Through Hole
Bourns Inc. 9250-183-RC	10.41 mm	0.41 "	0.162 in	4.11 mm	890 mOhm	Shielded	235 mA	Drum Core Wirewound	Axial	Ferrite	300 mA	2.5 MHz 45	105 ░C	-55 °C	10 %	2.5 MHz	45 MHz	18 µH	Through Hole
Bourns Inc. 9250-224	10.41 mm	0.41 "	0.162 in	4.11 mm		Shielded	80 mA	Drum Core Wirewound	Axial	Ferrite	125 mA		105 ░C	-55 °C	10 %	790 kHz	7.5 MHz	220 µH	Through Hole	5 Ohm
Bourns Inc. 9250-564	10.41 mm	0.41 "	0.162 in	4.11 mm	10.5 Ohm	Shielded	55 mA	Drum Core Wirewound	Axial	Ferrite	0.09 A	60 790 kHz	105 ░C	-55 °C	10 %	790 kHz	4.7 MHz	560 µH	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

9250 Series

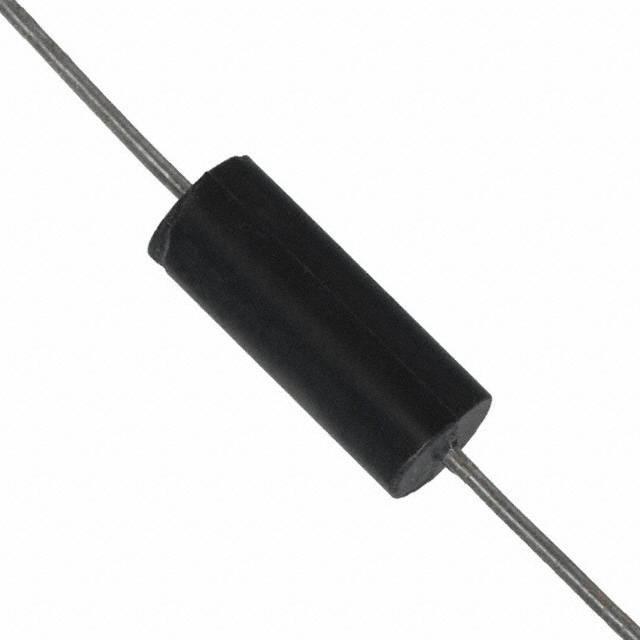

18 µH Shielded Drum Core, Wirewound Inductor 300 mA 890mOhm Max Axial
