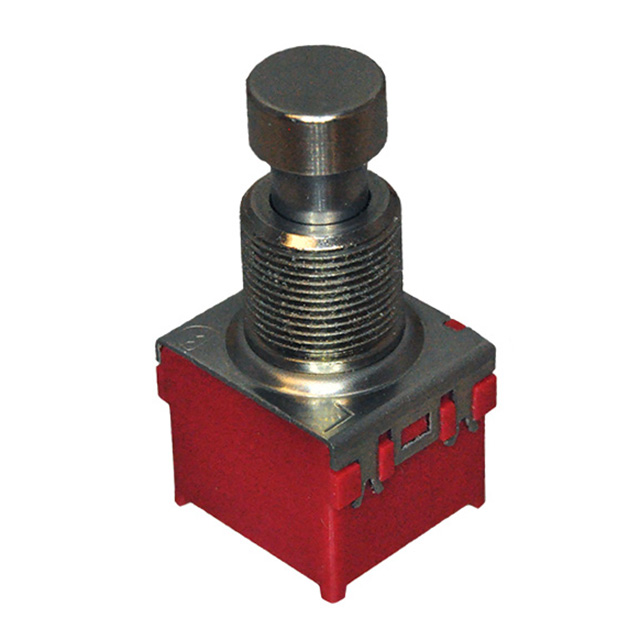

FS5700SPLT2B2M2QE

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 1A/9VDC; ON-ON; LEADS: FOR PCB

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; SPDT; 1A/9VDC; ON-ON; LEADS: FOR PCB

Technical Specifications

Parameters and characteristics for this part

Specification	FS5700SPLT2B2M2QE

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	1 A
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Mounting Type	Panel Mount, Rear
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-On
Termination Style	PC Pin
Type	Standard
Voltage Rating - DC	9 V

Part	Current Rating (Amps)	Circuit	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Color - Actuator/Cap	Features	Mounting Type	Actuator Marking	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Type	Type	Termination Style	Voltage Rating - DC	Electrical Life
E-Switch FS5700SPLT2B2M2QE	1 A	SPDT	-10 °C	158 °F	Silver	Epoxy Sealed Terminals	Panel Mount Rear	No Marking	On-On	12.2 mm	Button Round	Standard	PC Pin	9 V	30000 Cycles
E-Switch FS5700SPMT2B2M1QEH	1 A	SPDT	-10 °C	158 °F	Silver	Epoxy Sealed Terminals	Panel Mount Rear	No Marking	On-Mom	12.2 mm	Button Round	Standard	Solder Lug	9 V	30000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Panel Mount, Rear

Technical documentation and resources

No documents available
