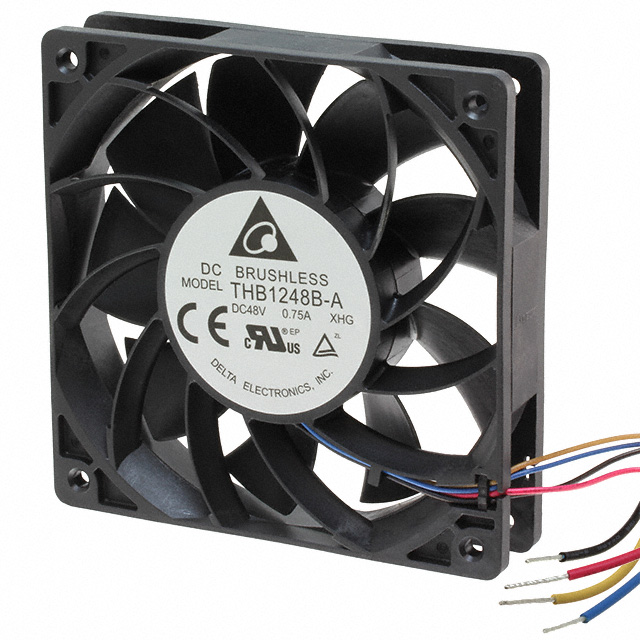

THB1248B-AXHG

Obsolete

Delta Electronics

FAN AXIAL 120X25.4MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 120X25.4MM 48VDC WIRE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 120mm L x 120mm H Ball 186.6 CFM (5.22m³/min) 4 Wire Leads

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	THB1248B-AXHG	THB1248 Series

Air Flow	186.6 CFM	186.6 - 262 CFM
Air Flow	5.22 m³/min	5.22 - 7.34 m³/min
Approval Agency	cURus, CE, TUV	cURus, CE, TUV
Bearing Type	Ball	Ball
Current Rating (Amps)	400 mA	0.95 - 400 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Ingress Protection	IP54 - Dust Protected, Water Resistant	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs	70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic, Aluminum
Noise	59 dB(A)	59 - 70 dB(A)
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	19.2 W	19.2 - 45.6 W
RPM	5300 RPM	5300 - 7800 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	0.962 in H2O	0.962 - 2.03 in H2O
Static Pressure	239.6 Pa	239.6 - 505.7 Pa
Termination	4 Wire Leads	4 Wire Leads
Voltage - Rated [custom]	48 VDC	48 VDC
Voltage Range [Max]	75 VDC	60 - 75 VDC
Voltage Range [Min]	36 VDC	36 VDC
Weight	198 g	198 - 415.04 g
Weight	0.437 lb	0.437 - 0.915 lb
Width [y]	25.4 mm	25.4 - 38 mm

FAN AXIAL 120X25.4MM 48VDC WIRE

Part	Voltage Range [Max]	Voltage Range [Min]	Current Rating (Amps)	Noise	Bearing Type	Features	Termination	Approval Agency	Static Pressure	Static Pressure	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Voltage - Rated [custom]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Air Flow	Air Flow	Material - Frame	Weight	Weight	Fan Type	Ingress Protection	Material - Blade	RPM
Delta Electronics THB1248B-AXHG	75 VDC	36 VDC	400 mA	59 dB(A)	Ball	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	4 Wire Leads	CE, cURus, TUV	0.962 in H2O	239.6 Pa	25.4 mm	120 mm	120 mm	19.2 W	48 VDC	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	186.6 CFM	5.22 m³/min	Plastic	198 g	0.437 lb	Tubeaxial	IP54 - Dust Protected, Water Resistant	Plastic	5300 RPM
Delta Electronics THB1248CE	60 V	36 VDC	0.95 A	70 dB(A)	Ball	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	4 Wire Leads	CE, cURus, TUV	2.03 in H2O	505.7 Pa	38 mm	120 mm	120 mm	45.6 W	48 VDC	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	262 CFM	7.34 m³/min	Aluminum	415.04 g	0.915 lb	Tubeaxial		Plastic	7800 RPM
Delta Electronics THB1248B-A	75 VDC	36 VDC	400 mA	59 dB(A)	Ball	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	4 Wire Leads	CE, cURus, TUV	0.962 in H2O	239.6 Pa	25.4 mm	120 mm	120 mm	19.2 W	48 VDC	70 °C	70 °C	-10 °C	-10 °C	70000 Hrs	186.6 CFM	5.22 m³/min	Plastic	198 g	0.437 lb	Tubeaxial		Plastic	5300 RPM
