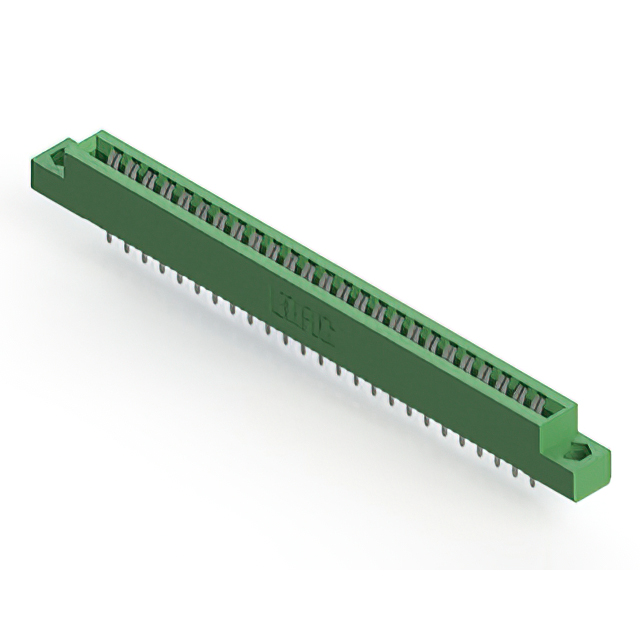

306-025-420-104

Active

EDAC Inc.

CONN EDGE DUAL FMALE 50POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

306-025-420-104

Active

EDAC Inc.

CONN EDGE DUAL FMALE 50POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	306-025-420-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Panel Mount
Number of Positions	50
Number of Positions/Bay/Row [custom]	25
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

306-025 Series

Part	Contact Finish	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Read Out	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Pitch [x]	Pitch [x]	Contact Material	Termination	Material - Insulation	Color	Contact Type	Card Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 306-025-500-101	Gold	2	50	-40 °C	105 ░C	25	Dual	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	0.156 in	3.96 mm	Copper Alloy	Solder Eyelet(s)	Polyester Thermoplastic	Green	Cantilever	Non Specified - Dual Edge	Free Hanging (In-Line)	10 Áin	0.25 Ám
EDAC Inc. 306-025-421-178	Tin	2	50	-40 °C	105 ░C	25	Dual	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	0.156 in	3.96 mm	Copper Alloy	Solder	Polyester Thermoplastic	Green	Cantilever	Non Specified - Dual Edge	Panel Mount Through Hole			Card Guides	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 306-025-520-112	Gold	2	50	-40 °C	105 ░C	25	Dual	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	0.156 in	3.96 mm	Copper Alloy	Solder	Polyester Thermoplastic	Green	Cantilever	Non Specified - Dual Edge	Panel Mount Through Hole	10 Áin	0.25 Ám		Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 306-025-400-102	Tin	2	50	-40 °C	105 ░C	25	Dual	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	0.156 in	3.96 mm	Copper Alloy	Solder Eyelet(s)	Polyester Thermoplastic	Green	Cantilever	Non Specified - Dual Edge					Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 306-025-400-104	Tin	2	50	-40 °C	105 ░C	25	Dual	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	0.156 in	3.96 mm	Copper Alloy	Solder Eyelet(s)	Polyester Thermoplastic	Green	Cantilever	Non Specified - Dual Edge					Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in
EDAC Inc. 306-025-420-158	Tin	2	50	-40 °C	105 ░C	25	Dual	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	0.156 in	3.96 mm	Copper Alloy	Solder	Polyester Thermoplastic	Green	Cantilever	Non Specified - Dual Edge	Panel Mount Through Hole			Card Guides	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 306-025-420-101	Tin	2	50	-40 °C	105 ░C	25	Dual	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	0.156 in	3.96 mm	Copper Alloy	Solder	Polyester Thermoplastic	Green	Cantilever	Non Specified - Dual Edge	Through Hole
EDAC Inc. 306-025-521-107	Gold	2	50	-40 °C	105 ░C	25	Dual	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	0.156 in	3.96 mm	Copper Alloy	Solder	Polyester Thermoplastic	Green	Cantilever	Non Specified - Dual Edge	Panel Mount Through Hole	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 306-025-420-168	Tin	2	50	-40 °C	105 ░C	25	Dual	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	0.156 in	3.96 mm	Copper Alloy	Solder	Polyester Thermoplastic	Green	Cantilever	Non Specified - Dual Edge	Panel Mount Through Hole			Card Guides	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 306-025-420-104	Tin	2	50	-40 °C	105 ░C	25	Dual	1	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	0.156 in	3.96 mm	Copper Alloy	Solder	Polyester Thermoplastic	Green	Cantilever	Non Specified - Dual Edge	Panel Mount Through Hole				Flush Mount Top Opening Unthreaded	3.96 mm	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.31

Description

General part information

306-025 Series

50 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green

Documents

Technical documentation and resources
