Specification	EZ-600-716F-X

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-600
Center Contact Material	Beryllium Copper, Brass
Center Contact Plating	Silver
Connector Style	7/16 DIN
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	5 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Shield Termination	Crimp
Voltage Rating	1000 V

EZ-600 Series

Part	Voltage Rating	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Body Finish	Body Material	Housing Color	Fastening Type	Connector Style	Contact Termination	Frequency - Max	Number of Ports	Cable Group	Center Contact Material	Connector Type	Mounting Type	Impedance	Shield Termination	Mating Cycles	Ingress Protection IP Rating	Ingress Protection Description	Insertion Loss
McGill Microwave Systems EZ-600-TM-RP	500 V	Gold	-40 °C	85 °C	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Silver	Threaded	RP-TNC	Push On	3 GHz	1	LMR-600	Beryllium Copper	Female Socket Plug	Free Hanging (In-Line)	50 Ohm	Crimp

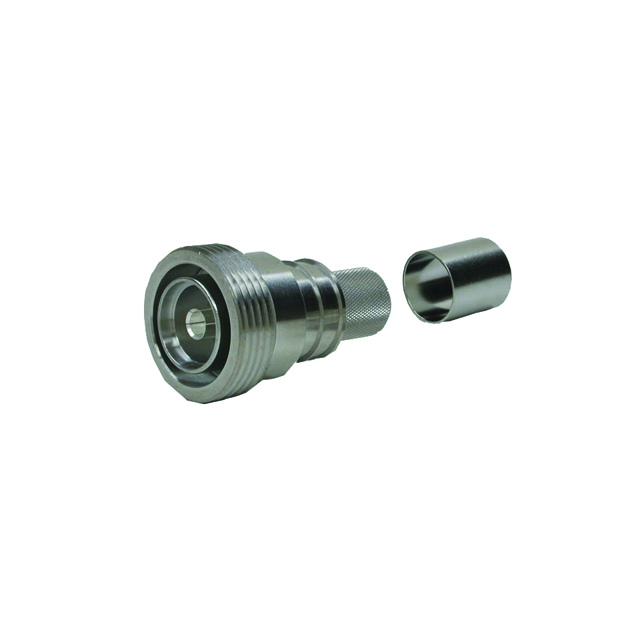

McGill Microwave Systems EZ-600-716F-X	1000 V	Silver	-55 °C	155 °C	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Silver	Threaded	7/16 DIN	Solder	5 GHz	1	LMR-600	Beryllium Copper Brass	Female Socket Jack	Free Hanging (In-Line)	50 Ohm	Crimp	500 cycles

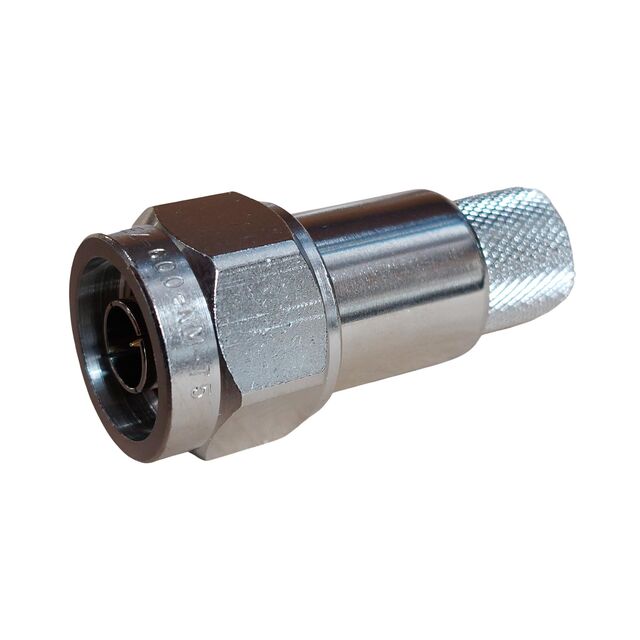

McGill Microwave Systems EZ-600-NM-75		Gold	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Nickel	Brass	Silver	Threaded	N Type	Push On	2 GHz	1	LMR-600-75	Beryllium Copper	Male Pin Plug	Free Hanging (In-Line)	75 Ohm	Crimp
McGill Microwave Systems EZ-600-716M-X		Gold	-55 °C	155 °C	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Silver	Threaded	7/16 DIN	Push On	3 GHz	1	LMR-600	Beryllium Copper	Male Pin Plug	Free Hanging (In-Line)	50 Ohm	Crimp		IP68	Dust Tight Waterproof	0.05 dB
McGill Microwave Systems EZ-600-QNF-X		Gold	-40 °C	125 °C	Polytetrafluoroethylene (PTFE)	Tin	Brass	Silver	Snap-On	QN	Push On	6000 MHz	1	LMR-600	Beryllium Copper	Female Socket Jack	Free Hanging (In-Line)	50 Ohm	Crimp	100 cycles
McGill Microwave Systems EZ-600-QNM-X		Gold	-40 °C	125 °C	Polytetrafluoroethylene (PTFE)	Tin	Brass	Silver	Snap-On	QN	Push On	6000 MHz	1	LMR-600	Beryllium Copper	Male Pin Plug	Free Hanging (In-Line)	50 Ohm	Crimp	100 cycles
McGill Microwave Systems EZ-600-FM-75-X		Gold	-40 °C	125 °C	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Silver	Threaded	F Type	Push On	1 GHz	1	LMR-600-75	Beryllium Copper	Male Pin Plug	Free Hanging (In-Line)	75 Ohm	Crimp	500 cycles
McGill Microwave Systems EZ-600-4310M-X		Gold	-40 °C	125 °C	Polytetrafluoroethylene (PTFE)	Tin	Brass	Silver	Threaded	4.3/10	Push On	6000 MHz	1	LMR-600	Beryllium Copper	Male Pin Plug	Free Hanging (In-Line)	50 Ohm	Crimp	100 cycles
McGill Microwave Systems EZ-600-TF-RP	500 V	Gold	-40 °C	85 °C	Polytetrafluoroethylene (PTFE)	White Bronze	Brass	Silver	Threaded	RP-TNC	Push On	3 GHz	1	LMR-600	Beryllium Copper	Jack Male Pin	Free Hanging (In-Line)	50 Ohm	Crimp
McGill Microwave Systems EZ-600-TF-X
