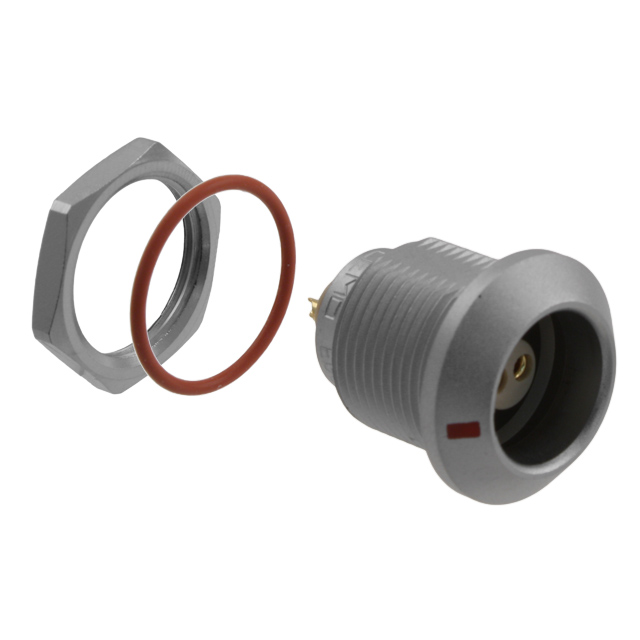

EGG.0K.302.CLL

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.0K.302.CLL

Active

LEMO

CONN RCPT FMALE 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.21
		10	$ 30.31
		25	$ 27.49
		50	$ 25.58
		100	$ 23.86
		250	$ 21.82

Description

General part information

EGG.0K Series

2 Position Circular Connector Receptacle, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGG.0K.302.CLL	EGG.0K Series

Color	Silver	Silver, Black
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	59 Áin	59 Áin
Contact Finish Thickness - Mating	1.5 Ám	1.5 Ám
Contact Material	Bronze	Bronze, Alumel, Chromel
Current Rating (Amps)	10 A	2 - 10 A
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount
Number of Positions	2	2 - 9
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 309
Shielding	Shielded	Shielded
Termination	-	Crimp, Solder

EGG.0K Series

CONN RCPT FMALE 2POS GOLD CRIMP

Part	Mounting Feature	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination	Ingress Protection	Material Flammability Rating	Shell Material	Fastening Type	Shell Finish	Primary Material	Connector Type	Current Rating (Amps)	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Shielding	Color	Shell Size - Insert	Orientation	Mounting Type
LEMO EGG.0K.302.CYM	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Gold	Crimp	IP66/IP68	UL94 V-0	Brass	Push-Pull	Chrome	Metal	Receptacle, Female Sockets	10 A	Bronze	-55 °C	200 °C	2	Shielded	Silver	302	G
LEMO EGG.0K.306.KLL	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Gold		IP66/IP68	UL94 V-0	Brass	Push-Pull		Metal	Receptacle, Female Sockets	2.5 A	Bronze	-55 °C	200 °C	6	Shielded	Black	306	G
LEMO EGG.0K.303.CLL	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Gold		IP66/IP68	UL94 V-0	Brass	Push-Pull	Chrome	Metal	Receptacle, Female Sockets	8 A	Bronze	-55 °C	200 °C		Shielded	Silver	303	G
LEMO EGG.0K.302.CLL	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Gold		IP66/IP68	UL94 V-0	Brass	Push-Pull	Chrome	Metal	Receptacle, Female Sockets	10 A	Bronze	-55 °C	200 °C	2	Shielded	Silver	302	G
LEMO EGG.0K.901.CLK	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)			Gold		IP66/IP68	UL94 V-0	Brass	Push-Pull	Chrome	Metal	Receptacle, Female Sockets	10 A	Alumel, Chromel	-55 °C	200 °C	2	Shielded	Silver	302	G
LEMO EGG.0K.309.KLL	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Gold		IP66/IP68	UL94 V-0	Brass	Push-Pull		Metal	Receptacle, Female Sockets	2 A	Bronze	-55 °C	200 °C	9	Shielded	Black	309	G
LEMO EGG.0K.307.CLL	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Gold		IP66/IP68	UL94 V-0	Brass	Push-Pull	Chrome	Metal	Receptacle, Female Sockets	2.5 A	Bronze	-55 °C	200 °C	7	Shielded	Silver	307	G
LEMO EGG.0K.309.CLN	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Gold	Solder	IP66/IP68	UL94 V-0	Brass	Push-Pull	Chrome	Metal	Receptacle, Female Sockets	2 A	Bronze	-55 °C	200 °C	9	Shielded	Silver	309	G	Panel Mount, Through Hole
LEMO EGG.0K.303.CYM	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Gold	Crimp	IP66/IP68	UL94 V-0	Brass	Push-Pull	Chrome	Metal	Receptacle, Female Sockets	8 A	Bronze	-55 °C	200 °C		Shielded	Silver	303	G
LEMO EGG.0K.304.CLL	Bulkhead - Rear Side Nut	Polyetheretherketone (PEEK)	59 Áin	1.5 Ám	Gold		IP66/IP68	UL94 V-0	Brass	Push-Pull	Chrome	Metal	Receptacle, Female Sockets	7 A	Bronze	-55 °C	200 °C	4	Shielded	Silver	304	G
