FHG.2K.308.CLAK90

Active

LEMO

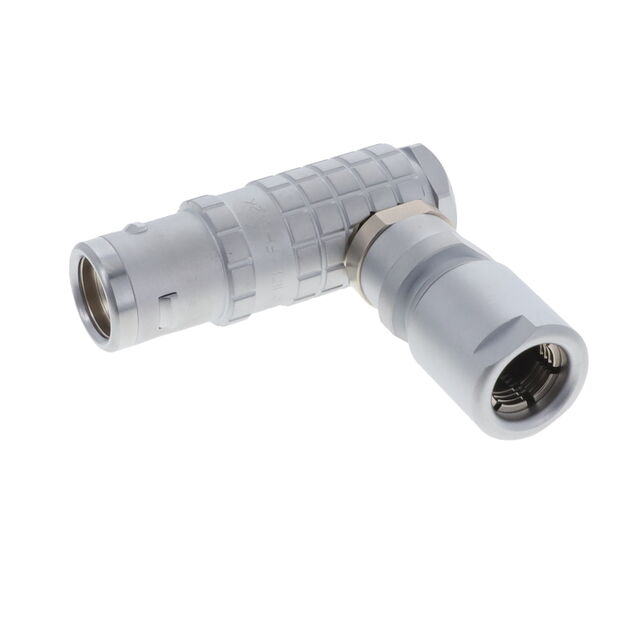

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

FHG.2K.308.CLAK90

Active

LEMO

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 241.49
		10	$ 223.78

Description

General part information

FHG.2K Series

8 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FHG.2K.308.CLAK90	FHG.2K Series

	-	-
Backshell Material, Plating	Brass, Chrome	Brass, Chrome
Cable Opening	-	0.319 - 0.335 in
Cable Opening	-	8.1 - 8.5 mm
Cable Opening	-	0.28 - 0.299 in
Cable Opening	-	7.1 - 7.6 mm
Cable Opening	-	8 mm
Cable Opening	-	0.295 - 0.315 in
Cable Opening	-	4.6 - 9.6 mm
Cable Opening	-	5 mm
Cable Opening	-	0.181 - 0.378 in
Cable Opening	-	0.197 - 0.394 in
Cable Opening	-	7.5 mm
Cable Opening	-	10 mm
Color	Silver	Silver
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	10 A	5 - 25 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions	8	2 - 19
Operating Temperature [Max]	200 °C	200 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	308	302 - 319
Shielding	Shielded	Shielded
Termination	-	Crimp

FHG.2K Series

CONN PLUG MALE 3POS GOLD CRIMP

Part	Termination	Mounting Type	Shielding	Shell Finish	Fastening Type	Current Rating (Amps)	Connector Type	Color	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Orientation	Cable Opening [custom]	Cable Opening [custom]	Insert Material	Ingress Protection	Shell Size - Insert	Backshell Material, Plating	Primary Material	Contact Finish - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Number of Positions	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
LEMO FHG.2K.303.CYCC85Z	Crimp	Free Hanging (In-Line), Right Angle	Shielded	Chrome	Push-Pull	17 A	Male Pins, Plug	Silver	Brass	-55 °C	200 °C	UL94 V-0	G	0.319 in, 0.335 in	8.1 mm, 8.5 mm	Polyetheretherketone (PEEK)	IP66/IP68	303	Brass, Chrome	Metal	Gold	Brass	1 µm	39.4 µin	Backshell
LEMO FHG.2K.312.CYCC85	Crimp	Free Hanging (In-Line), Right Angle	Shielded	Chrome	Push-Pull	7 A	Male Pins, Plug	Silver	Brass	-55 °C	200 °C	UL94 V-0	G	0.319 in, 0.335 in	8.1 mm, 8.5 mm	Polyetheretherketone (PEEK)	IP66/IP68	312	Brass, Chrome	Metal	Gold	Brass	1 µm	39.4 µin	Backshell	12
LEMO FHG.2K.318.CLAC85		Free Hanging (In-Line), Right Angle	Shielded	Chrome	Push-Pull	5.5 Amps	Male Pins, Plug	Silver	Brass	-55 °C	200 °C	UL94 V-0	G	0.319 in, 0.335 in	8.1 mm, 8.5 mm	Polyetheretherketone (PEEK)	IP66/IP68	318	Brass, Chrome	Metal	Gold	Brass	1 µm	39.4 µin	Backshell	18
LEMO FHG.2K.310.CYCC85Z	Crimp	Free Hanging (In-Line), Right Angle	Shielded	Chrome	Push-Pull	8 A	Male Pins, Plug	Silver	Brass	-55 °C	200 °C	UL94 V-0	G	0.319 in, 0.335 in	8.1 mm, 8.5 mm	Polyetheretherketone (PEEK)	IP66/IP68	310	Brass, Chrome	Metal	Gold	Brass	1 µm	39.4 µin	Backshell	10
LEMO FHG.2K.310.CLAC80		Free Hanging (In-Line), Right Angle	Shielded	Chrome	Push-Pull	8 A	Male Pins, Plug	Silver	Brass	-55 °C	200 °C	UL94 V-0	G			Polyetheretherketone (PEEK)	IP66/IP68	310	Brass, Chrome	Metal	Gold	Brass	1 µm	39.4 µin	Backshell	10	0.299 in	7.6 mm	8 mm	0.315 in
LEMO FHG.2K.308.CLAC65
LEMO FHG.2K.319.CLAC50Z		Free Hanging (In-Line), Right Angle	Shielded	Chrome	Push-Pull	5 A	Male Pins, Plug	Silver	Brass	-55 °C	200 °C	UL94 V-0	G			Polyetheretherketone (PEEK)	IP66/IP68	319	Brass, Chrome	Metal	Gold	Brass	1 µm	39.4 µin	Backshell	19					4.6 mm	5 mm	0.181 in	0.197 in
LEMO FHG.2K.308.CLAK90		Free Hanging (In-Line), Right Angle	Shielded	Chrome	Push-Pull	10 A	Male Pins, Plug	Silver	Brass	-55 °C	200 °C	UL94 V-0	G			Polyetheretherketone (PEEK)	IP66/IP68	308	Brass, Chrome	Metal	Gold	Brass	1 µm	39.4 µin	Backshell	8
LEMO FHG.2K.302.CLAC85		Free Hanging (In-Line), Right Angle	Shielded	Chrome	Push-Pull	25 A	Male Pins, Plug	Silver	Brass	-55 °C	200 °C	UL94 V-0	G	0.319 in, 0.335 in	8.1 mm, 8.5 mm	Polyetheretherketone (PEEK)	IP66/IP68	302	Brass, Chrome	Metal	Gold	Brass	1 µm	39.4 µin	Backshell	2
LEMO FHG.2K.302.CLAC85Z		Free Hanging (In-Line), Right Angle	Shielded	Chrome	Push-Pull	25 A	Male Pins, Plug	Silver	Brass	-55 °C	200 °C	UL94 V-0	G	0.319 in, 0.335 in	8.1 mm, 8.5 mm	Polyetheretherketone (PEEK)	IP66/IP68	302	Brass, Chrome	Metal	Gold	Brass	1 µm	39.4 µin	Backshell	2
