55410.81051
LTBebm-papst Inc.
FAN BLWR CF 180X96MM 220/240VAC
55410.81051
LTBebm-papst Inc.
FAN BLWR CF 180X96MM 220/240VAC
Description
General part information
55410 Series

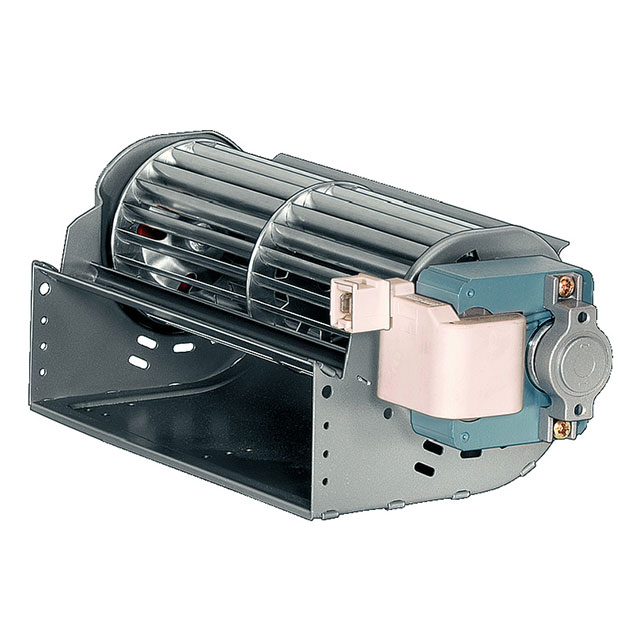

Fan Blower, Cross Flow 240VAC Rectangular - 260mm L x 83mm H (60mm Dia) Sleeve 72.0 CFM (2.02m³/min) 2 Terminals
Technical Specifications
Parameters and characteristics for this part
| Specification | 55410.81051 |
|---|---|
| Air Flow | 72 CFM |
| Approval Agency | VDE, CSA, UL |
| Bearing Type | Sleeve |
| Fan Type | Blower, Cross Flow |
| Material - Blade | Aluminum |
| Material - Frame | Steel |
| Noise | 50 dB |
| Power (Watts) | 35 W |
| Size / Dimension Height | 83 mm |
| Size / Dimension Length | 260 mm |
| Size / Dimension Shape | Rectangular |
| Termination | 2 Terminals |
| Termination Count | 2 |
| Voltage - Rated | 240 V |
| Width | 96 mm |
