FN2010-20-08

Active

TE Connectivity Raychem Cable Protection

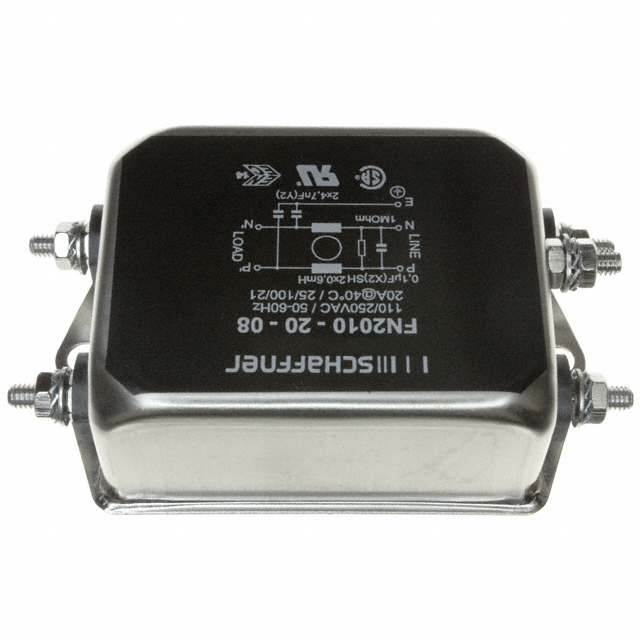

LINE FILTER 250VAC 20A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN2010-20-08

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 20A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN2010-20-08

Applications	General Purpose
Approval Agency	CSA, ENEC, UR
Configuration	Single Stage
Current	20 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	600 µH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Threaded Post (M4)
Voltage - Rated AC	250 V

Schaffner FN2010 Series

Part	Operating Temperature [custom]	Current	Applications	Voltage - Rated AC	Mounting Type	Frequency - Operating	Configuration	Inductance	Termination Style	Filter Type	Approval Agency
TE Connectivity Raychem Cable Protection FN2010A-10-06	-25 °C 100 °C	10 A	Safety	250 V	Chassis Mount	400 Hz	Single Stage	800 µH	Quick Connect	Single Phase	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2010-6-07	-25 °C 100 °C	6 A	General Purpose	250 V	Chassis Mount	400 Hz	Single Stage	1 mH	Wire Leads	Single Phase	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2010B-10-06	-25 °C 100 °C	10 A	General Purpose	250 V	Chassis Mount	400 Hz	Single Stage	800 µH	Quick Connect	Single Phase	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2010-60-24	-25 °C 100 °C	60 A	General Purpose	250 V	Chassis Mount	400 Hz	Single Stage	1 mH	Threaded Post (M6)	Single Phase	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2010-16-06	-25 °C 100 °C	16 A	General Purpose	250 V	Chassis Mount	400 Hz	Single Stage	700 µH	Quick Connect	Single Phase	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2010-20-06	-25 °C 100 °C	20 A	General Purpose	250 V	Chassis Mount	400 Hz	Single Stage	600 µH	Quick Connect	Single Phase	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2010B-3-07	-25 °C 100 °C	3 A	General Purpose	250 V	Chassis Mount	400 Hz	Single Stage	2.5 mH	Wire Leads	Single Phase	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2010A-20-06	-25 °C 100 °C	20 A	Safety	250 V	Chassis Mount	400 Hz	Single Stage	600 µH	Quick Connect	Single Phase	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2010-20-08	-25 °C 100 °C	20 A	General Purpose	250 V	Chassis Mount	400 Hz	Single Stage	600 µH	Threaded Post (M4)	Single Phase	CSA ENEC UR
TE Connectivity Raychem Cable Protection FN2010-1-06	-25 °C 100 °C	1 A	General Purpose	250 V	Chassis Mount	400 Hz	Single Stage	12 mH	Quick Connect	Single Phase	CSA ENEC UR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 32.48
		10	$ 26.49
		25	$ 24.42
		40	$ 23.43
		80	$ 22.03
		230	$ 22.00

Description

General part information

Schaffner FN2010 Series

Single Phase EMC/EMI Line Filter 20 A 250V DC ~ 400Hz Single Stage Threaded Post (M4)
