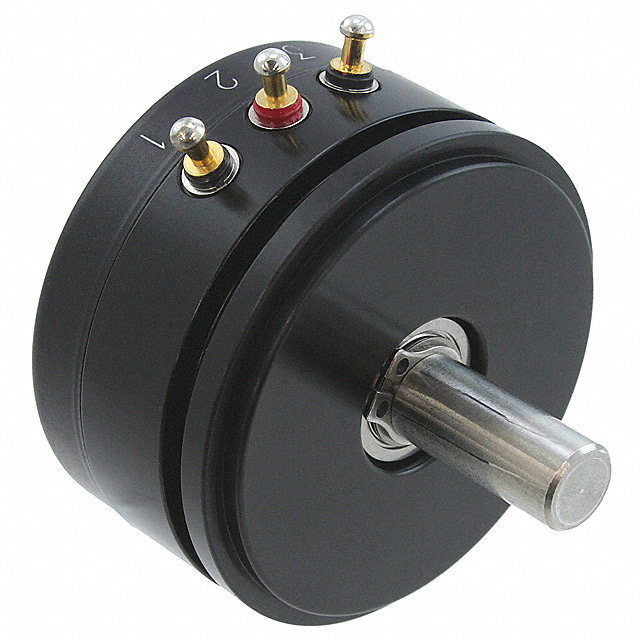

Specification	6009-1003-030

Actuator Type	Round Shaft
For Measuring	Rotary Position
Linearity Tolerance	0.5 %
Mounting Type	Custom
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Output	Resistive
Output Signal	Clockwise Increase
Package / Case	Module
Resistance	10 kOhm
Resistance Tolerance (%)	10 %
Rotation Angle - Electrical, Mechanical (Maximum)	340 °
Rotation Angle - Electrical, Mechanical (Minimum)	0 °
Rotation Angle - Electrical, Mechanical (Mode)	Continuous
Technology	Resistive
Termination Style	Solder Turret

6009 Series

Part	Rotation Angle - Electrical, Mechanical (Mode)	Rotation Angle - Electrical, Mechanical (Minimum)	Rotation Angle - Electrical, Mechanical (Maximum)	Linearity Tolerance	Termination Style	Output	Resistance	Technology	For Measuring	Operating Temperature (Max)	Operating Temperature (Min)	Resistance Tolerance (%)	Mounting Type	Output Signal	Package / Case	Actuator Type
TE Connectivity AMP Connectors 6009-1003-030	Continuous	0 °	340 °	0.5 %	Solder Turret	Resistive	10 kOhm	Resistive	Rotary Position	125 °C	-65 °C	10 %	Custom	Clockwise Increase	Module	Round Shaft
