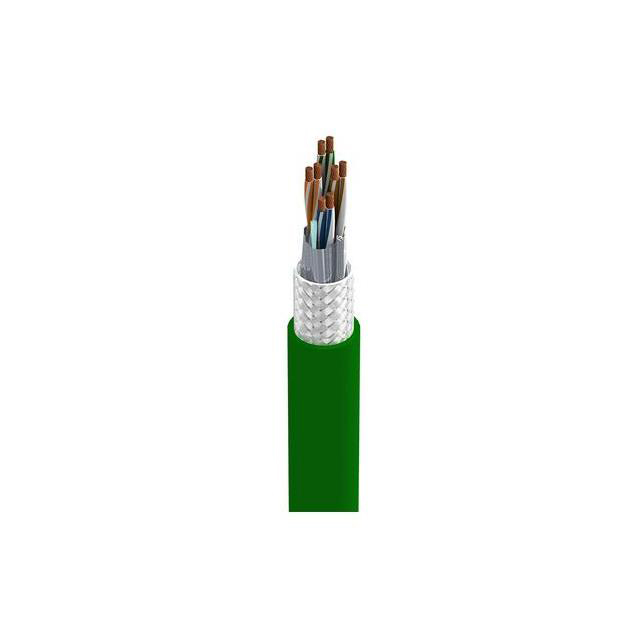

Specification	7203A X4P1000

Cable Type	Multi-Pair
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Bare
Conductor Strand Count	41
Conductor Strand Gauge	40 AWG
Features	Drain Wire, Oil Resistant
Jacket (Insulation) Diameter	0.362 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Green
Length	1000 ft
Number of Conductors	8
Number of Conductors - Pair	4
Operating Temperature (Max)	60 °C
Operating Temperature (Min)	-20 °C
Shield Coverage	85%, 100%
Shield Material	Aluminum, Tinned, Copper
Shield Type	Braid, Foil
Usage	Industrial
Voltage	300 V
Wire Gauge	24 AWG

7203A Series

Part	Wire Gauge	Jacket (Insulation) Material	Features	Conductor Insulation	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter	Usage	Number of Conductors - Pair	Number of Conductors	Voltage	Jacket Color	Shield Type	Operating Temperature (Max)	Operating Temperature (Min)	Conductor Strand Count	Conductor Strand Gauge	Length	Conductor Material	Shield Material	Shield Coverage
Belden Inc. 7203A X4P1000	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire Oil Resistant	Foam Polyethylene (FPE)	Multi-Pair	0.045 in	0.362 in	Industrial	4	8	300 V	Green	Braid Foil	60 °C	-20 °C	41	40 AWG	1000 ft	Bare Copper	Aluminum Copper Tinned	100% 85%
Belden Inc. 7203A X4P500	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire Oil Resistant	Foam Polyethylene (FPE)	Multi-Pair	0.045 in	0.362 in	Industrial	4	8	300 V	Green	Braid Foil	60 °C	-20 °C	41	40 AWG	500 ft	Bare Copper	Aluminum Copper Tinned	100% 85%
