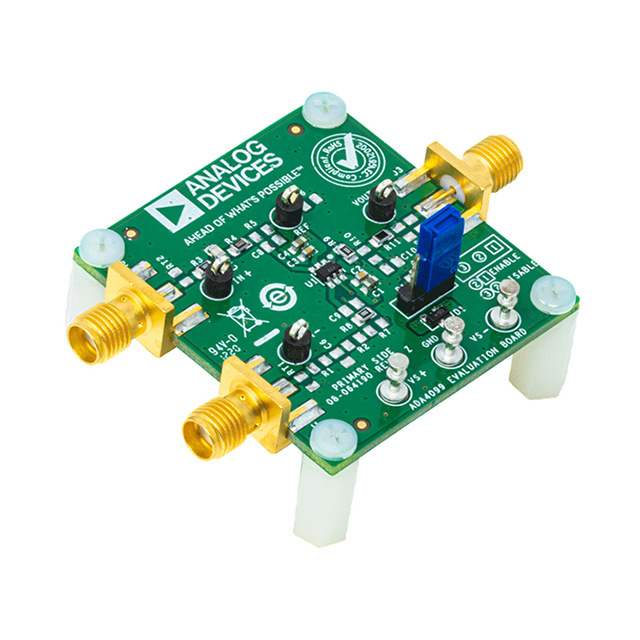

Specification	EVAL-ADA4099-1HUJZ

Amplifier Type	General Purpose, Standard (General Purpose)
Board Type	Fully Populated
Channels per IC (Count)	1
Channels per IC (Single)	1
Channels per IC (Type)	Single
Contents	Board
Current - Output / Channel	50 mA
Current - Supply (Main IC)	0.00175 mA
Gain Bandwidth Product	8 MHz
Output Type	Rail-to-Rail, Single-Ended
Slew Rate	5.5 V/µs
Supplied Contents	Board(s)
Supply Configuration	Dual, Single
Utilized IC / Part	ADA4099-1
Voltage - Supply (Dual) Maximum (Magnitude)	25 V
Voltage - Supply (Dual) Minimum (Magnitude)	1.575 V
Voltage - Supply (Single) Maximum	50 V
Voltage - Supply (Single) Minimum	3.15 V

ADA4099 Series

Part	Amplifier Type	Current - Supply (Main IC)	Current - Output / Channel	Board Type	Supplied Contents	Output Type	Supply Configuration	Voltage - Supply (Dual) Minimum (Magnitude)	Voltage - Supply (Single) Maximum	Voltage - Supply (Single) Minimum	Voltage - Supply (Dual) Maximum (Magnitude)	Channels per IC (Single)	Channels per IC (Type)	Channels per IC (Count)	Utilized IC / Part	Contents	Gain Bandwidth Product	Slew Rate	Channels per IC (Dual)
Analog Devices Inc./Maxim Integrated EVAL-ADA4099-1HUJZ	General Purpose Standard (General Purpose)	0.00175 mA	50 mA	Fully Populated	Board(s)	Rail-to-Rail Single-Ended	Dual Single	1.575 V	50 V	3.15 V	25 V	1	Single	1	ADA4099-1	Board	8 MHz	5.5 V/µs
Analog Devices Inc./Maxim Integrated EVAL-ADA4099-2EBZ	General Purpose Standard (General Purpose)	0.00175 mA	50 mA	Fully Populated	Board(s)	Rail-to-Rail Single-Ended	Dual Single	1.575 V	50 V	3.15 V	25 V		Dual	2	ADA4099-2	Board	8 MHz	5.5 V/µs	2
