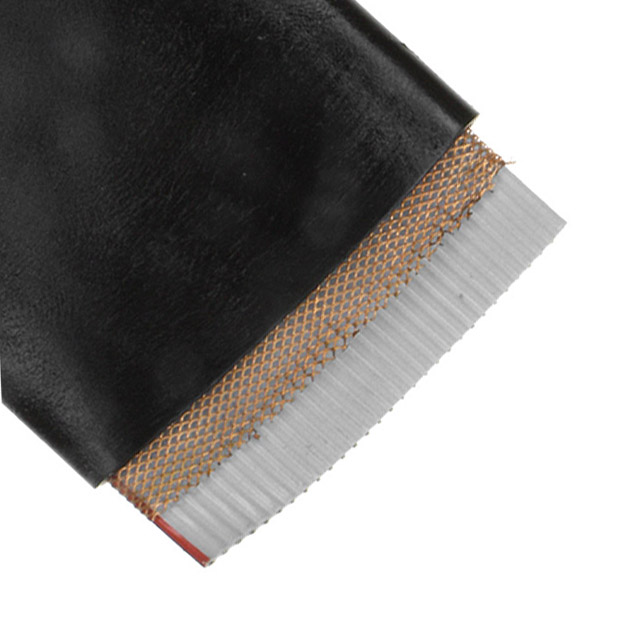

Specification	3517/30 100SF

Cable Type	Flat Jacket, Flat Cable
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	36 AWG
Features	Splice Free
First Conductor Mark	Red
Insulation Resistance	10 GOhm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	25 ft, 100 ft, 5 ft, 10 ft, 12 in, 50 ft
Length	Enter Number of Feet in Order Quantity
Number of Conductors	30
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-20 °C
Pitch	0.05 in
Ratings	Style, 2912, UL
Ribbon Thickness	0.11 in
Ribbon Width	1.63 in
Shielding	Shielded
Voltage	300 V
Wire Gauge	28 AWG

3517 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Length	Jacket Color	Shielding	Features	Ribbon Thickness	Jacket (Insulation) Material	Ribbon Width	Number of Conductors	Wire Gauge	Pitch	Cable Type	Ratings	Conductor Strand Count	Conductor Strand Gauge	Voltage	Insulation Resistance	Conductor Material	First Conductor Mark	Length
3M Electronic Specialty 3517/10 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	0.63 in	10	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
3M Electronic Specialty 3517/37 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	1.98 in	37	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
3M Electronic Specialty 3517/20 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	1.13 in	20	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
3M Electronic Specialty 3517/25-100	-20 °C	80 °C	100 ft	Gray	Shielded		0.11 in	Poly-Vinyl Chloride (PVC)	1.38 in	25	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3517/16 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	0.93 in	16	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3517/60 100	-20 °C	80 °C	100 ft	Gray	Shielded		0.11 in	Poly-Vinyl Chloride (PVC)	3.13 in	60	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
3M Electronic Specialty 3517/15 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	0.88 in	15	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
3M Electronic Specialty 3517/14 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	0.83 in	14	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3517/60 100SF	-20 °C	80 °C	5 ft 10 ft 25 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	3.13 in	60	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
3M Electronic Specialty 3517/14 100	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded		0.11 in	Poly-Vinyl Chloride (PVC)	0.83 in	14	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
