3517 Series

Catalog

FLAT CABLE 10CONDUCTORS 28AWG 300V BLACK 30.48M ROLL

Part	Operating Temperature (Min)	Operating Temperature (Max)	Length	Jacket Color	Shielding	Features	Ribbon Thickness	Jacket (Insulation) Material	Ribbon Width	Number of Conductors	Wire Gauge	Pitch	Cable Type	Ratings	Conductor Strand Count	Conductor Strand Gauge	Voltage	Insulation Resistance	Conductor Material	First Conductor Mark	Length
3M Electronic Specialty 3517/10 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	0.63 in	10	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
3M Electronic Specialty 3517/37 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	1.98 in	37	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red

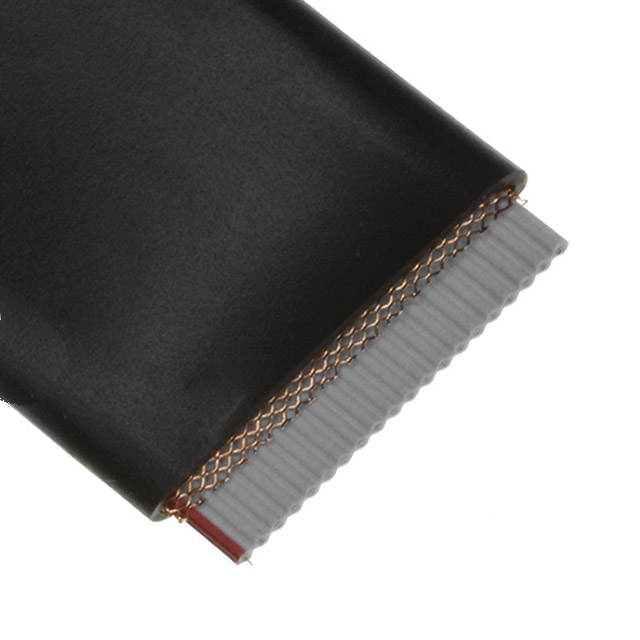

3M Electronic Specialty 3517/20 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	1.13 in	20	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
3M Electronic Specialty 3517/25-100	-20 °C	80 °C	100 ft	Gray	Shielded		0.11 in	Poly-Vinyl Chloride (PVC)	1.38 in	25	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3517/16 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	0.93 in	16	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3517/60 100	-20 °C	80 °C	100 ft	Gray	Shielded		0.11 in	Poly-Vinyl Chloride (PVC)	3.13 in	60	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
3M Electronic Specialty 3517/15 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	0.88 in	15	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
3M Electronic Specialty 3517/14 100SF	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	0.83 in	14	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red	Enter Number of Feet in Order Quantity
3M Electronic Specialty 3517/60 100SF	-20 °C	80 °C	5 ft 10 ft 25 ft 100 ft	Gray	Shielded	Splice Free	0.11 in	Poly-Vinyl Chloride (PVC)	3.13 in	60	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
3M Electronic Specialty 3517/14 100	-20 °C	80 °C	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	Gray	Shielded		0.11 in	Poly-Vinyl Chloride (PVC)	0.83 in	14	28 AWG	0.05 in	Flat Cable Flat Jacket	2912 Style UL	7 Strands	36 AWG	300 V	10 GOhm	Copper Tinned	Red
