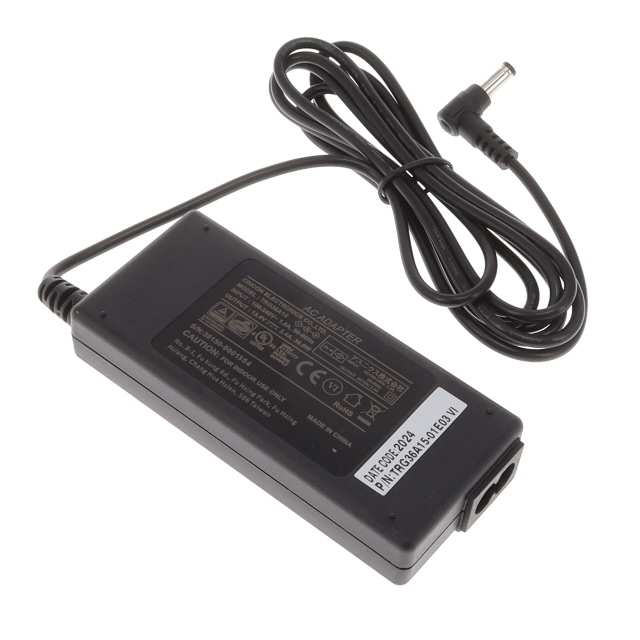

TRG36A15-01E03 VI

Obsolete

Cincon Electronics Co. LTD

AC/DC DESKTOP ADAPTER 15V 36W

Search across all available documentation for this part.

Obsolete

Cincon Electronics Co. LTD

AC/DC DESKTOP ADAPTER 15V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	TRG36A15-01E03 VI

Applications	ITE (Commercial)
Approval Agency	PSE, cULus, TUV, GS, FCC, CE
Cord Length	70.9 in
Cord Length	1.8 m
Current - Output (Max) [Max]	2.4 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug R/A
Output Connector [custom]	12 mm
Output Connector [diameter]	5.5 mm, 2.5 mm
Polarization	Positive Center
Power (Watts)	36 W
Region Utilized	International
Size / Dimension [x]	111 mm
Size / Dimension [x]	4.37 in
Size / Dimension [y]	51 mm
Size / Dimension [y]	2.01 in
Size / Dimension [z]	0.89 in
Size / Dimension [z]	22.5 mm
Standard Number	60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	15 VDC

Part	Standard Number	Region Utilized	Applications	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Cord Length	Cord Length	No Load Power Consumption [Max]	Approval Agency	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Form	Input Type	Power (Watts)	Input Connector	Output Connector [custom]	Output Connector	Output Connector [diameter]	Polarization
Cincon Electronics Co. LTD TRG36A15-01E03 VI	60950-1 62368-1	International	ITE (Commercial)	CoC Tier 2 Level VI	-20 C	60 °C	2.4 A	70.9 in	1.8 m	75 mW	CE cULus FCC GS PSE TUV	15 VDC	90 VAC	264 VAC	111 mm	51 mm	2.01 in	0.89 in	22.5 mm	4.37 in	Desktop (Class II)	Cord	36 W	IEC 320-C8	12 mm	Barrel Plug R/A	2.5 mm 5.5 mm	Positive Center

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 14.96

General part information

15V 36 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
