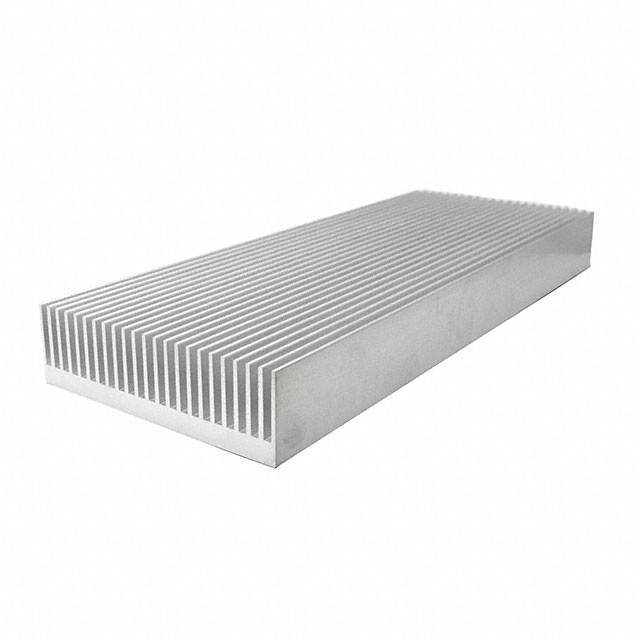

Specification	ATS-EXL102-300-R0

Attachment Method	Adhesive
Fin Height	1.063 in
Length	11.811 in
Material	Aluminum
Material Finish	Degreased
Shape	Fins, Rectangular
Thermal Resistance	1.2 °C/W, 4.01 °C/W
Type	Top Mount, Extrusion
Width	7.047 in

ATS-EXL Series

Heat Sinks Extrusion Profile, AL6063, Length 1220mm, Width 240mm, Height 55mm

...

Part	Material Finish	Material	Thermal Resistance	Width	Type	Fin Height	Length	Shape	Attachment Method
Advanced Thermal Solutions Inc. ATS-EXL98-300-R0	Degreased	Aluminum	0.95 °C/W 4.69 °C/W	4.724 in	Extrusion Top Mount	1.417 in	11.811 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL65-1220-R0	Degreased	Aluminum	4.5 °C/W 11.7 °C/W	1.614 in	Extrusion Top Mount	0.984 in	48.032 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL110-1220-R0	Degreased	Aluminum	0.72 °C/W 2.47 °C/W	7.874 in	Extrusion Top Mount	1.772 in	48.032 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL76-300-R1	Degreased	Aluminum	0.5 °C/W 5.2 °C/W	3.677 in	Extrusion Top Mount	1.575 in	11.811 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL67-1220-R0	Degreased	Aluminum	5.8 °C/W 21.7 °C/W	1.083 in	Extrusion Top Mount	0.531 in	48.032 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL103-300-R0	Degreased	Aluminum	1.12 °C/W 4.61 °C/W	4.528 in	Extrusion Top Mount	1.323 in	11.811 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL61-1220-R0	Degreased	Aluminum	29 °C/W 57 °C/W	0.591 in	Extrusion Top Mount	0.236 in	48.032 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL84-300-R0	Degreased	Aluminum		2.756 in	Extrusion Top Mount	0.984 in	11.811 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL64-300-R0	Degreased	Aluminum	3.9 °C/W 18.5 °C/W	0.984 in	Extrusion Top Mount	0.866 in	11.811 in	Fins Rectangular	Adhesive
Advanced Thermal Solutions Inc. ATS-EXL77-300-R0	Degreased	Aluminum	1 °C/W 12 °C/W	4.754 in	Extrusion Top Mount	0.654 in	11.811 in	Fins Rectangular	Adhesive
