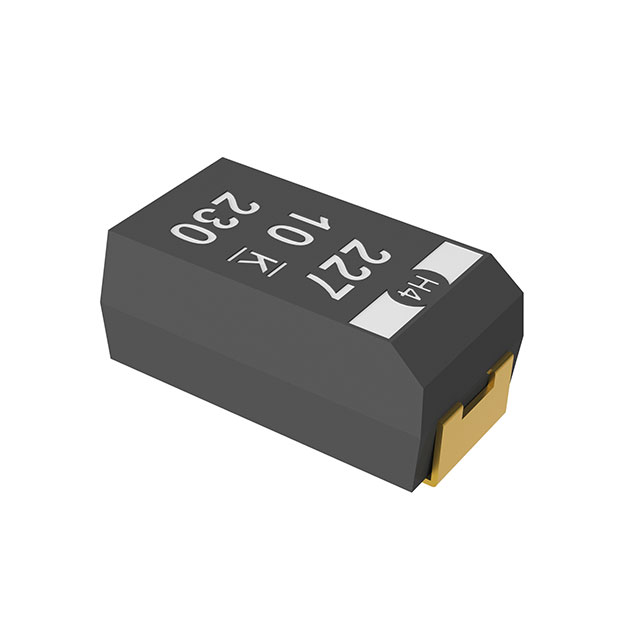

T502B106K016AG6110

Active

KEMET

TANTALUM CAPACITOR, TANTALUM (DRY/SOLID)

Search across all available documentation for this part.

Active

KEMET

TANTALUM CAPACITOR, TANTALUM (DRY/SOLID)

Technical Specifications

Parameters and characteristics for this part

Specification	T502B106K016AG6110

Capacitance	10 µF
ESR (Equivalent Series Resistance)	2.8 Ohm
Features	High Temperature
Height - Seated (Max) [Max] [z]	2.1 mm
Height - Seated (Max) [Max] [z]	0.083 "
Lifetime @ Temp.	500 Hrs
Manufacturer Size Code	B
Mounting Type	Surface Mount
Operating Temperature [Max]	230 °C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	10 %
Type	Molded
Voltage - Rated	16 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Features	Capacitance	Type	Package / Case	Package / Case	Mounting Type	Voltage - Rated	Manufacturer Size Code	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Lifetime @ Temp.
KEMET T502B106M016AG6210	230 °C	-55 °C	2.8 Ohm	2.1 mm	0.083 "	20 %	High Temperature	10 µF	Molded	1411	3528 Metric	Surface Mount	16 V	B	0.11 in	2.8 mm	0.138 "	3.5 mm	500 Hrs
KEMET T502B106K016AG6110	230 °C	-55 °C	2.8 Ohm	2.1 mm	0.083 "	10 %	High Temperature	10 µF	Molded	1411	3528 Metric	Surface Mount	16 V	B	0.11 in	2.8 mm	0.138 "	3.5 mm	500 Hrs
KEMET T502B106M016AG63107280	230 °C	-55 °C	2.8 Ohm	2.1 mm	0.083 "	20 %	High Temperature	10 µF	Molded	1411	3528 Metric	Surface Mount	16 V	B	0.11 in	2.8 mm	0.138 "	3.5 mm	500 Hrs
KEMET T502B106M016AG61107280	230 °C	-55 °C	2.8 Ohm	2.1 mm	0.083 "	20 %	High Temperature	10 µF	Molded	1411	3528 Metric	Surface Mount	16 V	B	0.11 in	2.8 mm	0.138 "	3.5 mm	500 Hrs
KEMET T502B106M016AG6310	230 °C	-55 °C	2.8 Ohm	2.1 mm	0.083 "	20 %	High Temperature	10 µF	Molded	1411	3528 Metric	Surface Mount	16 V	B	0.11 in	2.8 mm	0.138 "	3.5 mm	500 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 µF Molded Tantalum Capacitors 16 V 1411 (3528 Metric) 2.8Ohm @ 100kHz
