INND-TS56BAB

Active

Inolux

7-SEG DISPLAY - THROUGH HOLE - SINGLE DIGIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

INND-TS56BAB

Active

Inolux

7-SEG DISPLAY - THROUGH HOLE - SINGLE DIGIT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	INND-TS56BAB	INND-TS56 Series

Color	Blue	Blue, Yellow, Amber, Green
Common Pin	Common Anode	Common Anode, Common Cathode
Current - Test	20 mA	20 mA
Digit/Alpha Size	0.56 in	0.56 in
Digit/Alpha Size	14.22 mm	14.22 mm
Display Type	7-Segment	7-Segment
Millicandela Rating	27 mcd	27 - 218 mcd
Number of Characters [custom]	1	1
Package / Case	0.6 in	0.6 in
Package / Case	15.24 mm	15.24 mm
Package / Case	10-DIP	10-DIP
Power Dissipation (Max) [Max]	114 mW	70 - 114 mW
Size / Dimension [x]	0.315 "	0.315 "
Size / Dimension [x]	8 mm	8 mm
Size / Dimension [y]	12.6 mm	12.6 mm
Size / Dimension [y]	0.496 in	0.496 in
Size / Dimension [z]	19 mm	19 mm
Size / Dimension [z]	0.748 "	0.748 "
Voltage - Forward (Vf) (Typ)	3.2 V	2 - 3.2 V
Wavelength - Peak	465 nm	465 - 592 nm

INND-TS56 Series

7-SEG DISPLAY - THROUGH HOLE - SINGLE DIGIT

Part	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Wavelength - Peak	Color	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Millicandela Rating	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Display Type	Package / Case	Package / Case	Package / Case	Current - Test	Common Pin
Inolux INND-TS56BAB	3.2 V	1	465 nm	Blue	0.56 in	14.22 mm	114 mW	27 mcd	12.6 mm	19 mm	0.496 in	0.315 "	0.748 "	8 mm	7-Segment	0.6 in	15.24 mm	10-DIP	20 mA	Common Anode
Inolux INND-TS56YCB	2 V	1	592 nm	Yellow	0.56 in	14.22 mm	70 mW	50 mcd	12.6 mm	19 mm	0.496 in	0.315 "	0.748 "	8 mm	7-Segment	0.6 in	15.24 mm	10-DIP	20 mA	Common Cathode
Inolux INND-TS56ACG	2 V	1		Amber	0.56 in	14.22 mm	70 mW	70 mcd	12.6 mm	19 mm	0.496 in	0.315 "	0.748 "	8 mm	7-Segment	0.6 in	15.24 mm	10-DIP	20 mA	Common Cathode
Inolux INND-TS56GCB	3.2 V	1	525 nm	Green	0.56 in	14.22 mm	114 mW	218 mcd	12.6 mm	19 mm	0.496 in	0.315 "	0.748 "	8 mm	7-Segment	0.6 in	15.24 mm	10-DIP	20 mA	Common Cathode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	145	$ 0.69
		440	$ 0.63
		945	$ 0.61
Digikey	Bulk	1	$ 1.51
		10	$ 1.07
		80	$ 0.83
		440	$ 0.70
		945	$ 0.65
		2940	$ 0.60
		5880	$ 0.58
		11760	$ 0.56

Description

General part information

INND-TS56 Series

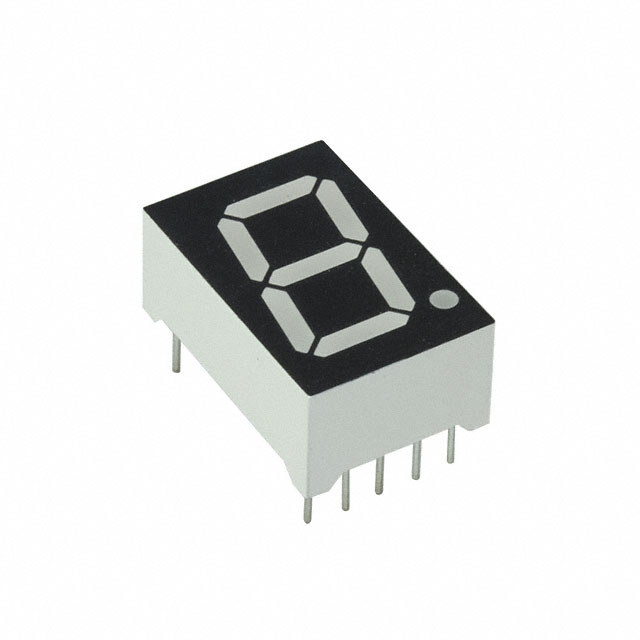

Display Modules - LED Character and Numeric Blue 7-Segment 1 Character Common Anode 3.2V 20mA 0.748" H x 0.496" W x 0.315" D (19.00mm x 12.60mm x 8.00mm) 10-DIP (0.600", 15.24mm)
