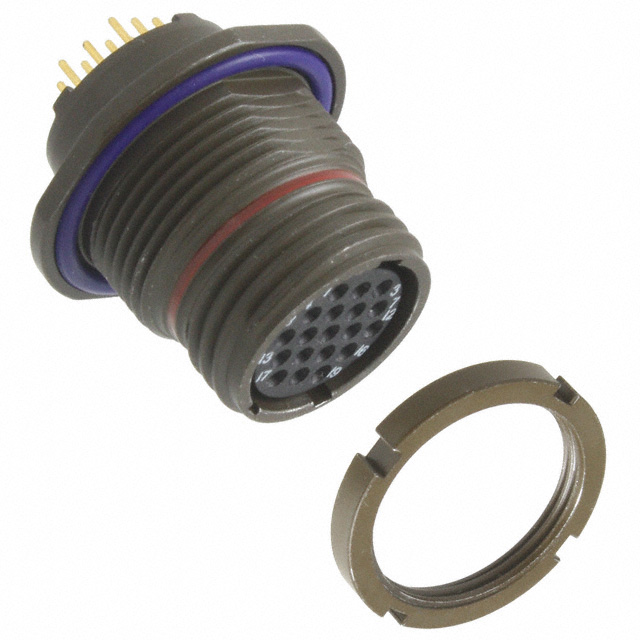

Specification	MKJ1C7W9-19DA

Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Current Rating	5 A
Fastening Type	Threaded
Mounting Feature	Bulkhead
Mounting Type	Panel Mount, Through Hole
Number of Positions	19
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Orientation	A
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert (Maximum)	19
Shell Size - Insert (Minimum)	9
Shielding	Shielded
Termination	Solder
Voltage Rating	500 V

MKJ1C Series

Part	Features	Shell Material	Fastening Type	Voltage Rating	Mounting Feature	Ingress Protection	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Color	Contact Material	Connector Type	Current Rating	Operating Temperature (Max)	Operating Temperature (Min)	Primary Material	Mounting Type	Shielding	Number of Positions	Contact Finish - Mating	Orientation	Applications	Insert Material	Shell Finish	Termination	Contact Finish Thickness - Mating
ITT Cannon, LLC MKJ1C7W13-37BD
ITT Cannon, LLC MKJ1C7F9-19DA
ITT Cannon, LLC MKJ1C7W7-10DD
ITT Cannon, LLC MKJ1C7F6-7DB
ITT Cannon, LLC MKJ1C7F6-7BB	Shielded	Aluminum	Threaded	500 V	Bulkhead Front Side Nut	Environment Resistant	6	7	Silver	Copper Alloy	Male Pins Receptacle	5 A	150 °C	-55 °C	Metal	Panel Mount Through Hole	Shielded	7	Gold	B	Aerospace Communication Systems Industrial Instrumentation Medical	Thermoplastic	Electroless Nickel	Solder
ITT Cannon, LLC MKJ1C7W10-26DA		Aluminum Alloy	Threaded		Bulkhead Front Side Nut		10	26	Olive Drab	Copper Alloy	Female Sockets Receptacle	5 A	175 °C	-65 °C	Metal	Panel Mount Through Hole	Shielded	26	Gold	N (Normal)	Aerospace Communication Systems Industrial Instrumentation Medical	Thermoplastic	Olive Drab Cadmium	Solder	50 µin
ITT Cannon, LLC MKJ1C7F7-10DA	Shielded	Aluminum	Threaded	500 V	Bulkhead Front Side Nut	Environment Resistant	7	10 S	Silver	Copper Alloy	Female Sockets Receptacle	5 A	150 °C	-55 °C	Metal	Panel Mount	Shielded	10	Gold	N (Normal)	Aerospace Communication Systems Industrial Instrumentation Medical	Thermoplastic	Electroless Nickel	Solder
ITT Cannon, LLC MKJ1C7F13-37BB
ITT Cannon, LLC MKJ1C2F10-26DB		Aluminum Alloy	Threaded		Flange		10	26	Silver	Copper Alloy	Female Sockets Receptacle	5 A	175 °C	-65 °C	Metal	Panel Mount Through Hole	Shielded	26	Gold	B	Aerospace Communication Systems Industrial Instrumentation Medical	Thermoplastic	Electroless Nickel	Solder	50 µin
ITT Cannon, LLC MKJ1C7W6-7DB
