SDI40-19-U2-P6

Obsolete

CUI Inc.

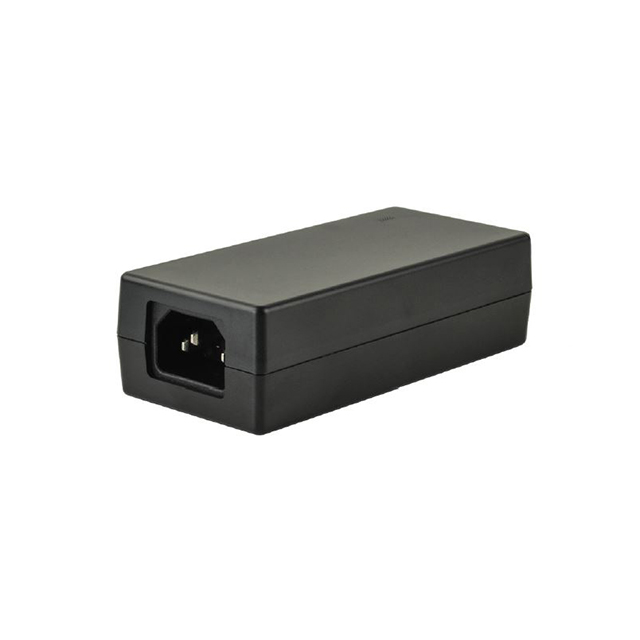

AC/DC DESKTOP ADAPTER 19V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPower Supply Safety Standards, Agencies, and Marks

SDI40-19-U2-P6

Obsolete

CUI Inc.

AC/DC DESKTOP ADAPTER 19V 40W

Deep-Dive with AI

DocumentsPower Supply Safety Standards, Agencies, and Marks

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDI40-19-U2-P6

Applications	ITE (Commercial)
Approval Agency	CSA, SIQ, CB Scheme, CCC, EN, FCC, IEC, RCM, UL, TUV
Cord Length	60.2 in
Cord Length	1.53 m
Current - Output (Max) [Max]	2.1 A
Efficiency	Level VI
Form	Desktop (Class I)
Input Connector	IEC 320-C14
Input Type	Cord
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	Europe
Size / Dimension [x]	111 mm
Size / Dimension [x]	4.37 in
Size / Dimension [y]	52 mm
Size / Dimension [y]	2.05 in
Size / Dimension [z]	32.3 mm
Size / Dimension [z]	1.27 in
Standard Number	61000-3-3, 55032 Class B, 55024, 61000-3-2, 60950-1, C22.2 No. 60950-1, 61204-3
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	19 V

SDI40 Series

Part	Output Connector [diameter]	Output Connector [x]	Output Connector	Form	Efficiency	Approval Agency	Polarization	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Applications	Cord Length	Cord Length	Current - Output (Max) [Max]	Operating Temperature [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Output	Region Utilized	No Load Power Consumption [Max]	Input Type	Input Connector	Standard Number	Output Connector [z]	Output Connector [y]
CUI Inc. SDI40-24-U-P6	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	Level VI	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	Positive Center	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	ITE (Commercial)	60.2 in	1.53 m	1.7 A	40 °C	90 VAC	264 VAC	41 W	24 V	International	75 mW	Cord	IEC 320-C14	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1
CUI Inc. SDI40-19-U2-P6	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	Level VI	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	Positive Center	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	ITE (Commercial)	60.2 in	1.53 m	2.1 A	40 °C	90 VAC	264 VAC	40 W	19 V	Europe	75 mW	Cord	IEC 320-C14	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1
CUI Inc. SDI40-24-UC-P6	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	Level VI	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	Positive Center	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	ITE (Commercial)	60.2 in	1.53 m	1.7 A	40 °C	90 VAC	264 VAC	41 W	24 V	North America	75 mW	Cord	IEC 320-C14	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1
CUI Inc. SDI40-19-UD-P6	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class II)	Level VI	CE cULus GS PSE	Positive Center	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	ITE (Commercial)	60.2 in	1.53 m	2.1 A	40 °C	90 VAC	264 VAC	40 W	19 V	International	75 mW	Cord	IEC 320-C8
CUI Inc. SDI40-12-UDC-P6	2.5 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class II)	Level VI	CE cULus GS PSE	Positive Center	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	ITE (Commercial)	60.2 in	1.53 m	3 A	40 °C	90 VAC	264 VAC	36 W	12 V	North America	75 mW	Cord	IEC 320-C8
CUI Inc. SDI40-15-U-P6R	2.5 mm 5.5 mm	9.5 mm	Barrel Plug R/A	Desktop (Class I)	Level VI	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	Positive Center	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	ITE (Commercial)	60.2 in	1.53 m	2.7 A	40 °C	90 VAC	264 VAC	41 W	15 VDC	International	75 mW	Cord	IEC 320-C14	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1
CUI Inc. SDI40-24-U2-P5	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class I)	Level VI	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	Positive Center	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	ITE (Commercial)	60.2 in	1.53 m	1.7 A	40 °C	90 VAC	264 VAC	41 W	24 V	Europe	75 mW	Cord	IEC 320-C14	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1
CUI Inc. SDI40-24-UDC-P5	2.1 mm 5.5 mm	9.5 mm	Barrel Plug	Desktop (Class II)	Level VI	CE cULus GS PSE	Positive Center	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	ITE (Commercial)	60.2 in	1.53 m	1.7 A	40 °C	90 VAC	264 VAC	41 W	24 V	North America	75 mW	Cord	IEC 320-C8
CUI Inc. SDI40-19-U-P6R	2.5 mm 5.5 mm	9.5 mm	Barrel Plug R/A	Desktop (Class I)	Level VI	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	Positive Center	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	ITE (Commercial)	60.2 in	1.53 m	2.1 A	40 °C	90 VAC	264 VAC	40 W	19 V	International	75 mW	Cord	IEC 320-C14	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1
CUI Inc. SDI40-12-U2-P5R		2.1 mm	Barrel Plug R/A	Desktop (Class I)	Level VI	CB Scheme CCC CSA EN FCC IEC RCM SIQ TUV UL	Positive Center	32.3 mm	52 mm	111 mm	1.27 in	2.05 in	4.37 in	ITE (Commercial)	60.2 in	1.53 m	3 A	40 °C	90 VAC	264 VAC	36 W	12 V	Europe	75 mW	Cord	IEC 320-C14	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 61204-3 C22.2 No. 60950-1	9.5 mm	5.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SDI40 Series

19V 40 W AC/DC External Desktop (Class I) Adapter Cord Input
