HGP.0S.302.CLLPV

Active

LEMO

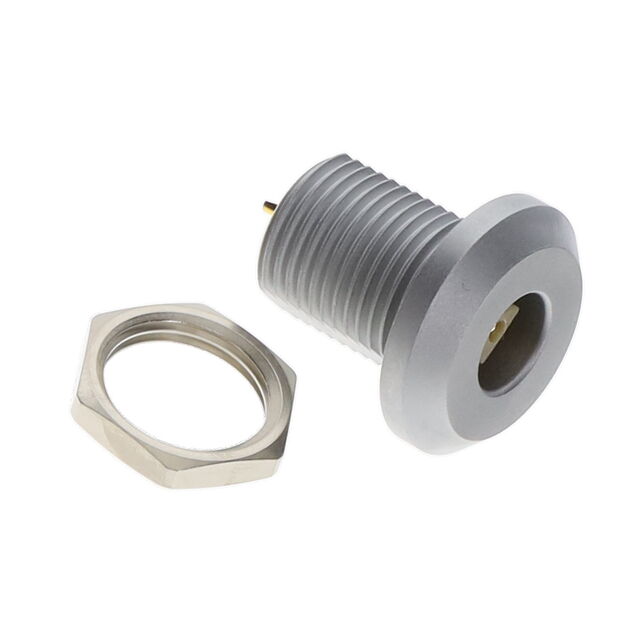

CONN CIRC RCPT 2P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HGP.0S.302.CLLPV

Active

LEMO

CONN CIRC RCPT 2P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.84

Description

General part information

HGP.0S Series

2 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HGP.0S.302.CLLPV	HGP.0S Series

Applications	Military, Aviation	Military, Aviation
Body Finish	-	Chrome
Body Material	-	Brass
Cable Group	-	178, RG-174, 174A, 188A, 196A, 316B, 178B, RG-122, 174
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Color	Silver	Silver
Connector Style	-	Triaxial, Coaxial
Connector Type	Female Sockets, Male Pins, Receptacle	Female Sockets, Male Pins, Receptacle, Female Socket, Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Bronze, Brass	Bronze, Brass
Contact Termination	-	Solder Cup
Current Rating (Amps)	10 A	4 - 10 A
Dielectric Material	-	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Features	Vacuumtight, Potted	Vacuumtight, Potted
Housing Color	-	Silver
Impedance	-	50 Ohms
Includes	-	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mating Cycles	-	1000
Mounting Feature	Bulkhead - Rear Side Nut	Bulkhead - Rear Side Nut
Number of Positions	2	1 - 4
Operating Temperature [Max]	100 °C	100 - 250 °C
Operating Temperature [Min]	-20 C	-55 - -20 C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome
Shell Material	Brass	Brass
Shell Size - Insert	302	302 - 403
Shield Termination	-	Solder
Shielding	Shielded	Shielded

HGP.0S Series

CONN CIRC RCPT 4P GOLD SLDR CUP

Part	Shell Finish	Fastening Type	Ingress Protection	Number of Positions	Orientation	Material Flammability Rating	Features	Shell Size - Insert	Contact Material	Mounting Feature	Shielding	Applications	Contact Finish - Mating	Shell Material	Insert Material	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Primary Material	Color	Connector Type	Center Contact Plating	Impedance	Housing Color	Body Finish	Cable Group	Shield Termination	Contact Termination	Includes	Dielectric Material	Center Contact Material	Body Material	Connector Style	Mating Cycles
LEMO HGP.0S.304.CLLPV	Chrome	Push-Pull	IP68 - Dust Tight, Waterproof	4	Keyed	UL94 V-0	Potted, Vacuumtight	304	Brass, Bronze	Bulkhead - Rear Side Nut	Shielded	Aviation, Military	Gold	Brass	Polyetheretherketone (PEEK)	7 A	100 °C	-20 C	Metal	Silver	Female Sockets, Male Pins, Receptacle
LEMO HGP.0S.650.CTLPV		Push-Pull	IP68 - Dust Tight, Waterproof				Vacuumtight			Bulkhead - Rear Side Nut							250 °C	-55 °C			Female Socket, Receptacle	Gold	50 Ohms	Silver	Chrome	178, RG-174	Solder	Solder Cup	1 Connector, 1 Lockwasher, 1 Nut	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass	Triaxial	1000
LEMO HGP.0S.250.CTLPV		Push-Pull	IP68 - Dust Tight, Waterproof				Vacuumtight			Bulkhead - Rear Side Nut							100 °C	-20 C			Female Socket, Receptacle	Gold	50 Ohms	Silver	Chrome	174, 174A, 178B, 188A, 196A, 316B, RG-122	Solder	Solder Cup	1 Connector, 1 Lockwasher, 1 Nut	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Brass	Coaxial	1000
LEMO HGP.0S.302.CLLPV	Chrome	Push-Pull	IP68 - Dust Tight, Waterproof	2	Keyed	UL94 V-0	Potted, Vacuumtight	302	Brass, Bronze	Bulkhead - Rear Side Nut	Shielded	Aviation, Military	Gold	Brass	Polyetheretherketone (PEEK)	10 A	100 °C	-20 C	Metal	Silver	Female Sockets, Male Pins, Receptacle
LEMO HGP.0S.304.CLLP	Chrome	Push-Pull	IP68 - Dust Tight, Waterproof	4	Keyed	UL94 V-0	Potted	304	Brass, Bronze	Bulkhead - Rear Side Nut	Shielded	Aviation, Military	Gold	Brass	Polyetheretherketone (PEEK)	7 A	100 °C	-20 C	Metal	Silver	Female Sockets, Male Pins, Receptacle
LEMO HGP.0S.403.CTLPV	Chrome	Push-Pull	IP68 - Dust Tight, Waterproof	1	Keyed		Potted, Vacuumtight	403	Bronze	Bulkhead - Rear Side Nut	Shielded	Aviation, Military	Gold	Brass	Polytetrafluoroethylene (PTFE)	4 A	100 °C	-20 C	Metal	Silver	Receptacle, Female Sockets
