CYT3DLABFBQ1AESGS

Active

Infineon Technologies

TRAVEO-2 CLUST.2.5DGRAPH

Search across all available documentation for this part.

Active

Infineon Technologies

TRAVEO-2 CLUST.2.5DGRAPH

Technical Specifications

Parameters and characteristics for this part

Specification	CYT3DLABFBQ1AESGS

Connectivity	CANbus, UART/USART, Ethernet, I2C, SPI, LINbus
Core Processor	ARM® Cortex®-M7F, ARM® Cortex®-M0+
Core Size [custom]	32-Bit Dual-Core
Data Converters	12 b, 48
EEPROM Size	128 K
Mounting Type	Surface Mount
Number of I/O	108
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	External, Internal
Package / Case	216-LQFP Exposed Pad
Peripherals	DMA, Temp Sensor, I2S, WDT, LVD
Program Memory Size	4.06 MB
Program Memory Type	FLASH
RAM Size	384 K
Speed	240 MHz
Speed	100 MHz
Supplier Device Package	216-TEQFP (24x24)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.7 V

Part	Mounting Type	RAM Size	Peripherals	EEPROM Size	Data Converters	Core Size [custom]	Connectivity	Number of I/O	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Supplier Device Package	Core Processor	Speed	Speed	Oscillator Type	Program Memory Type	Package / Case	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]
Infineon Technologies CYT3DLABEBQ1AESGST	Surface Mount	384 K	DMA I2S LVD Temp Sensor WDT	128 K	12 b 48	32-Bit Dual-Core	CANbus Ethernet I2C LINbus SPI UART/USART	108	2.7 V	5.5 V	216-TEQFP (24x24)	ARM® Cortex®-M0+ ARM® Cortex®-M7F	240 MHz	100 MHz	External Internal	FLASH	216-LQFP Exposed Pad	4.06 MB	105 °C	-40 °C
Infineon Technologies CYT3DLABFBQ1AESGS	Surface Mount	384 K	DMA I2S LVD Temp Sensor WDT	128 K	12 b 48	32-Bit Dual-Core	CANbus Ethernet I2C LINbus SPI UART/USART	108	2.7 V	5.5 V	216-TEQFP (24x24)	ARM® Cortex®-M0+ ARM® Cortex®-M7F	240 MHz	100 MHz	External Internal	FLASH	216-LQFP Exposed Pad	4.06 MB	105 °C	-40 °C
Infineon Technologies CYT3DLABABQ1AESGST	Surface Mount	384 K	DMA I2S LVD Temp Sensor WDT	128 K		32-Bit Dual-Core	DMA I2S LVD Temp Sensor WDT	108	2.7 V	5.5 V	216-TQFP	ARM® Cortex®-M0+ ARM® Cortex®-M7F		240 MHz		FLASH	216-QFP	4.063 MB	105 °C	-40 °C
Infineon Technologies CYT3DLABGBQ1AESGST	Surface Mount	384 K	DMA I2S LVD Temp Sensor WDT	128 K		32-Bit Dual-Core	DMA I2S LVD Temp Sensor WDT	108	2.7 V	5.5 V	216-TQFP	ARM® Cortex®-M0+ ARM® Cortex®-M7F		240 MHz		FLASH	216-QFP	4.063 MB	105 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	400	$ 24.72

General part information

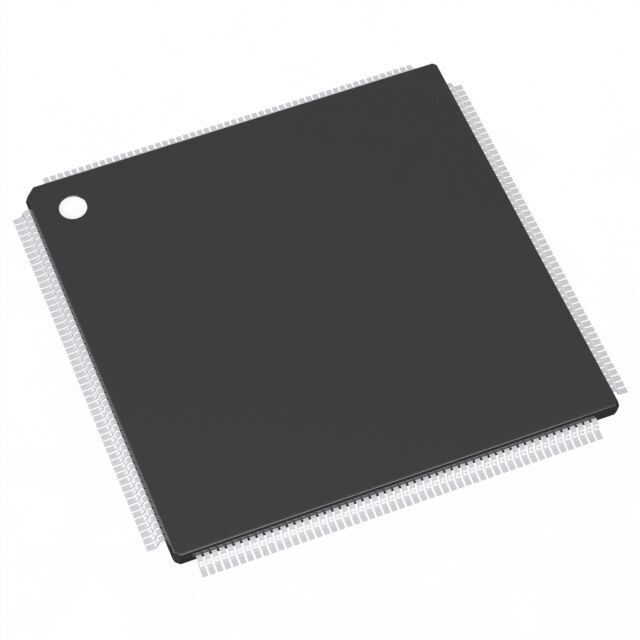

ARM® Cortex®-M0+, ARM® Cortex®-M7F Traveo™ T2G Microcontroller IC 32-Bit Dual-Core 100MHz, 240MHz 4.06MB (4.06M x 8) FLASH 216-TEQFP (24x24)
