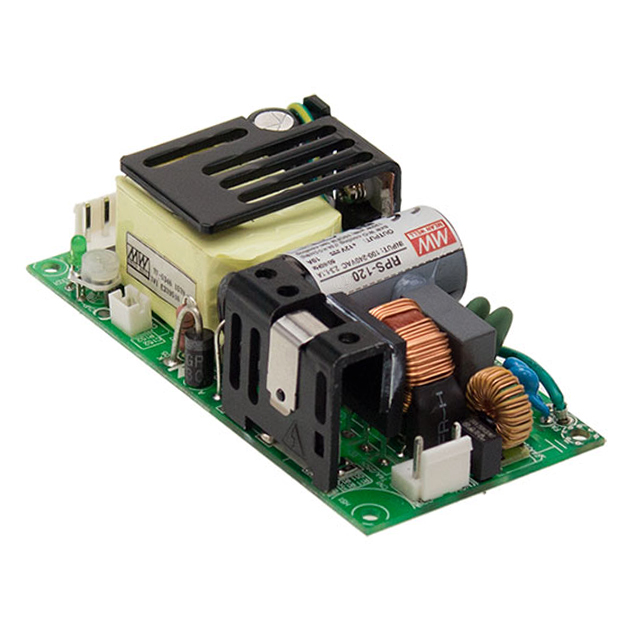

RPS-120-15
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 15V 84W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RPS-120-15
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 15V 84W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RPS-120-15 |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 5.6 A |
| Efficiency | 89 % |
| Features | Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 120 W, 84 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 29 mm, 1.14 in |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 80 VAC, 113 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 15 V |
RPS-120 Series
| Part | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Number of Outputs | Approval Agency | Type | Applications | Voltage - Output 1 | Current - Output 1 | Efficiency | Voltage - Isolation | Power (Watts) | Voltage - Input [Min] | Voltage - Input [Max] | Features | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | Chassis Mount | 85 °C | -30 °C | 1.1 in | 28 mm | 76.2 mm | 3 " | 50.8 mm | 2 in | 1 | CB CE cURus EAC TUV | Open Frame | Medical | 48 V | 2.5 A | 93.5 % | 4000 V | 120 W 150 W | 80 VAC 113 VDC | 264 VAC 370 VDC | Adjustable Output PFC Universal Input | |
MEAN WELL USA Inc. | Chassis Mount | 85 °C | -30 °C | 1.1 in | 28 mm | 76.2 mm | 3 " | 50.8 mm | 2 in | 1 | CB CE cURus EAC TUV | Open Frame | Medical | 12 V | 9.5 A | 91 % | 4000 V | 114 W | 80 VAC 113 VDC | 264 VAC 370 VDC | Adjustable Output PFC Universal Input | 142 W |
MEAN WELL USA Inc. | Chassis Mount | 85 °C | -30 °C | 1.1 in | 28 mm | 76.2 mm | 3 " | 50.8 mm | 2 in | 1 | CB CE cURus EAC TUV | Open Frame | Medical | 27 V | 4.44 A | 94 % | 4000 V | 120 W 150 W | 80 VAC 113 VDC | 264 VAC 370 VDC | Adjustable Output PFC Universal Input | |
MEAN WELL USA Inc. | Chassis Mount | 70 °C | -30 °C | 1.14 in 29 mm | 101.6 mm | 50.8 mm | 1 | CB CE cURus TUV | Open Frame | Medical | 15 V | 5.6 A | 89 % | 4000 V | 84 W 120 W | 80 VAC 113 VDC | 264 VAC 370 VDC | Adjustable Output | ||||
MEAN WELL USA Inc. | Chassis Mount | 70 °C | -30 °C | 1.57 " | 39.9 mm | 103.4 mm | 4.07 in | 62 mm | 2.44 " | 1 | CB CE cURus TUV | Enclosed | Medical | 24 V | 3.5 A | 90 % | 4000 V | 84 W 120 W | 80 VAC 113 VDC | 264 VAC 370 VDC | Adjustable Output | |
MEAN WELL USA Inc. | Chassis Mount | 70 °C | -30 °C | 1.57 " | 39.9 mm | 103.4 mm | 4.07 in | 62 mm | 2.44 " | 1 | CB CE cURus TUV | Enclosed | Medical | 12 V | 7 A | 89 % | 4000 V | 84 W 120 W | 80 VAC 113 VDC | 264 VAC 370 VDC | Adjustable Output | |
MEAN WELL USA Inc. | Chassis Mount | 70 °C | -30 °C | 1.14 in 29 mm | 101.6 mm | 50.8 mm | 1 | CB CE cURus TUV | Open Frame | Medical | 48 V | 1.75 A | 91 % | 4000 V | 84 W 120 W | 80 VAC 113 VDC | 264 VAC 370 VDC | Adjustable Output | ||||
MEAN WELL USA Inc. | Chassis Mount | 85 °C | -30 °C | 1.1 in | 28 mm | 76.2 mm | 3 " | 50.8 mm | 2 in | 1 | CB CE cURus EAC TUV | Open Frame | Medical | 24 V | 5 A | 93 % | 4000 V | 120 W 150 W | 80 VAC 113 VDC | 264 VAC 370 VDC | Adjustable Output PFC Universal Input | |
MEAN WELL USA Inc. | Chassis Mount | 70 °C | -30 °C | 1.14 in 29 mm | 101.6 mm | 50.8 mm | 1 | CB CE cURus TUV | Open Frame | Medical | 27 V | 3.15 A | 90 % | 4000 V | 85 W | 80 VAC 113 VDC | 264 VAC 370 VDC | Adjustable Output | 122 W | |||
MEAN WELL USA Inc. | Chassis Mount | 70 °C | -30 °C | 1.14 in 29 mm | 101.6 mm | 50.8 mm | 1 | CB CE cURus TUV | Open Frame | Medical | 24 V | 3.5 A | 90 % | 4000 V | 84 W 120 W | 80 VAC 113 VDC | 264 VAC 370 VDC | Adjustable Output |
