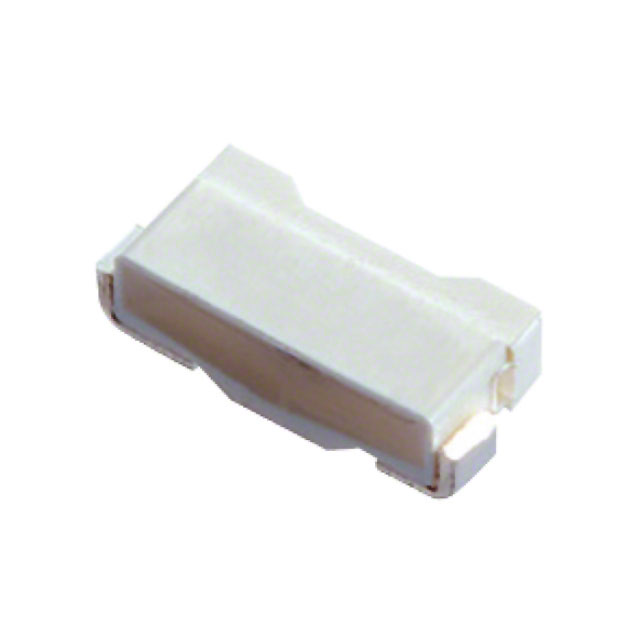

XZM2MOK81FS
SunLED
LED ORANGE CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZM2MOK81FS
SunLED
LED ORANGE CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZM2MOK81FS |
|---|---|
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.8 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2.3 mm |
| Lens Size [y] | 0.57 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 647 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 605 nm |
| Wavelength - Peak | 611 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 20000 | $ 0.16 | |
| 50000 | $ 0.15 | |||
Description
General part information
XZM2MOK81 Series
Orange 605nm LED Indication - Discrete 2.2V 2-SMD, J-Lead
