5222UL 0021000

Active

Belden Inc.

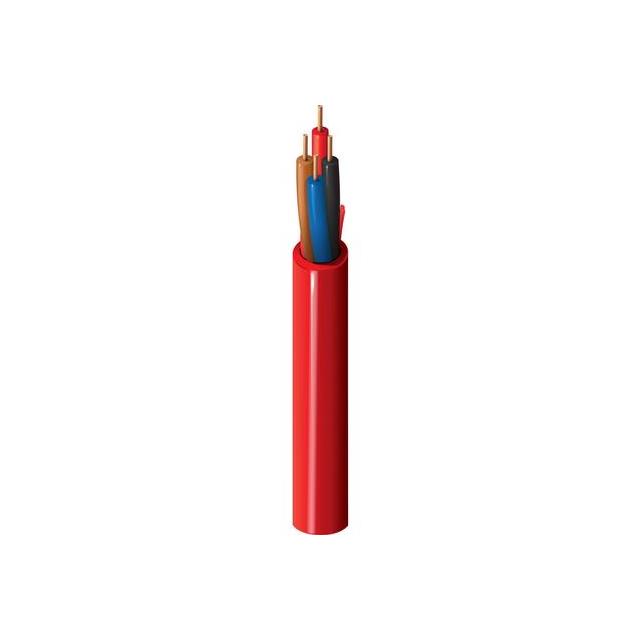

CABLE 4COND 16AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 16AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	5222UL 0021000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord, Drain Wire
Jacket (Insulation) Diameter [diameter]	4.9 mm
Jacket (Insulation) Diameter [diameter]	0.193 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Ratings	UL Style FPLR
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	16 AWG

Part	Length	Length	Number of Conductors	Conductor Material	Usage	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Wire Gauge	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Ratings	Jacket Color	Conductor Strand	Cable Type
Belden Inc. 5222UL 0021000	1000 ft	304.8 m	4	Copper Bare	Alarm Safety	Drain Wire Rip Cord	0.432 mm	0.017 in	Poly-Vinyl Chloride (PVC) Riser	16 AWG	300 V	4.9 mm	0.193 in	Polypropylene (PP)	UL Style FPLR	Red	Solid	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.49

General part information

4 Conductor Multi-Conductor Cable Red 16 AWG 1000.0' (304.8m)
