102099-5
ActiveTE Connectivity AMP Connectors

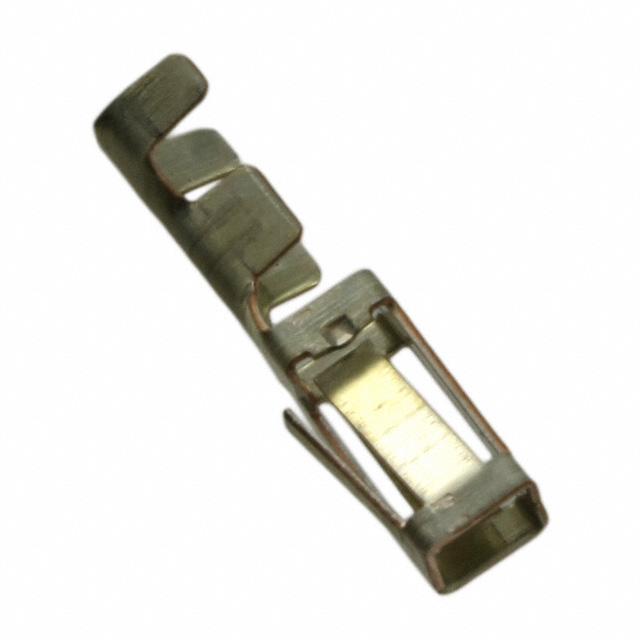

CONN SOCKET 18-22AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
102099-5
ActiveTE Connectivity AMP Connectors
CONN SOCKET 18-22AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 102099-5 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.94 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.75 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.68 | |||
| 250 | $ 0.64 | |||
| 500 | $ 0.61 | |||
| 1000 | $ 0.58 | |||
| 2500 | $ 0.54 | |||
| Tape & Reel (TR) | 5000 | $ 0.52 | ||
| 10000 | $ 0.49 | |||
| 15000 | $ 0.48 | |||
102099 Series
CONN SOCKET 18-22AWG CRIMP TIN
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Contact Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pin or Socket |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 102099-5 | 22 AWG | 17.5 AWG | Crimp | 16 µin | 0.41 µm | Tin | Socket |
Description
General part information
102099 Series
Socket Contact Tin 18-22 AWG Crimp
Documents
Technical documentation and resources
