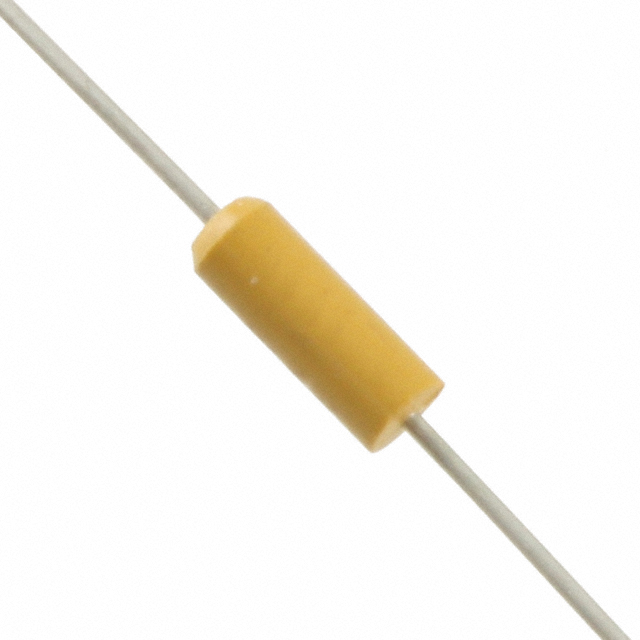

T322A474K025AT

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 25V, 10% +TOL, 10% -TOL, 0.47UF, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsKEM_T2039_T322_AXIAL_T323.pdf Datasheet +1

T322A474K025AT

Active

KEMET

TANTALUM CAPACITOR, POLARIZED, TANTALUM (DRY/SOLID), 25V, 10% +TOL, 10% -TOL, 0.47UF, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

Deep-Dive with AI

DocumentsKEM_T2039_T322_AXIAL_T323.pdf Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T322A474K025AT

Capacitance	0.47 µF
ESR (Equivalent Series Resistance)	16 Ohm
Features	General Purpose
Manufacturer Size Code	A
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Size / Dimension [diameter]	0.095 "
Size / Dimension [diameter]	2.41 mm
Size / Dimension [x]	6.6 mm
Size / Dimension [x]	0.26 in
Tolerance	10 %
Type	Molded
Voltage - Rated	25 VDC

T322A Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Capacitance	Tolerance	ESR (Equivalent Series Resistance)	Manufacturer Size Code	Mounting Type	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Features	Type	Voltage - Rated	Package / Case	Size / Dimension	Size / Dimension [custom]
KEMET T322A104K050AS	-55 °C	125 °C	100000 pF	10 %	26 Ohm	A	Through Hole	0.095 "	6.6 mm	0.26 in	2.41 mm	General Purpose	Molded	50 VDC	Axial
KEMET T322A335K010AT	-55 °C	125 °C	3.3 µF	10 %	10 Ohm	A	Through Hole	0.095 "	6.6 mm	0.26 in	2.41 mm	General Purpose	Molded	10 V	Axial
KEMET T322A335K006AS	-55 °C	125 °C	3.3 µF	10 %	13 Ohm	A	Through Hole	0.095 "	6.6 mm	0.26 in	2.41 mm	General Purpose	Molded	6 VDC	Axial
KEMET T322A225K015AS	-55 °C	125 °C	2.2 µF	10 %	8 Ohm	A	Through Hole	0.095 "	6.6 mm	0.26 in	2.41 mm	General Purpose	Molded	15 V	Axial
KEMET T322A105M020AT	-55 °C	125 °C	1 µF	20 %	10 Ohm	A	Through Hole	0.095 "	6.6 mm	0.26 in	2.41 mm	General Purpose	Molded	20 V	Axial
KEMET T322A225K015AT7200	-55 °C	125 °C	2.2 µF	10 %		A	Through Hole	0.095 "	6.6 mm	0.26 in	2.41 mm	General Purpose	Molded	15 V	Axial
KEMET T322A154K050AS	-55 °C	125 °C	0.15 ÁF	10 %	21 Ohm	A	Through Hole	0.095 "	6.6 mm	0.26 in	2.41 mm	General Purpose	Molded	50 VDC	Axial
KEMET T322A154M035AS	-55 °C	125 °C	0.15 ÁF	20 %	21 Ohm	A	Through Hole	0.095 "				General Purpose	Molded	35 V	Axial	2.41 mm	0.095 "
KEMET T322A474K025AT	-55 °C	125 °C	0.47 µF	10 %	16 Ohm	A	Through Hole	0.095 "	6.6 mm	0.26 in	2.41 mm	General Purpose	Molded	25 VDC	Axial
KEMET T322A335K006AT	-55 °C	125 °C	3.3 µF	10 %	13 Ohm	A	Through Hole	0.095 "	6.6 mm	0.26 in	2.41 mm	General Purpose	Molded	6 VDC	Axial

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.72
		10	$ 2.09
		50	$ 1.89
		100	$ 1.62
		500	$ 1.54

Description

General part information

T322A Series

0.47 µF Molded Tantalum Capacitors 25 V Axial 16Ohm

Documents

Technical documentation and resources

KEM_T2039_T322_AXIAL_T323.pdf

Datasheet
