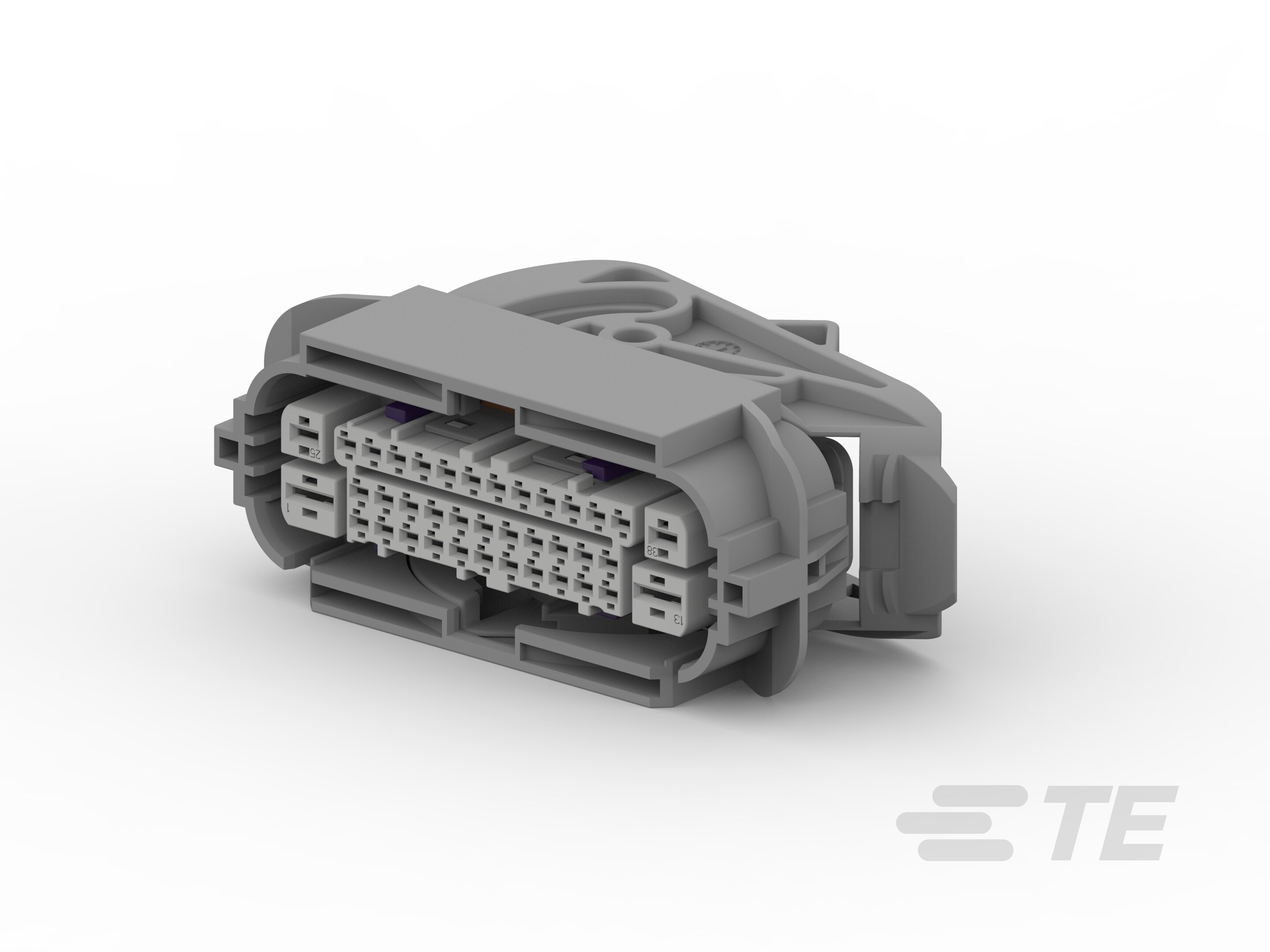

HYB SLD 38P PLUG ASSY(L) TYPE2-3-2219210-3

3-2219210-3

Active

TE Connectivity AMP Connectors

HYB SLD 38P PLUG ASSY(L) TYPE2

HYB SLD 38P PLUG ASSY(L) TYPE2-3-2219210-3

3-2219210-3

Active

TE Connectivity AMP Connectors

HYB SLD 38P PLUG ASSY(L) TYPE2

Description Series Pricing CAD Documents

Description

General part information

AMP MCP Hybrids Series

38 Position Housing, Housing for Female Terminals, Wire-to-Board, 4 mm [.157 in] Centerline, Sealable, Gray, Wire & Cable, Board Mount, 2 Code, Hybrid

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — free Log in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

HYB SEALED 38POS PLUG ASSEMBLY

Hybrid Sealed 38Pos plug assembly Product Specification

ENG_CD_2219210_E2.pdf

3-2219210-3 | Datasheet

AMP MCP Hybrids Series

Part	Pitch	Fastening Type	Number of Positions	Insulation Material	Number of Rows	Contact Termination	Contact Type	Connector Type	Color	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Accessory Type	For Use With/Related Products	Features	Row Spacing

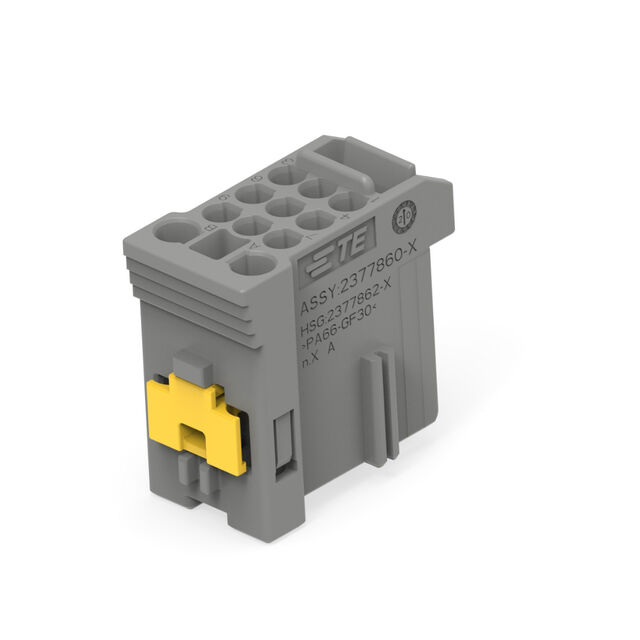

TE Connectivity AMP Connectors 2377860-2	0.157 in	Locking Ramp	11	Nylon 6/6 Polyamide (PA66)	4	Crimp	Female Socket	Plug	Gray	-40 °C	105 °C	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2219215-1			38										Cap (Cover)	MCP Series

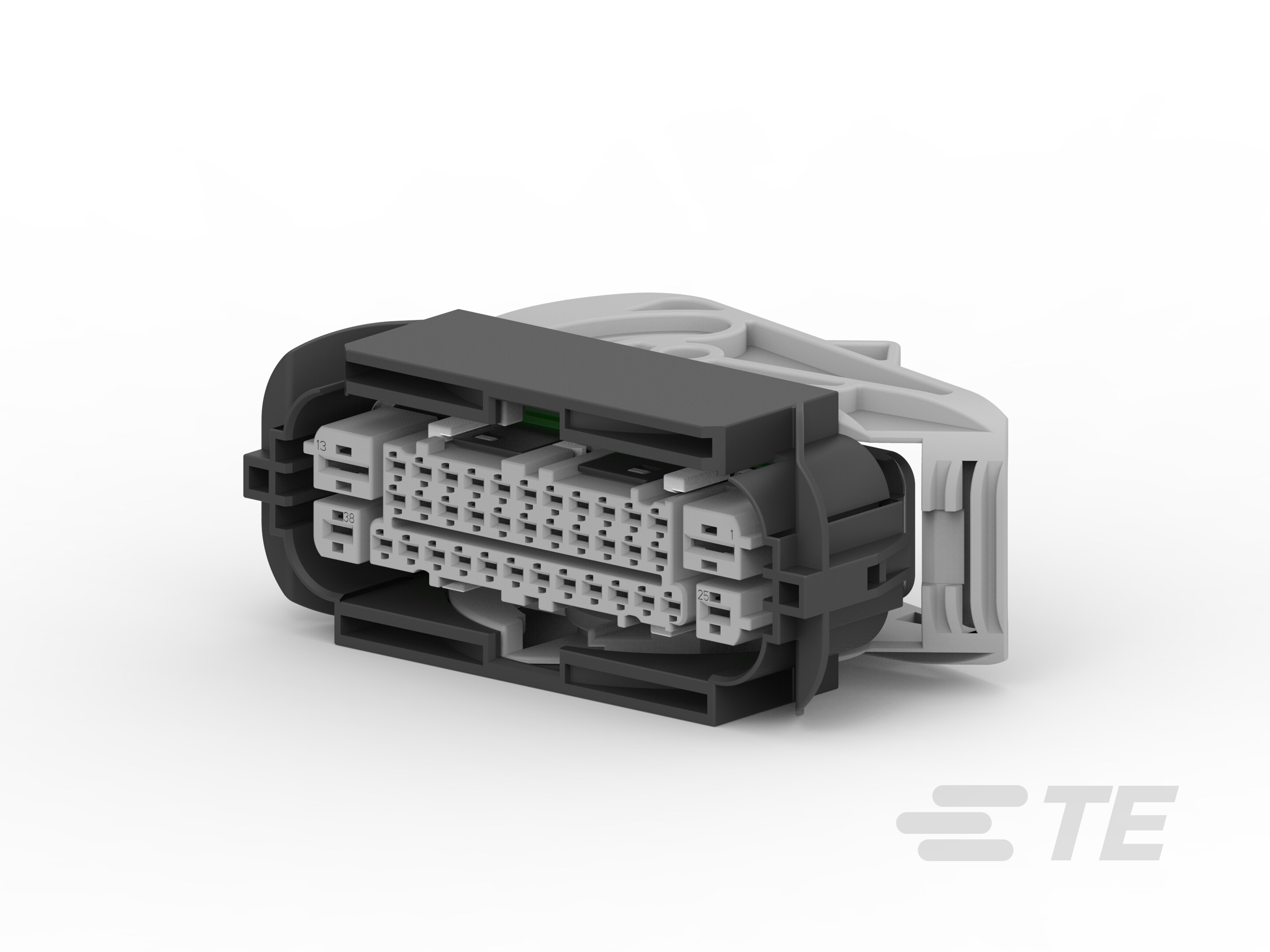

TE Connectivity AMP Connectors 1-2112499-1
TE Connectivity AMP Connectors 2112502-1	0.157 in	Latch Lock	38	Glass Filled Polybutylene Terephthalate (PBT)	3	Crimp	Female Socket	Housing for Female Insert	Gray	-40 °C	130 °C	Free Hanging (In-Line)			Connector Position Assurance (CPA) Terminal Position Assurance (TPA)	0.236 in

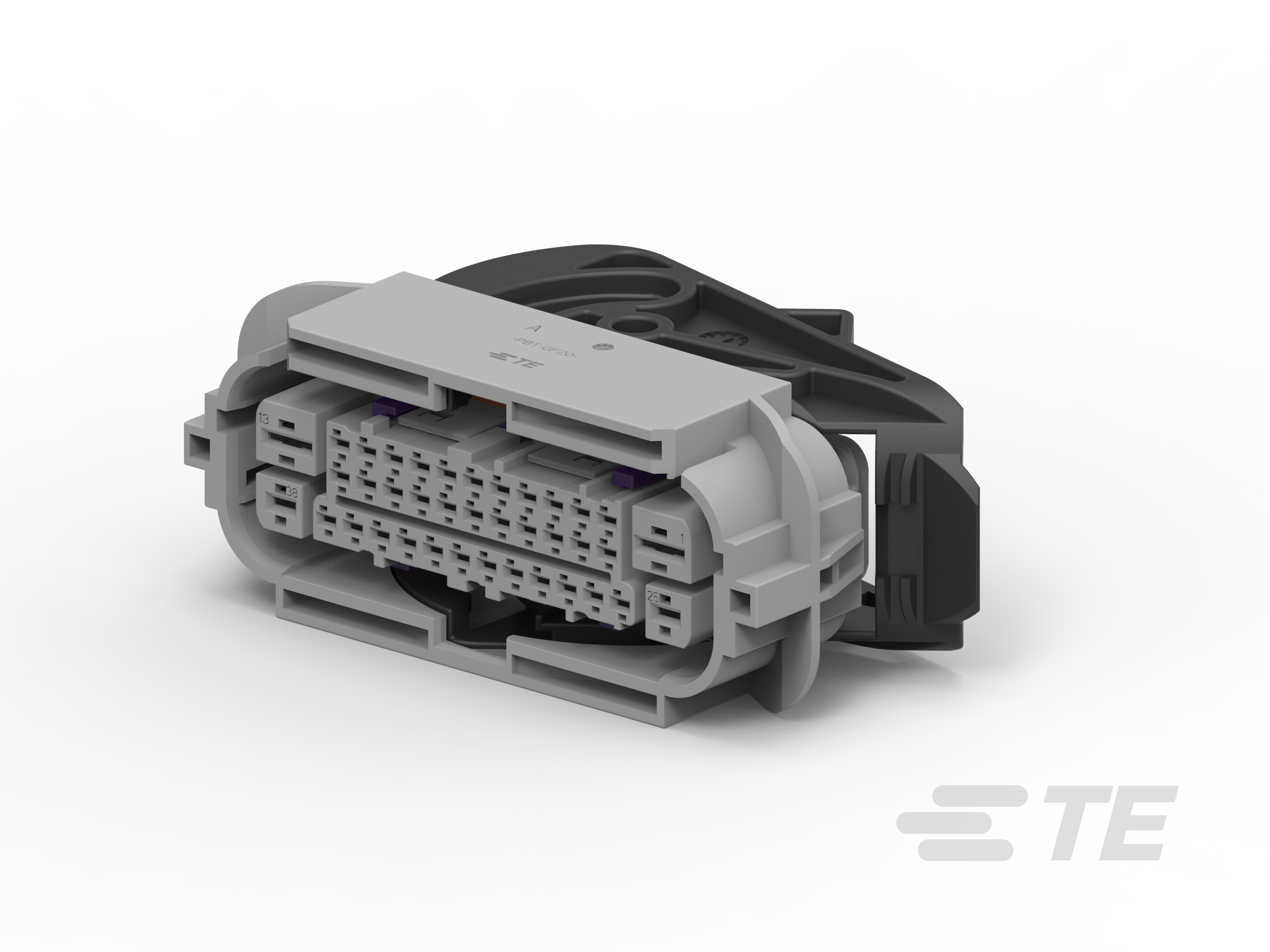

TE Connectivity AMP Connectors 2-2219210-1	0.157 in	Lever Lock	38	Glass Filled Polybutylene Terephthalate (PBT)	3	Crimp	Female Socket	Plug	Black	-40 °C	120 °C	Free Hanging (In-Line)			Terminal Position Lock (TPA)	0.157 in

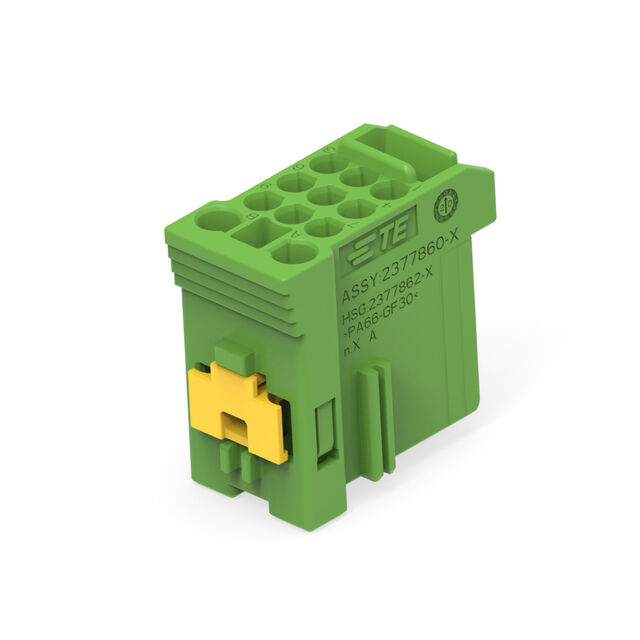

TE Connectivity AMP Connectors 2377860-3	0.157 in	Locking Ramp	11	Nylon 6/6 Polyamide (PA66)	4	Crimp	Female Socket	Plug	Green	-40 °C	105 °C	Free Hanging (In-Line)

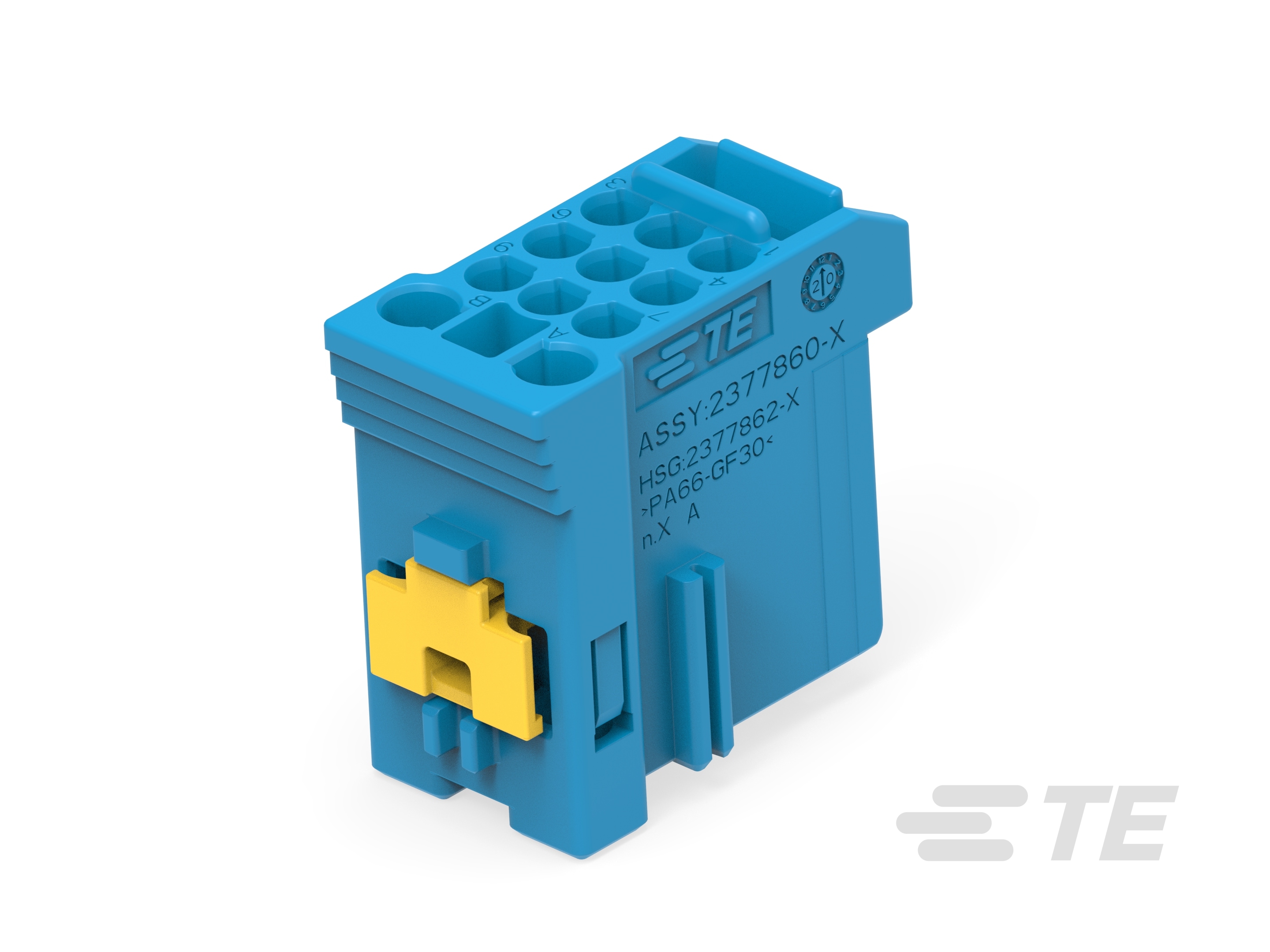

TE Connectivity AMP Connectors 2377860-4	0.157 in	Locking Ramp	11	Nylon 6/6 Polyamide (PA66)	4	Crimp	Female Socket	Plug	Blue	-40 °C	105 °C	Free Hanging (In-Line)

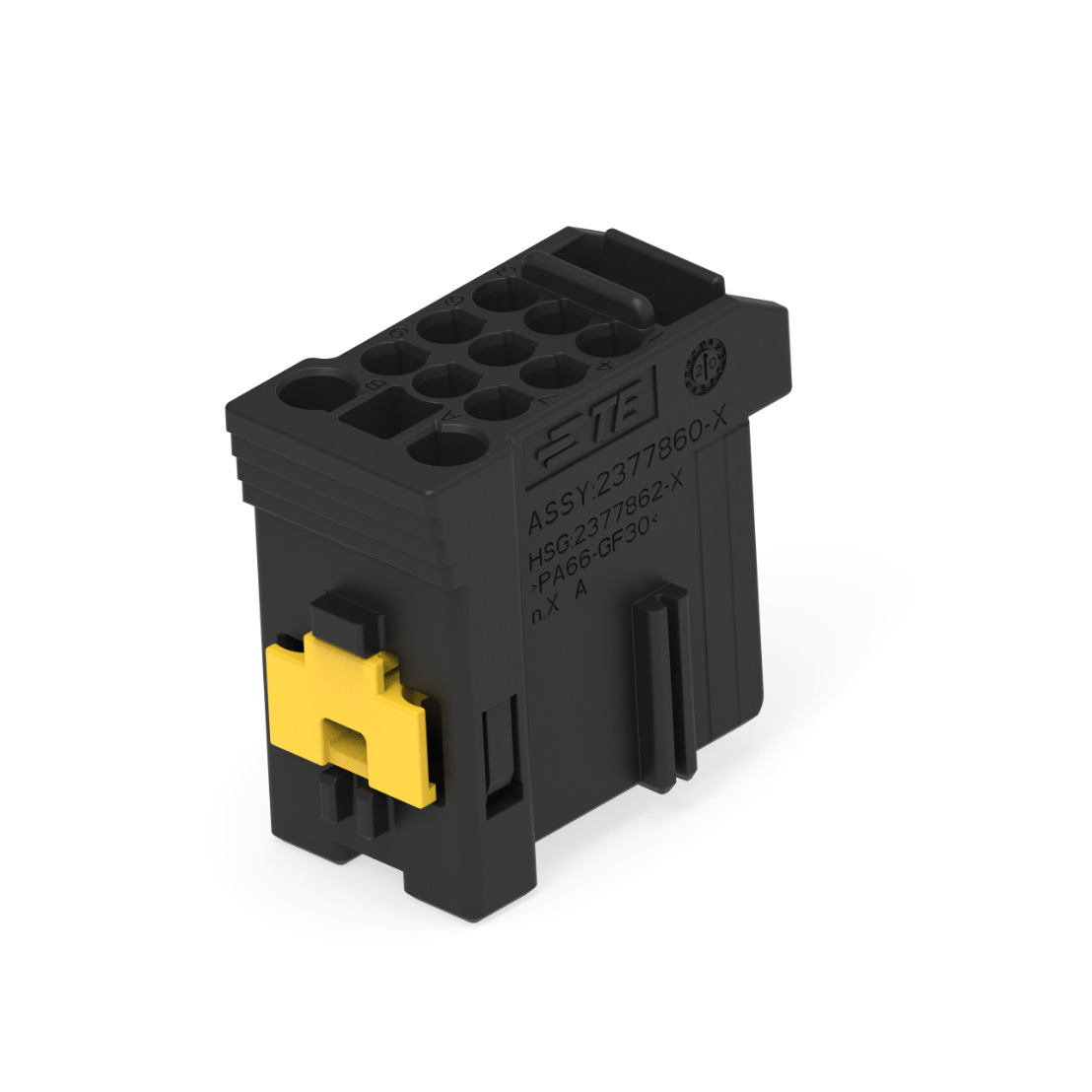

TE Connectivity AMP Connectors 2377860-1	0.157 in	Locking Ramp	11	Nylon 6/6 Polyamide (PA66)	4	Crimp	Female Socket	Plug	Black	-40 °C	105 °C	Free Hanging (In-Line)
TE Connectivity AMP Connectors 3-2219210-3
TE Connectivity AMP Connectors 1-2219215-2			38										Cap (Cover)	MCP Series
