5403FE 0081000

Active

Belden Inc.

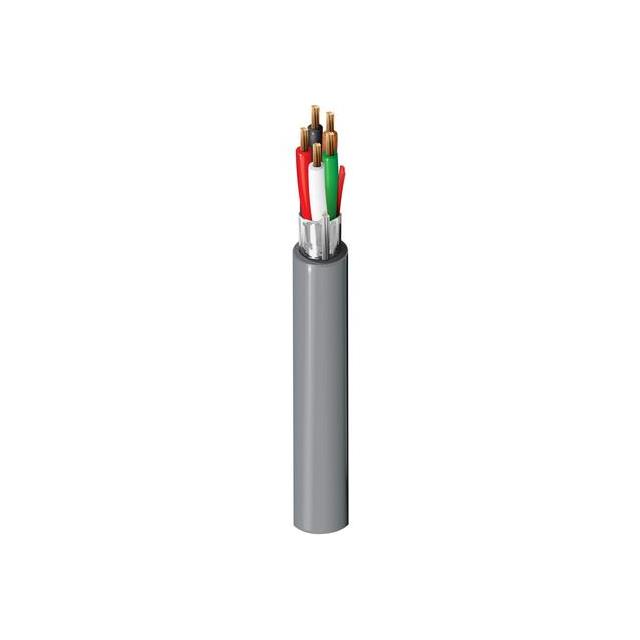

CABLE 5CON 20AWG GRAY SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 5CON 20AWG GRAY SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	5403FE 0081000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Features	Rip Cord
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	5
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Sound, Security, Alarm
Voltage	300 V
Wire Gauge	20 AWG

Part	Ratings	Jacket Color	Cable Type	Conductor Material	Shield Material	Features	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Length	Length	Wire Gauge	Usage	Conductor Insulation	Number of Conductors	Shield Coverage	Shield Type
Belden Inc. 5403FE 0081000	UL Style CMR	Gray	Multi-Conductor	Copper Bare	Aluminum	Rip Cord	0.432 mm	0.017 in	Poly-Vinyl Chloride (PVC) Riser	28	7	300 V	1000 ft	304.8 m	20 AWG	Alarm Security Sound	Polypropylene (PP)	5	100 %	Foil
Belden Inc. 5403FE 008U1000	UL Style CMR	Gray	Multi-Conductor	Copper Bare	Aluminum	Rip Cord	0.432 mm	0.017 in	Poly-Vinyl Chloride (PVC) Riser	28	7	300 V	1000 ft	304.8 m	20 AWG	Alarm Security Sound	Polypropylene (PP)	5	100 %	Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.38

General part information

5 Conductor Multi-Conductor Cable Gray 20 AWG Foil 1000.0' (304.8m)
