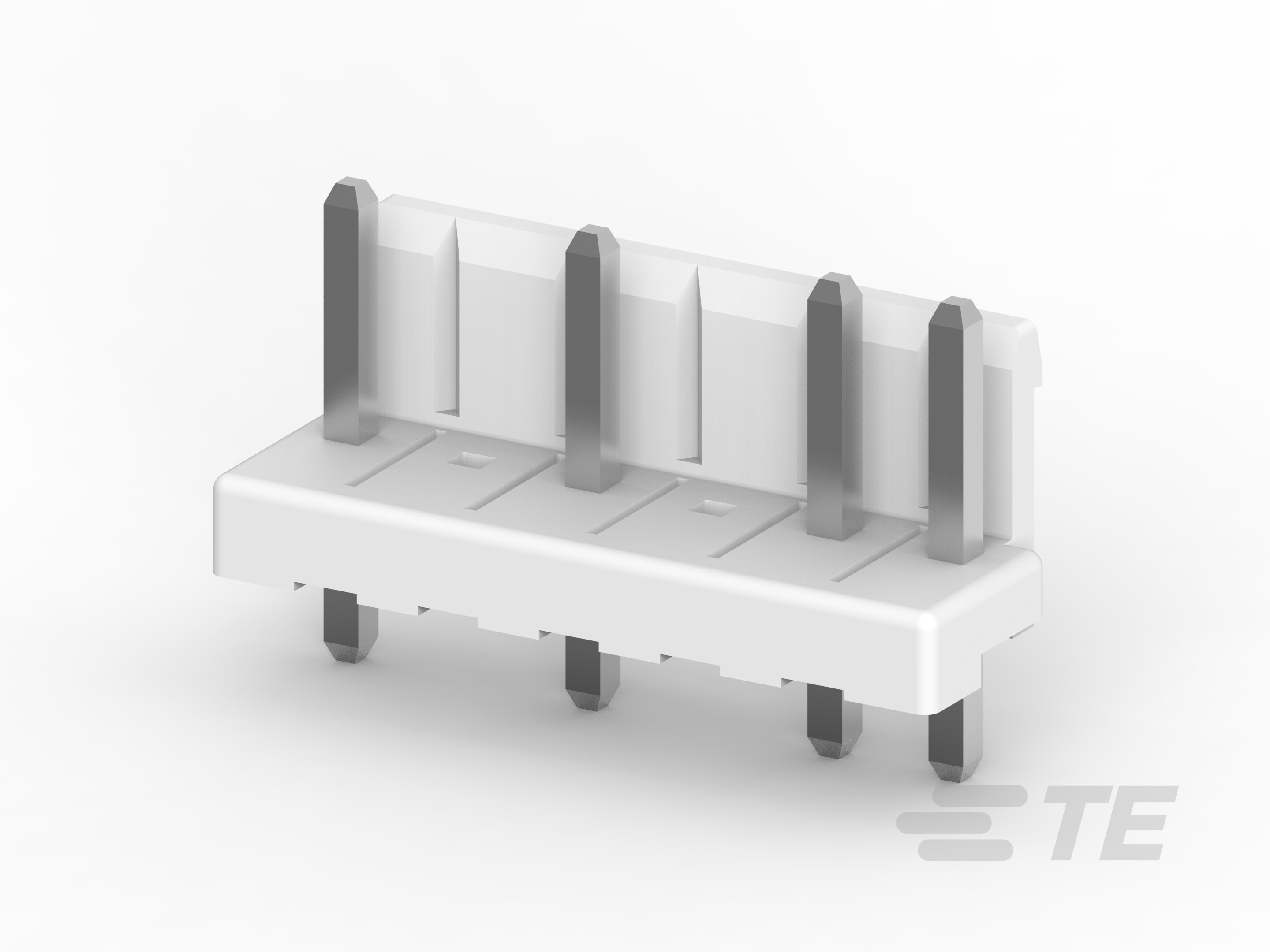

3.96 EP HDR ASSY 8P, NO PIN 2,4
2-2316952-8
ActiveTE Connectivity AMP Connectors
3.96 EP HDR ASSY 8P, NO PIN 2,4
Description
General part information
2316952 Series
PCB Mount Header, Vertical, Wire-to-Board, 8 Position, 3.96 mm [.156 in] Centerline, Partially Shrouded, Tin (Sn), Economy Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-2316952-8 |
|---|---|
| Applications | General Purpose |
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.303 in |
| Contact Length - Post | 0.146 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 8 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Natural |
| Insulation Height | 0.362 in |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 8 |
| Number of Positions Loaded | 6 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Contact Length | 0.567 in |
| Pitch - Mating | 0.156 in |
| Shrouding | Shrouded - 1 Wall |
| Style | Board, Board or Cable |
| Termination | Solder |
| Voltage Rating | 250 V |
