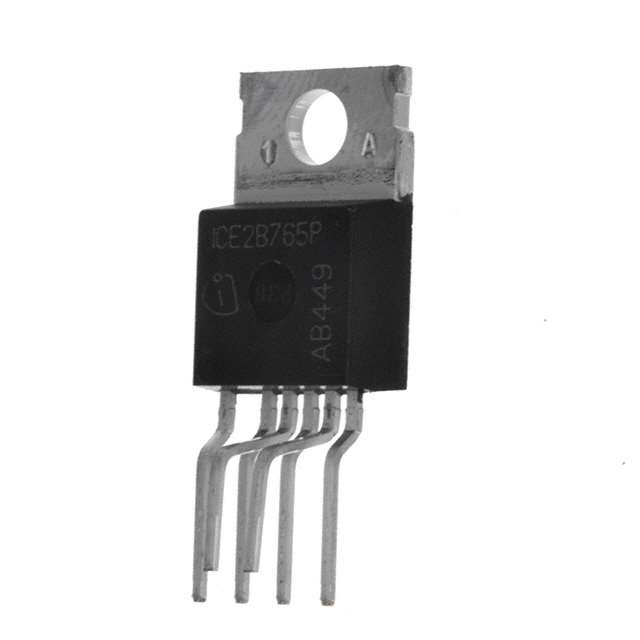

ICE2B765PCKSA1

Obsolete

Infineon Technologies

IC OFFLINE SW FLYBACK TO220-6

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC OFFLINE SW FLYBACK TO220-6

Technical Specifications

Parameters and characteristics for this part

Specification	ICE2B765PCKSA1

Control Features	Soft Start
Duty Cycle	72 %
Fault Protection	Over Load, Over Temperature, Current Limiting, Over Voltage, Open Loop
Frequency - Switching	67 kHz
Internal Switch(s)	True
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Isolation	Isolated
Package / Case	TO-220-6 Formed Leads
Power (Watts)	240 W
Supplier Device Package	PG-TO220-6-47
Topology	Flyback
Voltage - Breakdown	650 V
Voltage - Start Up	13.5 V
Voltage - Supply (Vcc/Vdd) [Max]	21 V
Voltage - Supply (Vcc/Vdd) [Min]	8.5 V

Part	Voltage - Start Up	Fault Protection	Frequency - Switching	Mounting Type	Package / Case	Output Isolation	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Topology	Internal Switch(s)	Voltage - Breakdown	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Control Features	Power (Watts)	Duty Cycle
Infineon Technologies ICE2B765PCKSA1	13.5 V	Current Limiting Open Loop Over Load Over Temperature Over Voltage	67 kHz	Through Hole	TO-220-6 Formed Leads	Isolated	21 V	8.5 V	Flyback		650 V	150 °C	-40 °C	PG-TO220-6-47	Soft Start	240 W	72 %
Infineon Technologies ICE2B765I	13.5 V	Current Limiting Open Loop Over Load Over Temperature Over Voltage	67 kHz	Through Hole	TO-220-6 Formed Leads	Isolated	21 V	8.5 V	Flyback		650 V	150 °C	-40 °C	PG-TO220-6-46	Soft Start	240 W	72 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Converter Offline Flyback Topology 67kHz PG-TO220-6-47
