Part	Shell Finish	Shell Material	Shielding	Shell Size - Insert	Material Flammability Rating	Number of Positions	Current Rating	Fastening Type	Cable Opening (Max)	Cable Opening (Min)	Orientation	Primary Material	Features	Connector Type	Ingress Protection	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Termination	Color	Contact Finish - Mating	Insert Material	Contact Material	Applications	Backshell Material, Plating	Accessory Type	For Use With/Related Products	Material
McGill Microwave Systems AX5M	Nickel	Zinc Die Cast	Unshielded	XLR	UL94 V-0	5	7.5 A	Latch Holder	0.315 in	0.118 in	Keyed	Metal	Backshell Cable Clamp	Male Pins Receptacle	IP40	-25 °C	75 °C	Free Hanging (In-Line)	Solder Cup	Silver	Silver	Glass Filled Nylon 6/6 PA66 Polyamide	Brass	Audio	Thermoplastic Thermoplastic Rubber
McGill Microwave Systems AX5MB	Black	Zinc Die Cast	Unshielded	XLR	UL94 V-0	5	7.5 A	Latch Holder	0.315 in	0.118 in	Keyed	Metal	Backshell Cable Clamp	Male Pins Receptacle	IP40	-25 °C	75 °C	Free Hanging (In-Line)	Solder Cup	Black	Silver
McGill Microwave Systems AX-BOOT-3																				Orange						Boot	AX Series Connectors

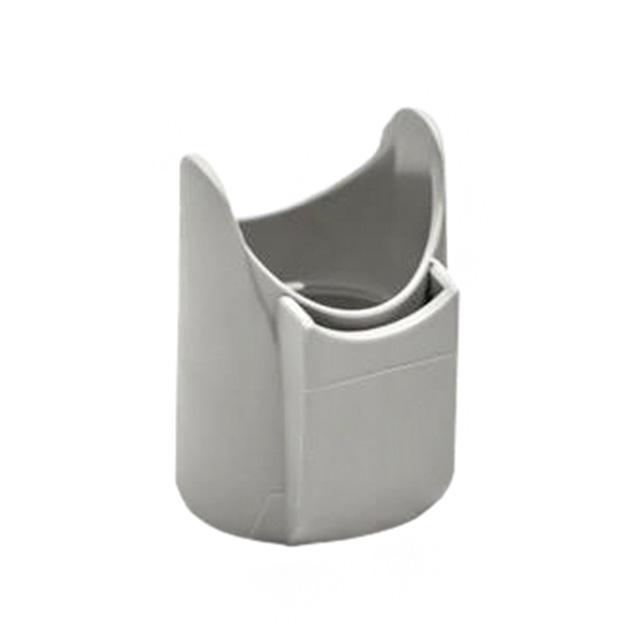

McGill Microwave Systems AX-MARK8																				Gray						Marking Sleeve	AX Series Connectors	Polyphenylene Ether (PPE) Polystyrene (PS)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
