Q-1U04T0005009i

Active

Amphenol Custom Cable

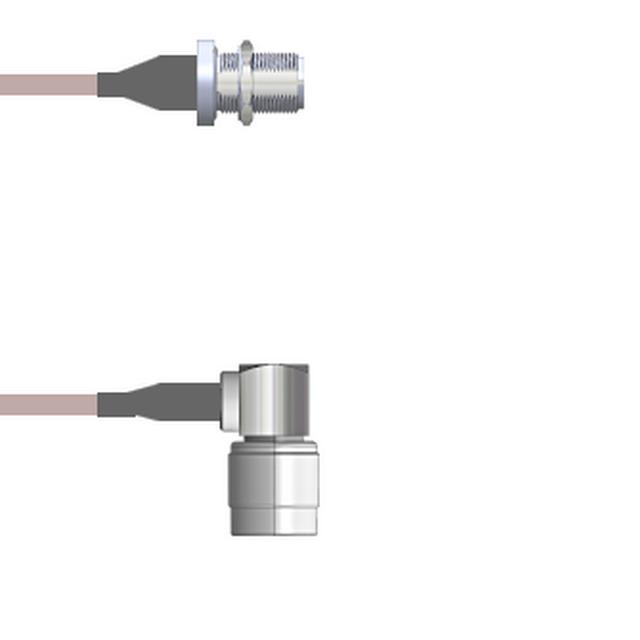

COAX CBL N-TYPE TO TNC 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1U04T0005009i

Active

Amphenol Custom Cable

COAX CBL N-TYPE TO TNC 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1U04T0005009i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms

Q-1U04T0 Series

Part	2nd Connector Mounting Type	1st Connector	2nd Contact Gender	1st Connector Mounting Feature	Features	1st Contact Gender	Color	Frequency - Max [Max]	Overall Impedance	Length [x]	Length [x]	1st Connector Mounting Type	Cable Type	2nd Connector	Length	Length	Length	Length [x]
Amphenol Custom Cable Q-1U04T0005.25M	Free Hanging (In-Line)	N-Type Jack	Male	Bulkhead - Front Side Nut	Shielded	Female	Copper	11 GHz	50 Ohms	9.843 "	250 mm	Panel Mount	RG-316	TNC Plug Right Angle
Amphenol Custom Cable Q-1U04T00032.5M	Free Hanging (In-Line)	N-Type Jack	Male	Bulkhead - Front Side Nut	Shielded	Female	Black	11 GHz	50 Ohms			Panel Mount	RG-174	TNC Plug Right Angle	8.2 '	98.4 in	2.5 m
Amphenol Custom Cable Q-1U04T0005003M	Free Hanging (In-Line)	N-Type Jack	Male	Bulkhead - Front Side Nut	Shielded	Female	Copper	11 GHz	50 Ohms			Panel Mount	RG-316	TNC Plug Right Angle	9.8 '	118.1 in	3 m
Amphenol Custom Cable Q-1U04T0003018i	Free Hanging (In-Line)	N-Type Jack	Male	Bulkhead - Front Side Nut	Shielded	Female	Black	11 GHz	50 Ohms		457.2 mm	Panel Mount	RG-174	TNC Plug Right Angle				457.2 mm
Amphenol Custom Cable Q-1U04T0005072i	Free Hanging (In-Line)	N-Type Jack	Male	Bulkhead - Front Side Nut	Shielded	Female	Copper	11 GHz	50 Ohms			Panel Mount	RG-316	TNC Plug Right Angle	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-1U04T0003072i	Free Hanging (In-Line)	N-Type Jack	Male	Bulkhead - Front Side Nut	Shielded	Female	Black	11 GHz	50 Ohms			Panel Mount	RG-174	TNC Plug Right Angle	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-1U04T0005009i	Free Hanging (In-Line)	N-Type Jack	Male	Bulkhead - Front Side Nut	Shielded	Female	Copper	11 GHz	50 Ohms			Panel Mount	RG-316	TNC Plug Right Angle		9 "	228.6 mm
Amphenol Custom Cable Q-1U04T0003003M	Free Hanging (In-Line)	N-Type Jack	Male	Bulkhead - Front Side Nut	Shielded	Female	Black	11 GHz	50 Ohms			Panel Mount	RG-174	TNC Plug Right Angle	9.8 '	118.1 in	3 m
Amphenol Custom Cable Q-1U04T0003001M	Free Hanging (In-Line)	N-Type Jack	Male	Bulkhead - Front Side Nut	Shielded	Female	Black	11 GHz	50 Ohms			Panel Mount	RG-174	TNC Plug Right Angle	3.3 ft	39.4 in	1 m
Amphenol Custom Cable Q-1U04T0003060i	Free Hanging (In-Line)	N-Type Jack	Male	Bulkhead - Front Side Nut	Shielded	Female	Black	11 GHz	50 Ohms			Panel Mount	RG-174	TNC Plug Right Angle	5 ft	5 '	1.5 m

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 100.86
		25	$ 98.95
		50	$ 97.04
		100	$ 95.13
		250	$ 93.22

Description

General part information

Q-1U04T0 Series

Cable Assembly Coaxial N-Type to TNC RG-316 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
