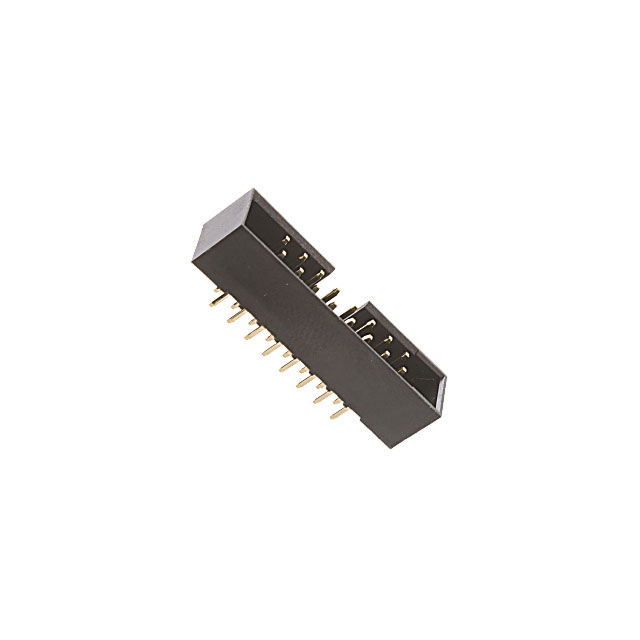

Specification	2BHR-16-VUA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Post (string_set)	Flash
Contact Length - Post	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.22 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

2BHR Series

Part	Contact Finish Thickness - Mating	Contact Length - Post	Number of Positions	Termination	Insulation Material	Row Spacing - Mating	Contact Finish - Post	Material Flammability Rating	Current Rating	Contact Material	Shrouding	Contact Type	Voltage Rating	Pitch - Mating	Insulation Height	Features	Style	Insulation Color	Operating Temperature (Min)	Operating Temperature (Max)	Fastening Type	Contact Shape	Contact Finish - Mating	Number of Positions Loaded	Connector Type	Number of Rows	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)
Adam Tech 2BHR-40-VUA	Flash	0.11 in	40	Solder	Glass Filled Polybutylene Terephthalate (PBT)	0.079 in	Gold	UL94 V-0	1 A	Brass	Shrouded - 4 Wall	Male Pin	250 V	0.079 in	0.22 in	Keying Slot	Board Cable/Wire	Black	-40 °C	105 °C	Push-Pull	Square	Gold	All	Header	2	Through Hole	Flash	Flash
Adam Tech 2BHR-26-VUA-SMT	Flash		26	Solder	Nylon 6T Polyamide (PA6T)	0.079 in	Gold	UL94 V-0	1 A	Brass	Shrouded - 4 Wall	Male Pin	250 V	0.079 in	0.238 in	Keying Slot	Board Cable/Wire	Black	-40 °C	105 °C	Push-Pull	Square	Gold	All	Header	2	Surface Mount	Flash	Flash
Adam Tech 2BHR-08-HUA	Flash	0.11 in	8	Solder	Glass Filled Polybutylene Terephthalate (PBT)	0.079 in	Gold	UL94 V-0	1 A	Brass	Shrouded - 4 Wall	Male Pin	250 V	0.079 in	0.22 in	Keying Slot	Board Cable/Wire	Black	-55 °C	105 °C	Push-Pull	Square	Gold	All	Header	2	Right Angle Through Hole
Adam Tech 2BHR-16-VUA	Flash	0.11 in	16	Solder	Glass Filled Polybutylene Terephthalate (PBT)	0.079 in	Gold	UL94 V-0	1 A	Brass	Shrouded - 4 Wall	Male Pin	250 V	0.079 in	0.22 in	Keying Slot	Board Cable/Wire	Black	-40 °C	105 °C	Push-Pull	Square	Gold	All	Header	2	Through Hole	Flash	Flash
Adam Tech 2BHR-10-VUA-SMT	Flash		10	Solder	Nylon 6T Polyamide (PA6T)	0.079 in	Gold	UL94 V-0	1 A	Brass	Shrouded - 4 Wall	Male Pin	250 V	0.079 in	0.238 in	Keying Slot	Board Cable/Wire	Black	-40 °C	105 °C	Push-Pull	Square	Gold	All	Header	2	Surface Mount
Adam Tech 2BHR-08-VUA-SMT	Flash		8	Solder	Nylon 6T Polyamide (PA6T)	0.079 in	Gold	UL94 V-0	1 A	Brass	Shrouded - 4 Wall	Male Pin	250 V	0.079 in	0.238 in	Keying Slot	Board Cable/Wire	Black	-40 °C	105 °C	Push-Pull	Square	Gold	All	Header	2	Surface Mount	Flash	Flash
Adam Tech 2BHR-14-HUA	Flash	0.11 in	14	Solder	Glass Filled Polybutylene Terephthalate (PBT)	0.079 in	Gold	UL94 V-0	1 A	Brass	Shrouded - 4 Wall	Male Pin	250 V	0.079 in	0.22 in	Keying Slot	Board Cable/Wire	Black	-55 °C	105 °C	Push-Pull	Square	Gold	All	Header	2	Right Angle Through Hole	Flash	Flash
Adam Tech 2BHR-10-HUA	Flash	0.11 in	10	Solder	Glass Filled Polybutylene Terephthalate (PBT)	0.079 in	Gold	UL94 V-0	1 A	Brass	Shrouded - 4 Wall	Male Pin	250 V	0.079 in	0.22 in	Keying Slot	Board Cable/Wire	Black	-55 °C	105 °C	Push-Pull	Square	Gold	All	Header	2	Right Angle Through Hole	Flash	Flash
Adam Tech 2BHR-24-VUA-SMT	Flash		24 pos	Solder	Nylon 6T Polyamide (PA6T)	0.079 in	Gold	UL94 V-0	1 A	Brass	Shrouded - 4 Wall	Male Pin	250 V	0.079 in	0.238 in	Keying Slot	Board Cable/Wire	Black	-40 °C	105 °C	Push-Pull	Square	Gold	All	Header	2	Surface Mount	Flash	Flash
Adam Tech 2BHR-34-HUA	Flash	0.11 in	34	Solder	Glass Filled Polybutylene Terephthalate (PBT)	0.079 in	Gold	UL94 V-0	1 A	Brass	Shrouded - 4 Wall	Male Pin	250 V	0.079 in	0.22 in	Keying Slot	Board Cable/Wire	Black	-55 °C	105 °C	Push-Pull	Square	Gold	All	Header	2	Right Angle Through Hole	Flash	Flash
